Transmission Harness: Installation

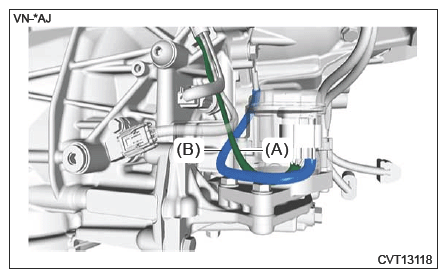

CAUTION: Pass the electric oil pump ground wire under the electric oil pump signal line.

Courtesy of SUBARU OF AMERICA, INC.

(A)	Electric oil pump signal line
(B)	Electric oil pump ground wire

NOTE: Let the ground terminal come into contact with the stopper (a) and tighten the bolt.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

13 N.m (1.3 kgf-m, 9.6 ft-lb)

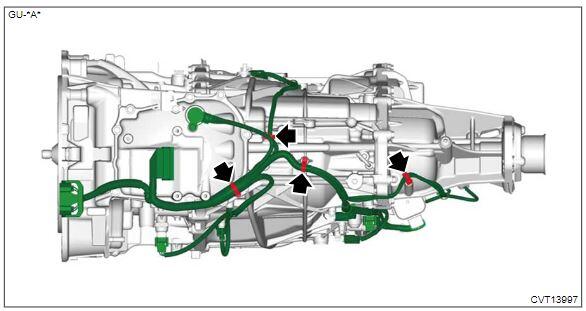

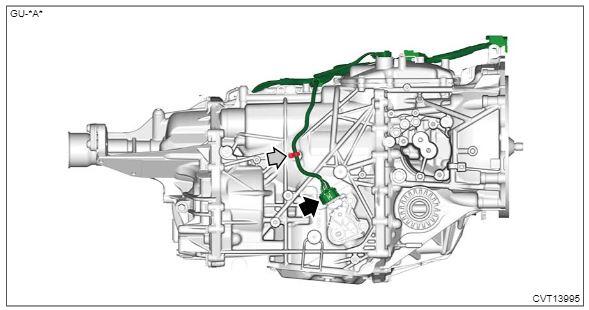

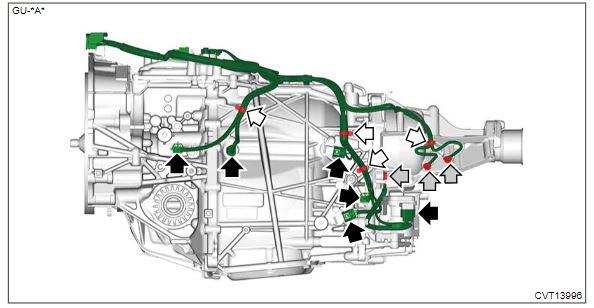

• Except for WILDERNESS model

  Courtesy of SUBARU OF AMERICA, INC.

  Courtesy of SUBARU OF AMERICA, INC.

  Courtesy of SUBARU OF AMERICA, INC.

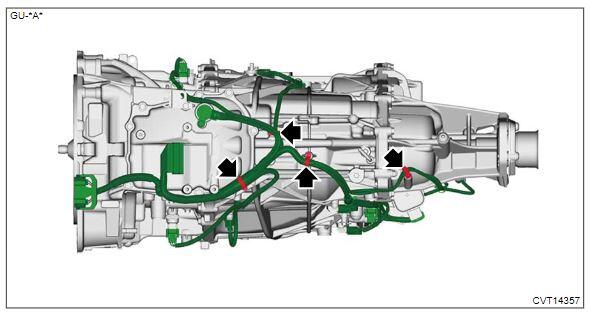

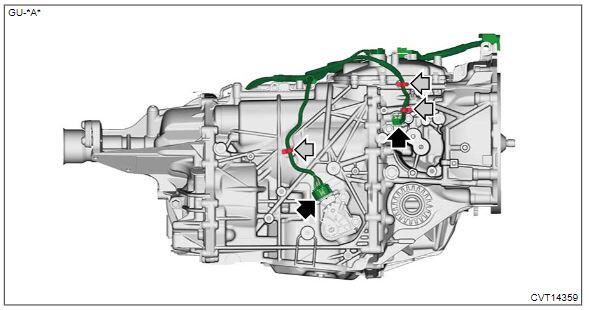

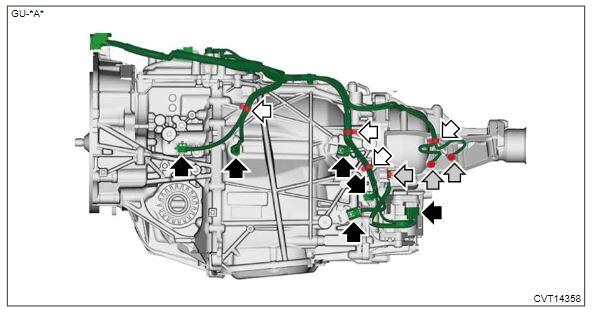

• WILDERNESS model

  Courtesy of SUBARU OF AMERICA, INC.

  Courtesy of SUBARU OF AMERICA, INC.

  Courtesy of SUBARU OF AMERICA, INC.
