Fuel Sub Level Sensor Side

  1. Install the fuel sub level sensor to the fuel sub level sensor case.

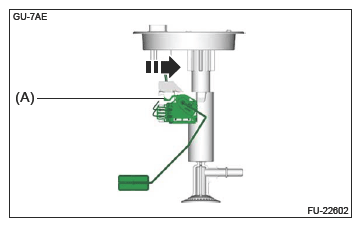

    1. Install the fuel sub level sensor and confirm that the claw (A) is locked securely.
      G16760728Courtesy of SUBARU OF AMERICA, INC.
    2. Connect the fuel sub level sensor harness to the clip.
    3. Connect the connector (A).
    G16760724Courtesy of SUBARU OF AMERICA, INC.
  2. Install the fuel sub level sensor. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL SUB LEVEL SENSOR>INSTALLATION .
