Fuel Filler Pipe: Assembly

Assemble the fuel filler pipe using a new drain filter and a new sub drain filter. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>GENERAL DESCRIPTION>COMPONENT>FUEL FILLER PIPE .

NOTE:

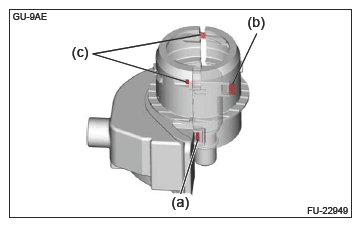

When assembling the sub drain filter to the drain filter, assemble in the order of claw (a), claw (b), and claw (c) .

Courtesy of SUBARU OF AMERICA, INC.

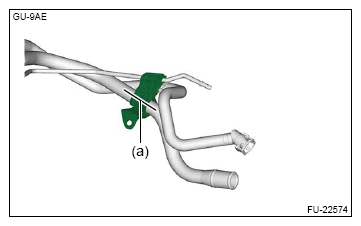

Install the fuel filler pipe bracket to the fuel filler pipe by aligning the alignment marks (a) .
