Home >> Subaru >> 2024 >> Impreza Base >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel Injection System >> Manifold Absolute Pressure Sensor >> Removal

Manifold Absolute Pressure Sensor: Removal

NOTE: Components: Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>GENERAL DESCRIPTION>COMPONENT>INTAKE MANIFOLD ASSEMBLY .
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

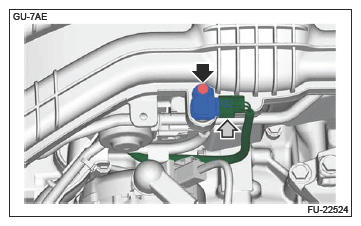

  2. Disconnect the connector and remove the manifold absolute pressure sensor.
    G16760614Courtesy of SUBARU OF AMERICA, INC.
