Home >> Subaru >> 2024 >> Outback Wilderness >> Repair and Diagnosis (Single Page) >> Transmission >> Automatic Trans >> CVT Transaxle System (Tr690) >> General Description >> Components With Torque Specifications >> Transmission Control Module

Transmission Control Module

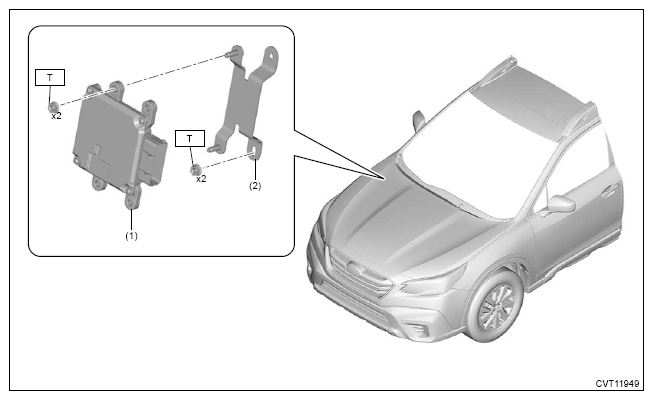

G16389313

Courtesy of SUBARU OF AMERICA, INC.

(1)	Transmission control module (TCM)
(2)	TCM bracket

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
