Control Module

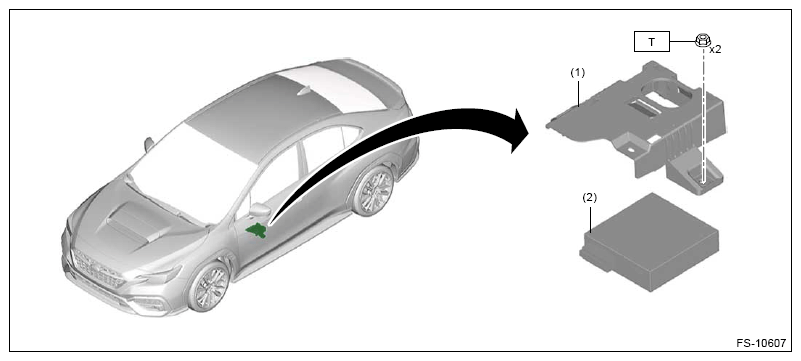

Fig 1: Control Module Components Location
G16538506Courtesy of SUBARU OF AMERICA, INC.
(1) Bracket damper control module
(2) Damper control module

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
