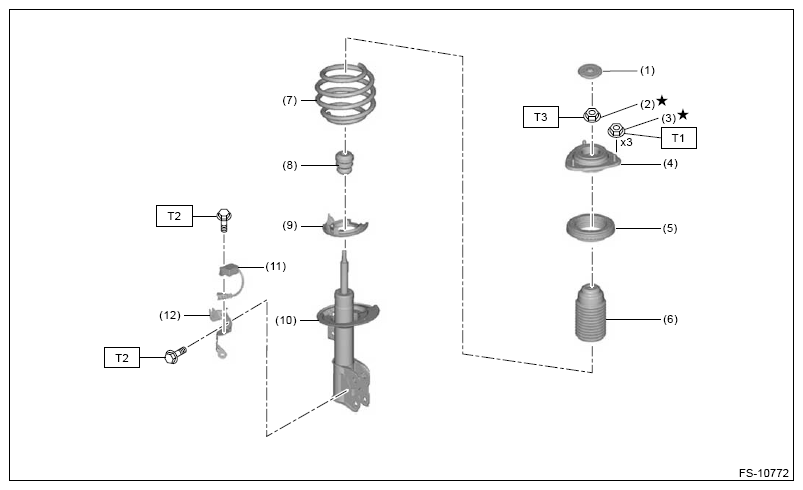

Electronically-Controlled Damper Model
| (1) | Dust seal |
| (2) | Self-locking nut |
| (3) | Flange nut |
| (4) | Mount strut front |
| (5) | Mount bearing front |
| (6) | Dust cover front |
| (7) | Coil spring front |
| (8) | Helper front |
| (9) | Rubber seat LWR |
| (10) | Strut COMPL front |
| (11) | G sensor |
| (12) | Harness bracket |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 32 (3.3, 23.6)
T2: 33 (3.4, 24.3)
T3: 55 (5.6, 40.6)
