Stabilizer Bushing

CAUTION:

Install the rubber bushing stabilizer front so that the slit does not shift to the right or left.

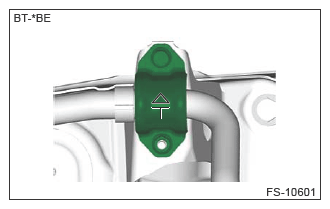

Install the clamp stabilizer with the peak of triangle facing the front of the vehicle.

Courtesy of SUBARU OF AMERICA, INC.

NOTE: The rubber bushing stabilizer front can be used with its slit facing either front or rear.

Before installation, check the rubber bushing stabilizer front for abnormal cracks, fatigue or damage.
Install the rubber bushing stabilizer front.
Install the clamp stabilizer.
Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)
Install the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>INSTALLATION .
