Suspension Control Module: Removal

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Prior to starting work, check "Precautions" in the "SEATS" article. Ref. to SEATS>GENERAL DESCRIPTION>CAUTION .
  2. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  3. Remove the front seat LH. Ref. to SEATS>FRONT SEAT>REMOVAL .
  4. Remove the damper control module.

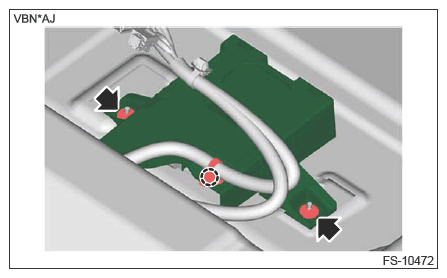

    1. Remove the nut and harness clip.
      G14601773Courtesy of SUBARU OF AMERICA, INC.

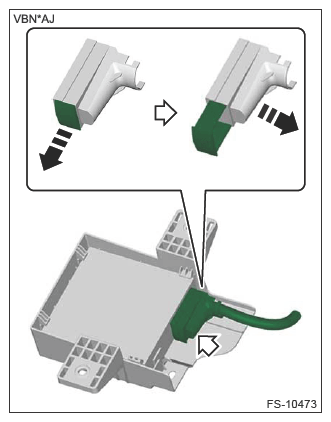

    2. Disconnect the connector and remove the damper control module.
    G14601774Courtesy of SUBARU OF AMERICA, INC.

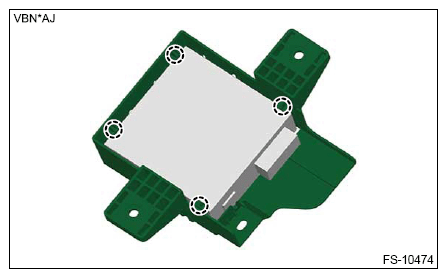

  5. Release the claws, and remove the bracket damper control module.
    G14601775Courtesy of SUBARU OF AMERICA, INC.
