Front Toe-In

CAUTION:

The engine must not be running when performing the adjustment.
When performing the front toe-in adjustment with the steering wheel fixed to the straight-ahead position, be sure to perform the work with the electric power steering assist ON.
The electric power steering assist is set to ON with the engine stopped, by turning ON the ignition switch within 5 seconds after the engine stops.

When adjusting the toe-in, adjust it to the following value.

Toe-in: Adjustment value

0±2 mm (0±0.08 in)

Check that the left and right wheel steering angles are within specification.
Loosen the tie-rod end lock nuts on the left and right sides.

Courtesy of SUBARU OF AMERICA, INC.
Turn the left and right tie-rods by equal amounts until the toe-in is at the specification.
NOTE:
- Both the left and right tie-rods are right-hand threaded. To increase toe-in, turn both tie-rods clockwise by equal amount (viewing from the inside of vehicle).

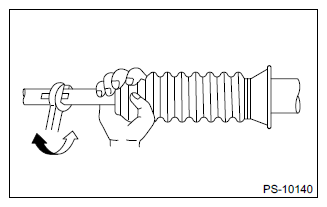

- When adjusting toe-in, hold the boot steering gearbox as shown to prevent it from being rotated or twisted. If it becomes twisted, straighten it.
Courtesy of SUBARU OF AMERICA, INC.
Tighten the tie-rod end lock nut.
Tightening torque:

85 N.m (8.7 kgf-m, 62.7 ft-lb)
