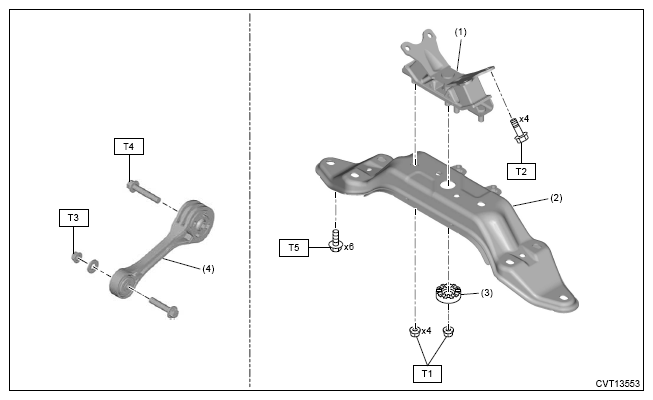

Transmission Mounting
Courtesy of SUBARU OF AMERICA, INC.
| (1) |
Rear cushion rubber |
| (2) |
Transmission rear crossmember |
| (3) |
Stopper |
| (4) |
Pitching stopper |
Tightening torque: N.m (kgf-m. ft-lb)
T1: 35 (3.6, 25.8)
T2: 40 (4.1, 29.5)
T3: 50 (5.1, 36.9)
T4: 58 (5.9, 42.8)
T5: 70 (7.1, 51.6)
