Components With Torque Specifications

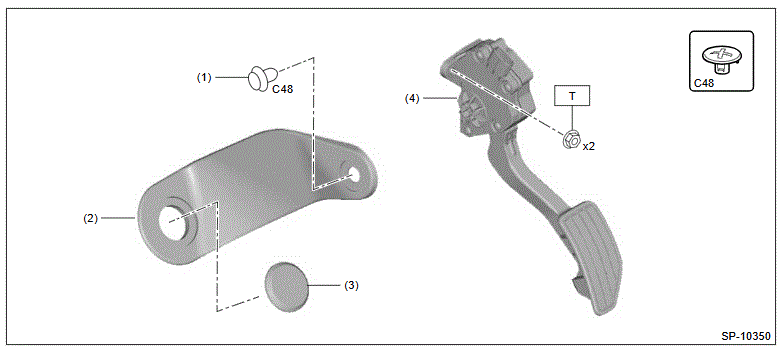

Fig 1: Speed Control System Components Location
G00659593Courtesy of SUBARU OF AMERICA, INC.
(1) Clip
(2) Accelerator plate
(3) Accelerator stopper
(4) Accelerator pedal ASSY

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
