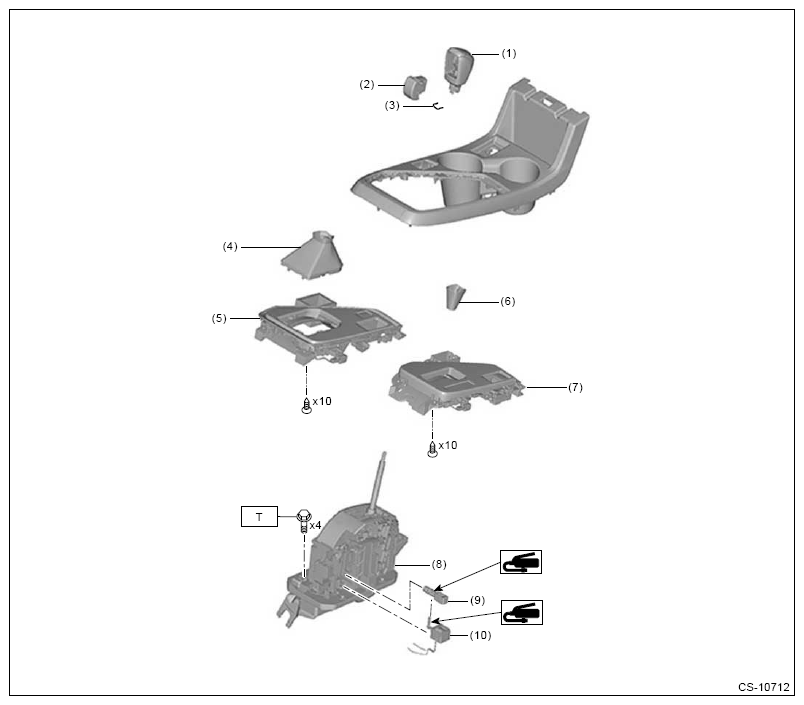

Select Lever
| (1) | Grip |
| (2) | Grip button |
| (3) | Clamp |
| (4) | Boot (model with boot shifter) |
| (5) | Indicator (model with boot shifter) |
| (6) | Cover grip AT (model with gate shifter) |
| (7) | Indicator (model with gate shifter) |
| (8) | Select lever |
| (9) | Shift lock |
| (10) | Shift lock solenoid |
Tightening torque: N.m (kgf-m, ft-lb)
T: 18 (1.8, 13.3)
