LH Side
NOTE:
Components: Ref. to IGNITION (H4DO)>GENERAL DESCRIPTION>COMPONENT .
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the battery. Ref. to STARTING/CHARGING SYSTEMS (H4DO)>BATTERY>REMOVAL .
- Disconnect connector (A) from ECM. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>ENGINE CONTROL MODULE (ECM)>REMOVAL .

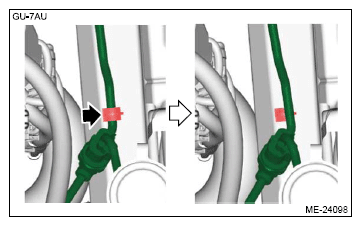

- Disconnect the connector (B) from the main fuse box, and remove the engine wiring harness from the clip (C).NOTE: When disconnecting the connector (B), pry the portion (a) shown in the figure to release the lock using a flat tip screwdriver or similar tool wrapped with protective tape, and move the lever in the direction of arrow.

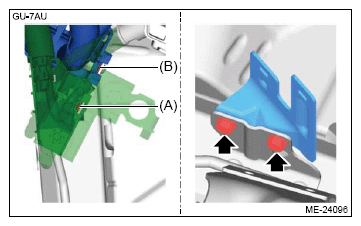

- Release the claw (A) securing the battery cable assembly to the bracket.
- Release the claw (B) securing the engine wiring harness to the bracket, and place it aside so that it does not interfere with work.
- Remove the bracket.
- Remove the bolts and the nuts which secure the CVTF cooler pipe No. 2. (Model with CVTF cooler (air cool))NOTE:
- This procedure is necessary to secure the operation space during installation/removal of the ignition coil.
- Use a socket with magnet (for preventing nut falling) to remove the nut through the gap of the front grille assembly.
- Remove the pipe evaporator cooling from the clip, and place it aside so that it does not interfere with the work.CAUTION: Do not apply excessive force to the pipe.NOTE: This procedure is necessary to secure the operation space during installation/removal of the ignition coil.

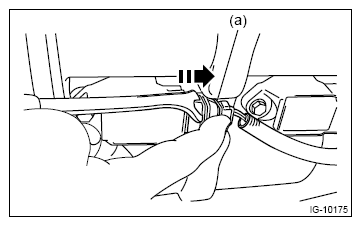

- Disconnect the connector (A) and remove the ignition coil.NOTE: To disconnect the connector, while pressing the spring (a), slide it in the direction of the arrow with a clip remover.
