RH Side
NOTE:
Components: Ref. to IGNITION (H4DO)>GENERAL DESCRIPTION>COMPONENT .
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the air cleaner case. Ref. to INTAKE (INDUCTION) (H4DO)>AIR CLEANER CASE>REMOVAL .

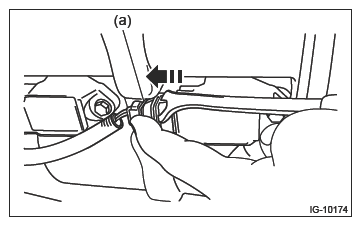

- Disconnect the connector (A) and remove the ignition coil.NOTE: To disconnect the connector, while pressing the spring (a), slide it in the direction of the arrow with a clip remover.
