Float Level

NOTE: Fuel level in float chamber should be within round mark at center of sight glass. If adjustment is required, use following procedure.

Remove and invert air horn. Measure distance between float and air horn without gasket. Float level should be .31" (7.9 mm). Adjust float level by bending tab on float. See Fig 1 .

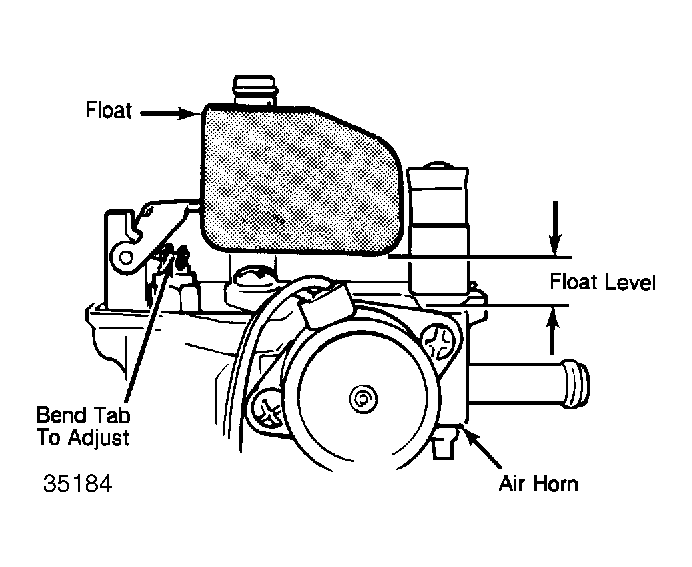

Fig 1: Adjusting Float Level

Courtesy of SUZUKI OF AMERICA CORP.

NOTE: Perform the following adjustments on cold engine.
