Idle-Up RPM
- Warm engine to normal operating temperature. Check that idle speed is set to specification. Individually operate headlights, heater fan, rear window defogger, and air conditioner.

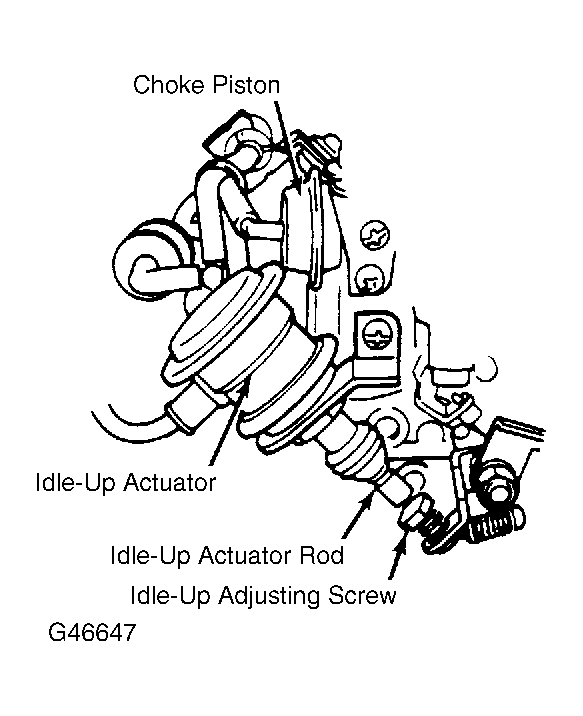

- Verify idle-up actuator rod is extended as each unit is turned on (indicating that idle-up mechanism is working). If idle-up RPM is incorrect, adjust by turning idle-up adjusting screw. See Fig 1 .
IDLE-UP RPM SPECIFICATIONS
| Application | Idle-UP RPM |
|---|---|
| Samurai | 900-1000 |
