Throttle Position Sensor

To inspect throttle position sensor and throttle switch, disconnect negative battery cable and TPS connector. Using an ohmmeter, check continuity with selected thickness gauges between throttle stop screw and stop lever as indicated. See the THROTTLE POSITION SENSOR RESISTANCE table. See Fig 1 . If adjustment is required, see ADJUSTMENTS article in this section.

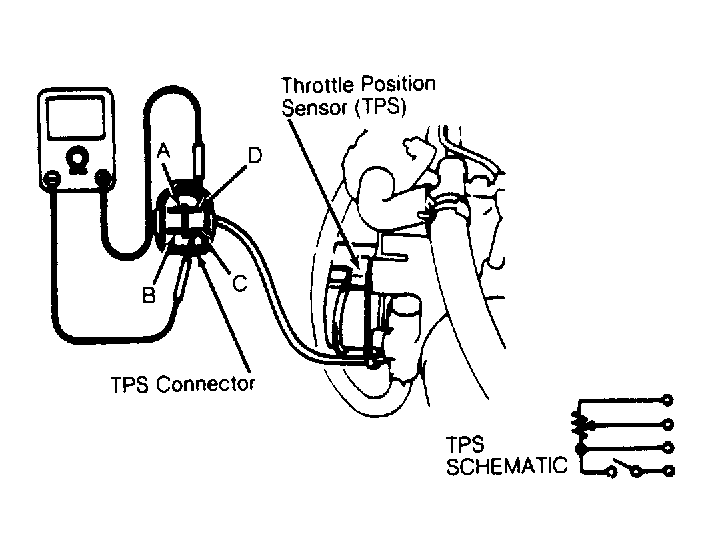

Fig 1: Throttle Position Sensor Terminal Identification

Courtesy of SUZUKI OF AMERICA CORP.

THROTTLE POSITION SENSOR RESISTANCE

Application

Ohms

Between Terminals C-D

.012" (.3 mm) ⁽¹⁾

0-500

.035" (.9 mm) ⁽¹⁾

Infinite

Between Terminals A-C

3500-6500

Between Terminals B-C

At Idle

0-2000

Wide Open Throttle

3500-6500

⁽¹⁾	Selected thickness gauge between throttle stop screw and stop lever.
