Code 13 - Oxygen Sensor Circuit

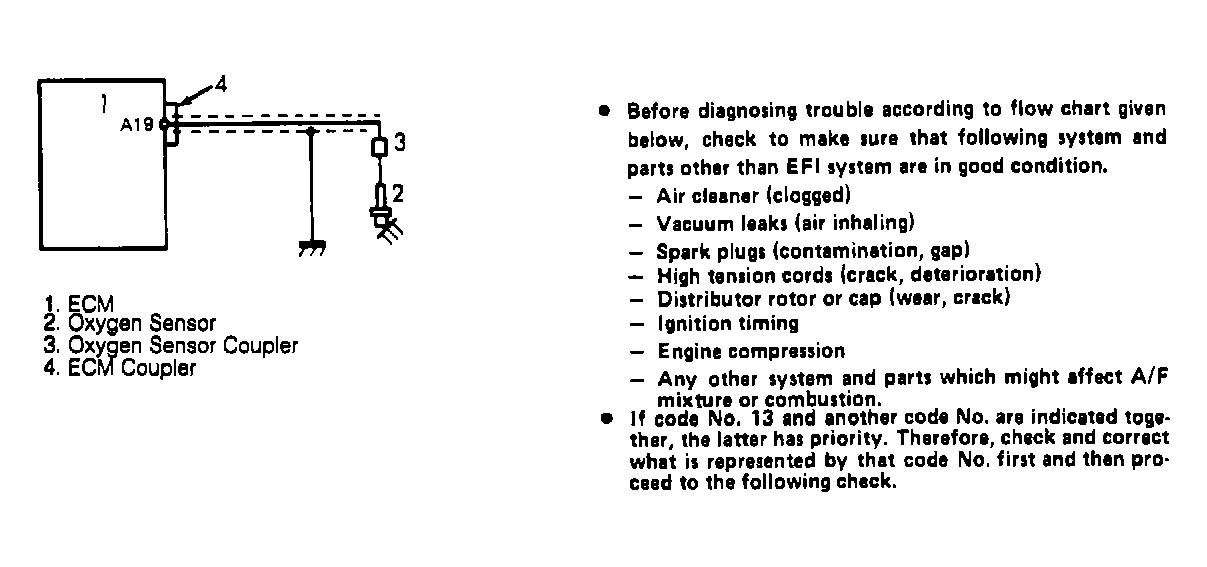

Fig 1: Code 13 Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.

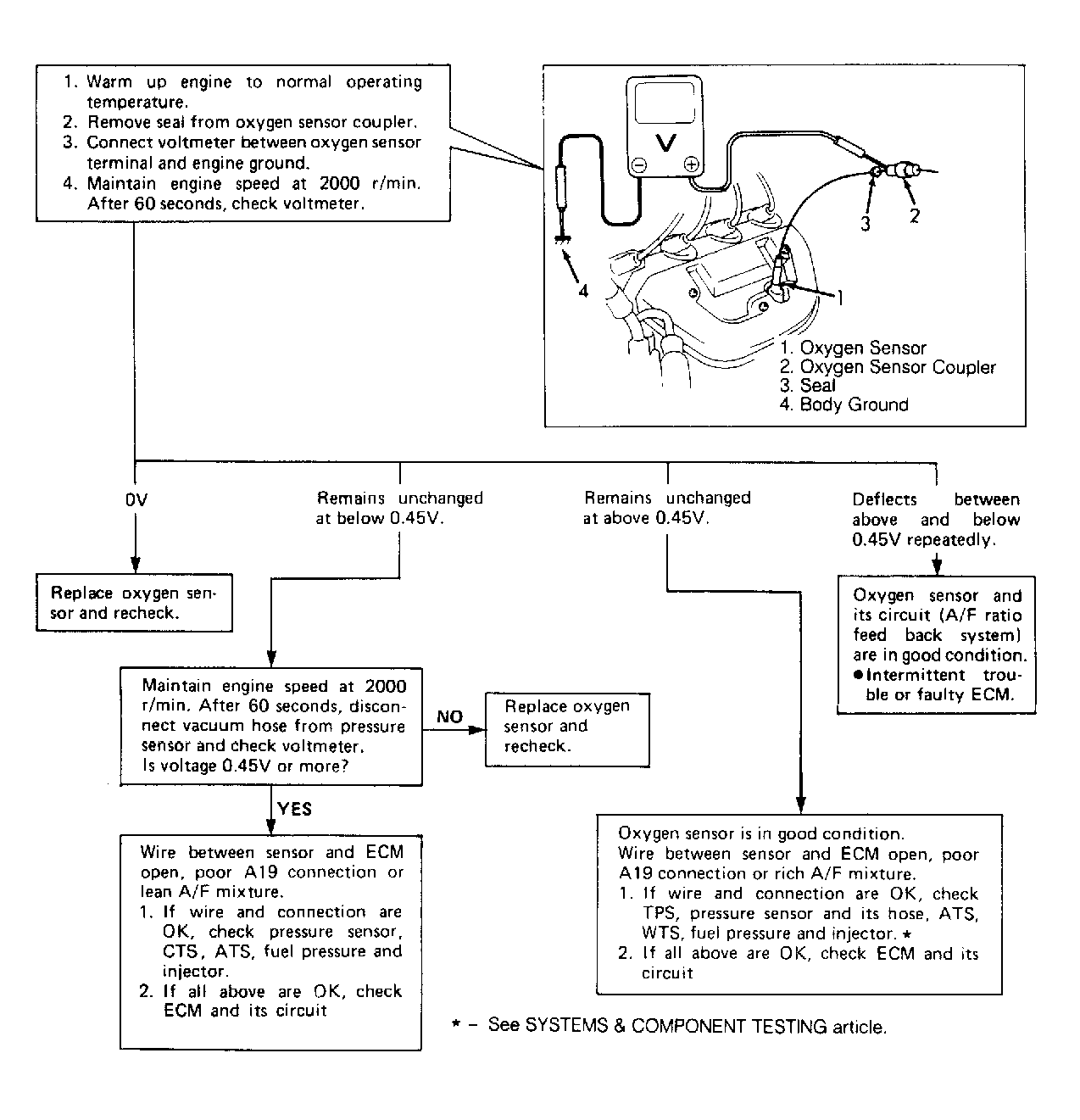

Fig 2: Code 13 Flow Chart
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
