Code 22 - Throttle Position Sensor Circuit Indication Low

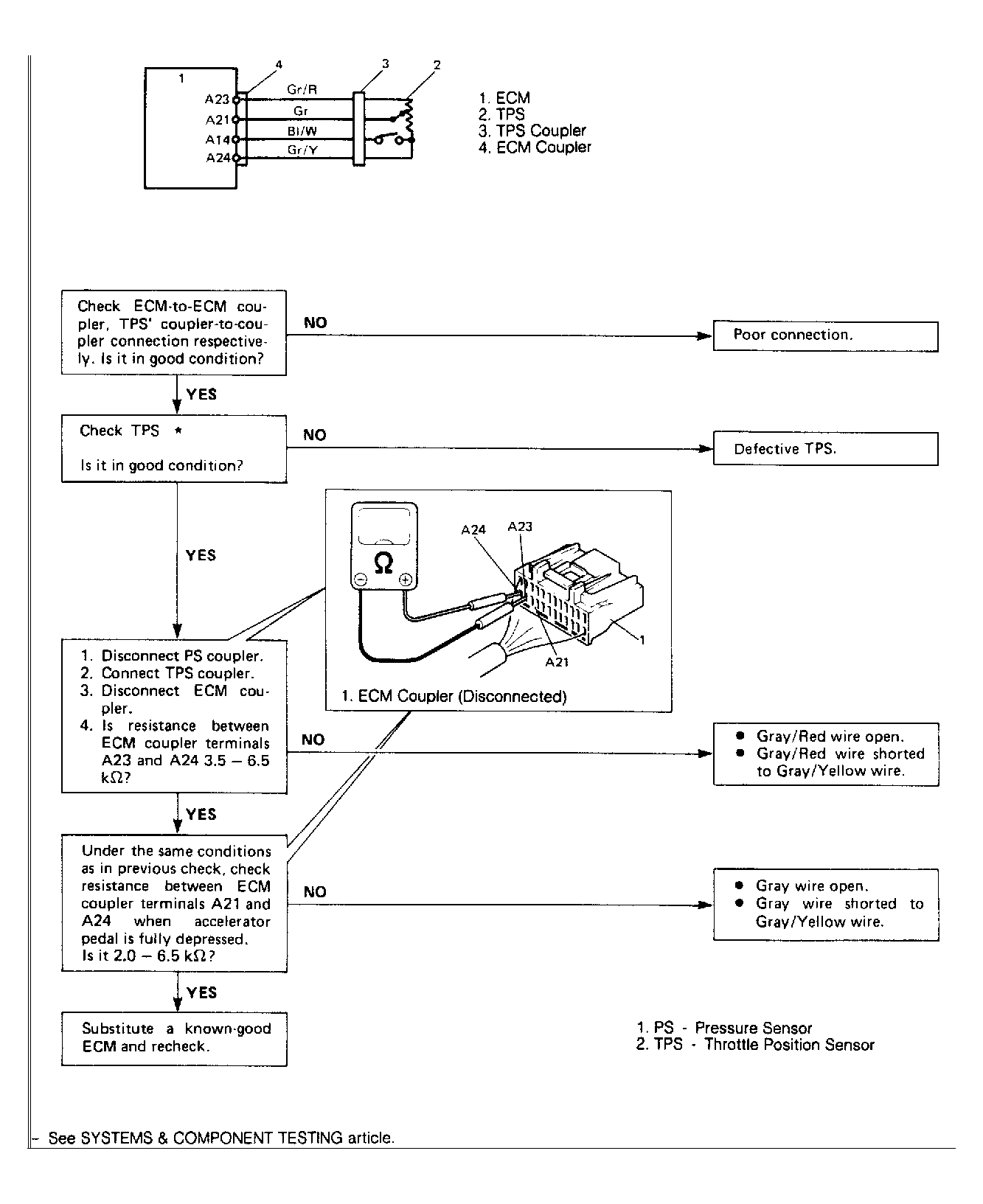

Fig 1: Code 22 Circuit Diagram & Flow Chart
G119595Courtesy of SUZUKI OF AMERICA CORP.
