Control Units

CONTROL UNITS LOCATION

Component Location

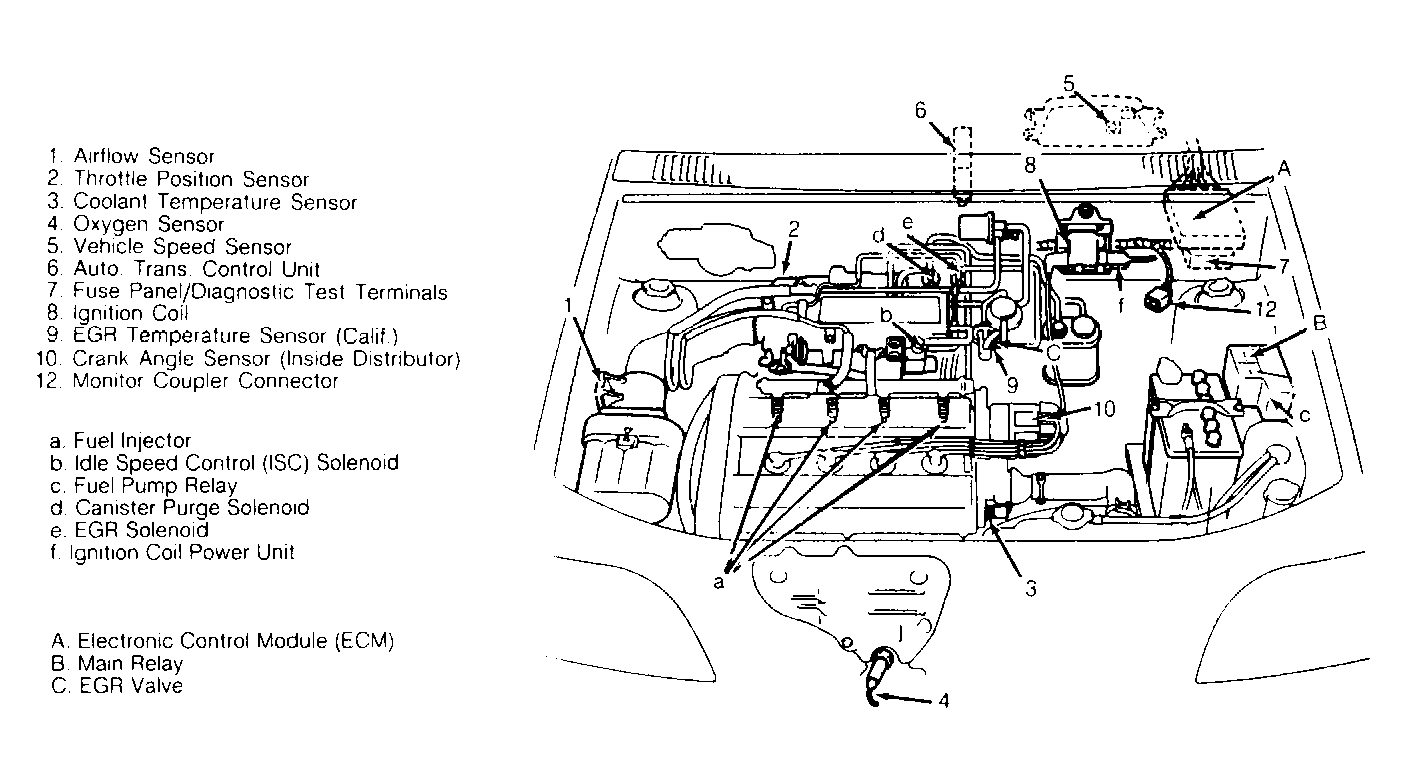

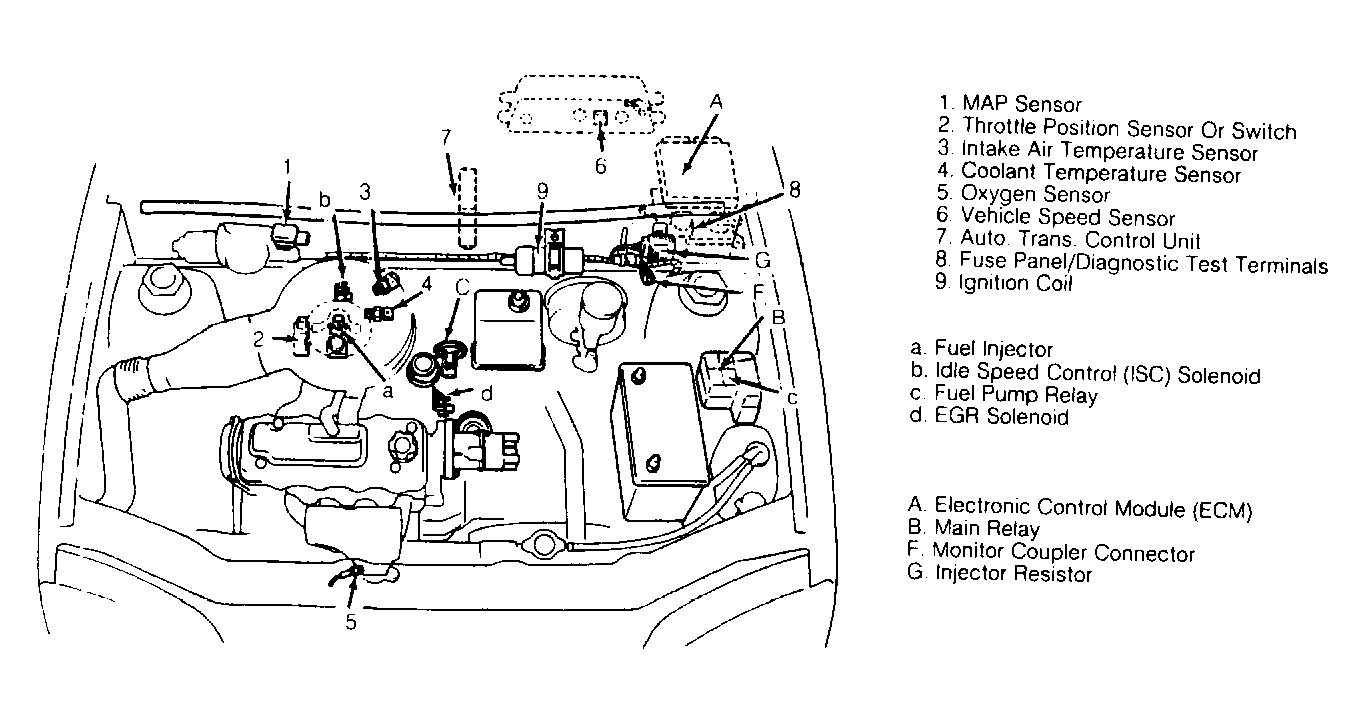

Auto. Transmission Control Unit Under center of dash. See Figure & Figure .
Electronic Control Module (ECM) At left side of dash, behind instrument cluster. See Figure & Figure .
