Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| A/T Control Module | Behind center of dash. See Figure . | |
| Automatic Door Lock Controller | Behind glove compartment. | |
| Daytime Running Light Module (Canada) | Behind left side of dash, left of steering column. | |
| Engine Control Module (ECM) | ||

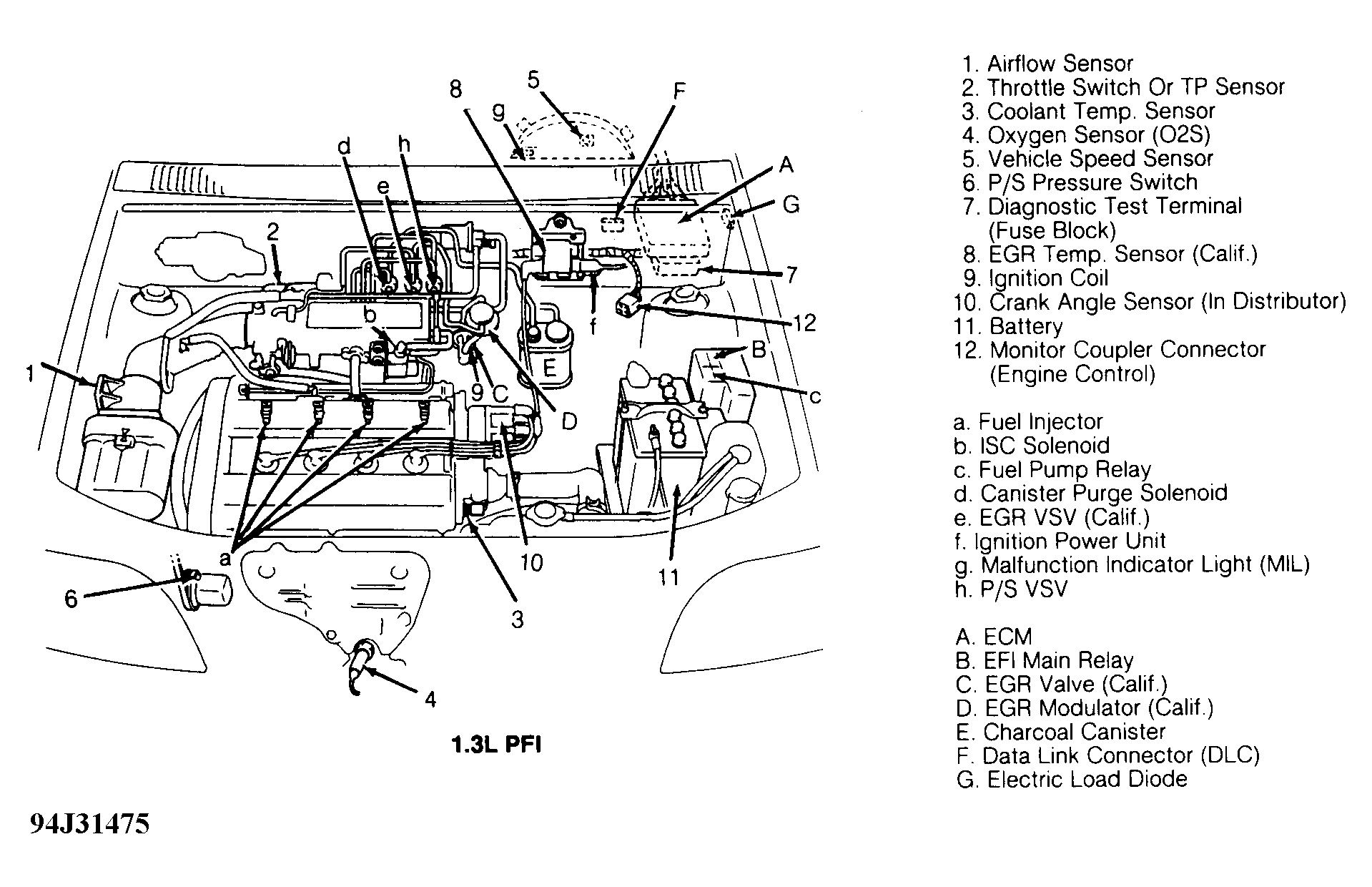

| PFI | Behind left side of dash. See Figure . | |

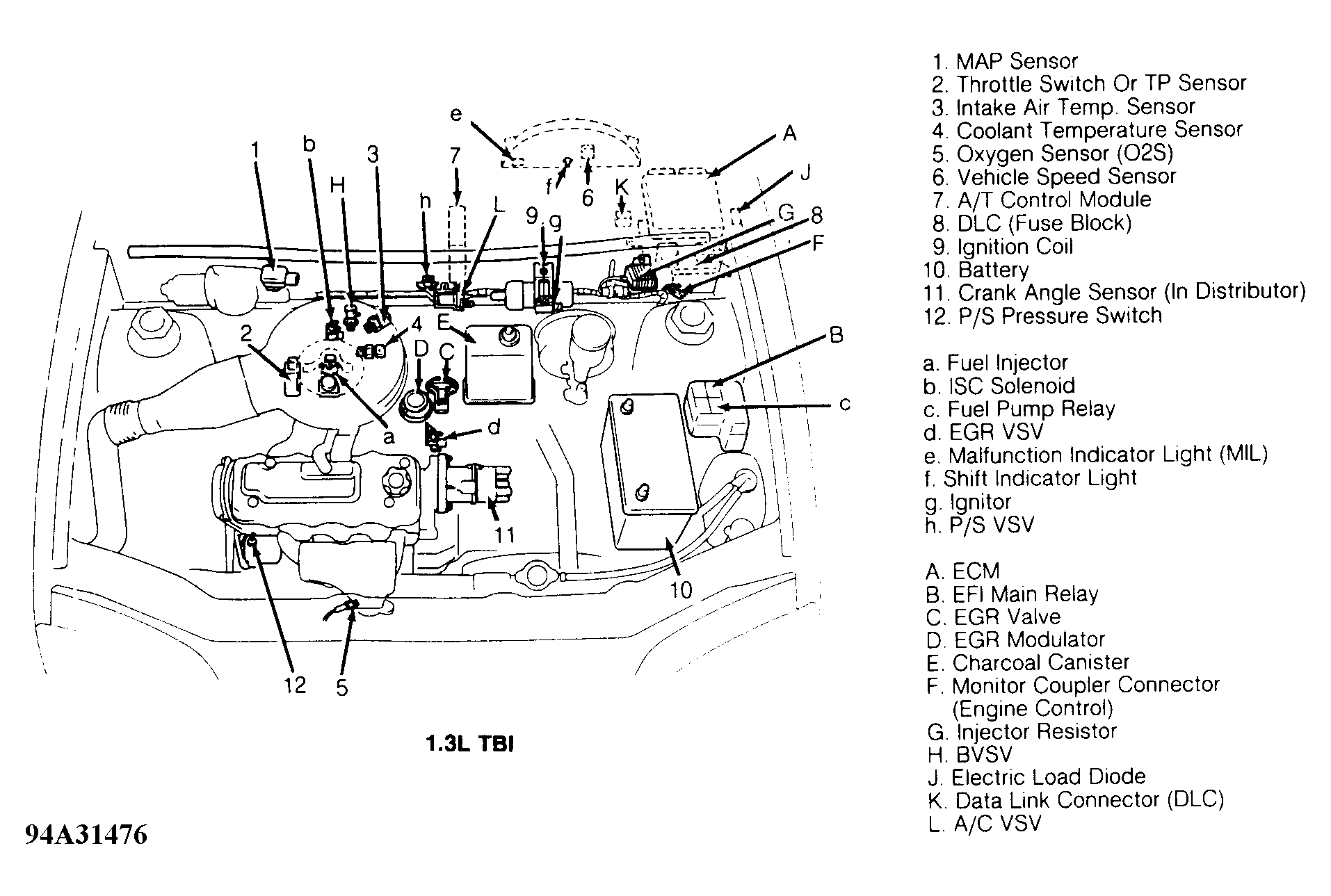

| TBI | Behind left side of dash. See Figure . | |
