Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Component Locations (1 Of 2)
G94I31466

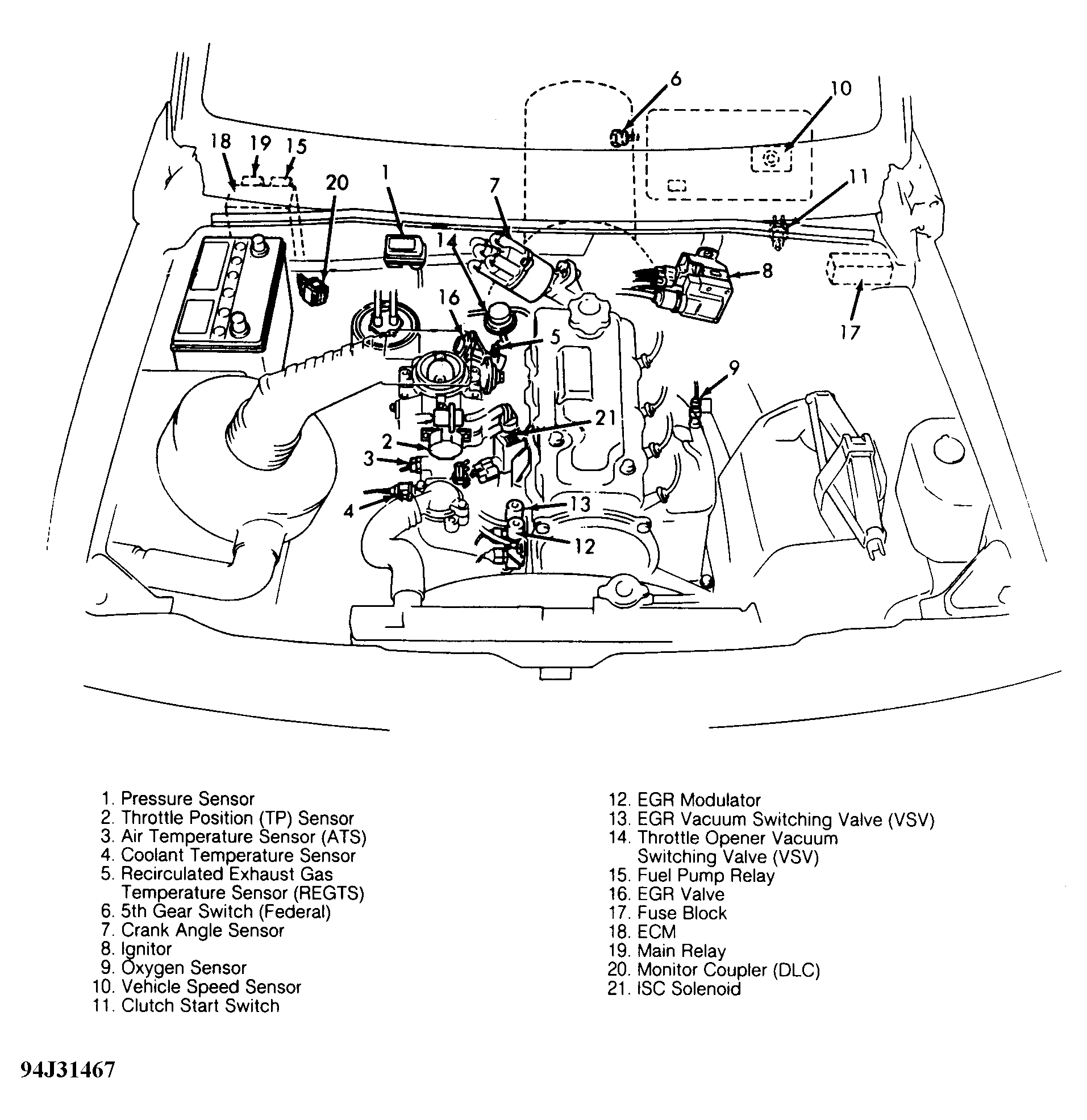

Fig 2: Component Locations (2 Of 2)
G94J31467
