Home >> Suzuki >> 1994 >> Samurai >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes - 1.3L TBI >> Code Charts >> Code 14 - ECT Sensor, Low Temperature Indicated

Code 14 - ECT Sensor, Low Temperature Indicated

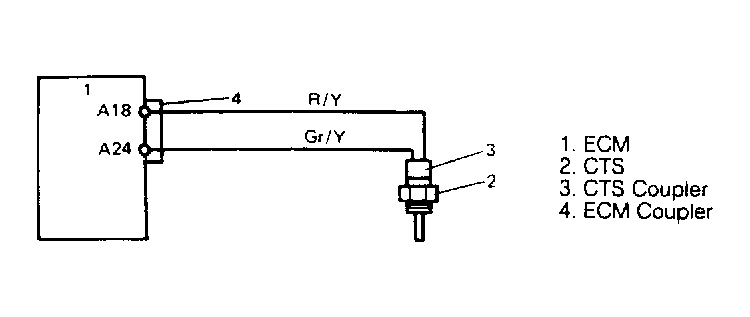

Fig 1: Code 14, Schematic - ECT Sensor Indication Low

G91H18488

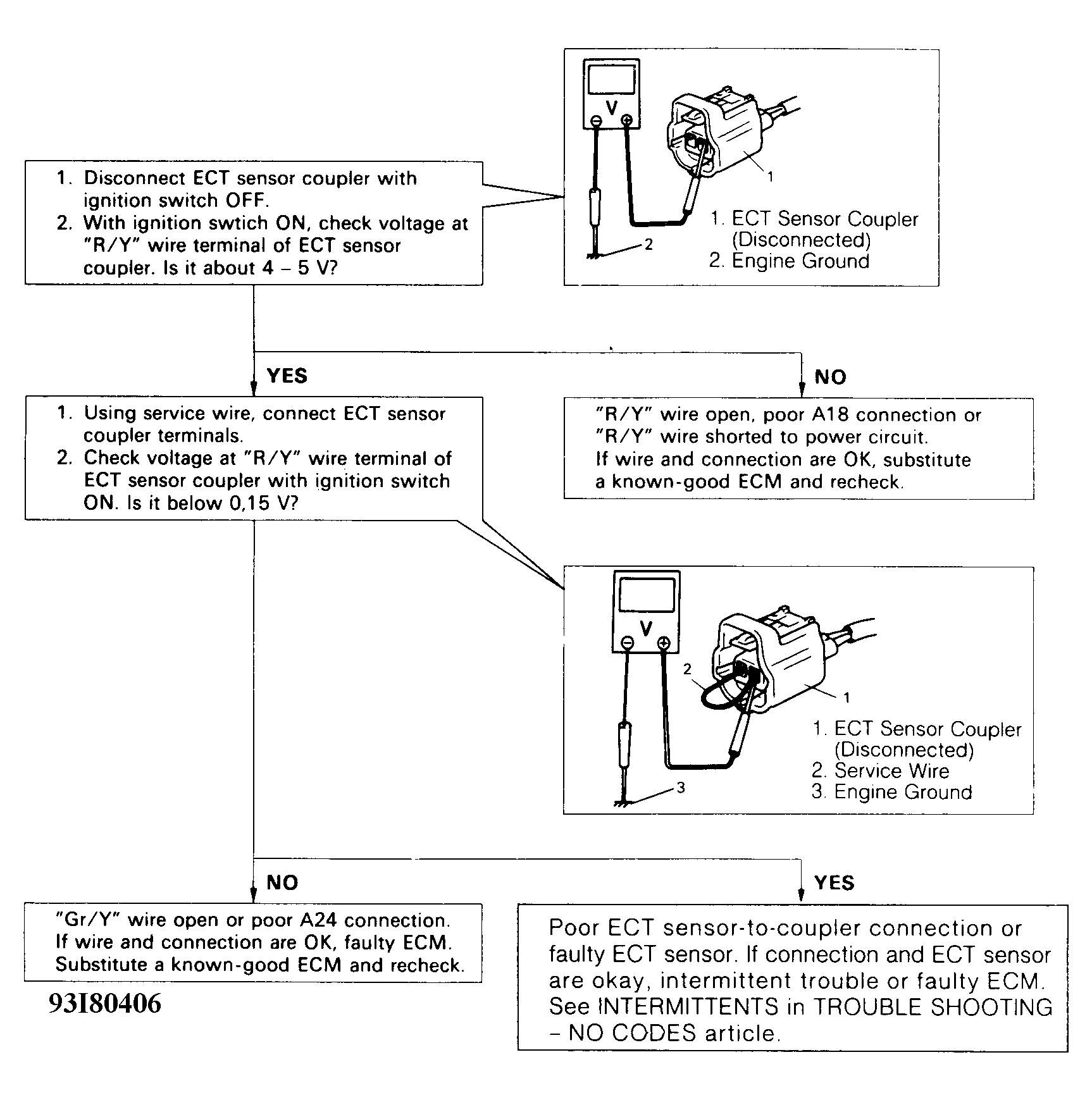

Fig 2: Code 14, Flow Chart - ECT Sensor Indication Low

G93I80406
