Code 15 - ECT Sensor, High Temperature Indicated

Fig 1: Code 15, Schematic - ECT Sensor Indication High

G91H18488

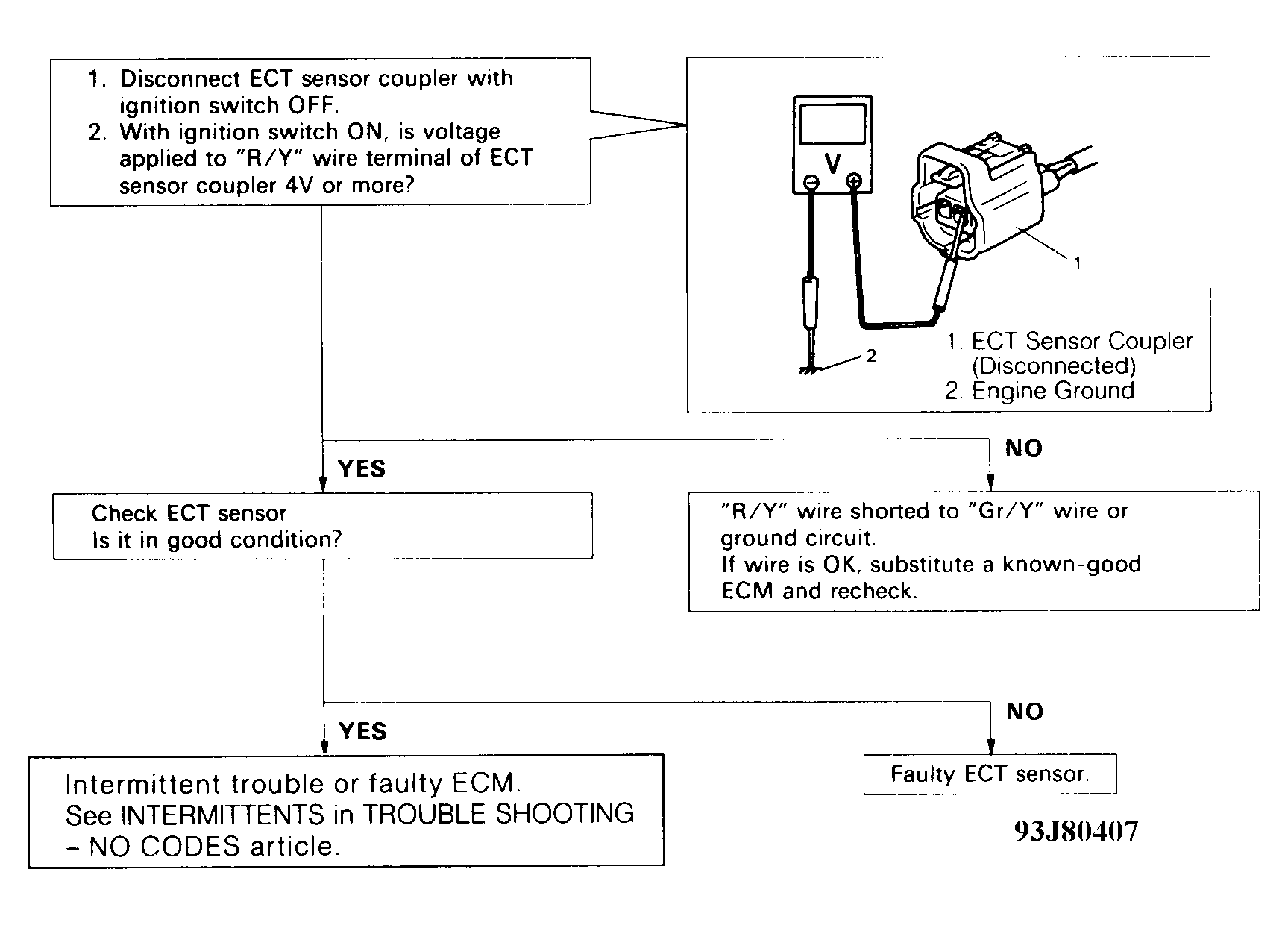

Fig 2: Code 15, Flow Chart - ECT Sensor Indication High

G93J80407
