EBCM Connector Terminal Identification

EBCM CONNECTOR TERMINAL IDENTIFICATION

Terminal		Wire Color	(1) Circuit No.
Connector C1
C1		BRN	Right Front Motor High
C3		GRN/WHT	Stoplight Switch Input
C5		VIO	Serial Data Line
C7		GRN/BLK	Left Front Motor Low
C9		GRN	Left Front Motor High
C10		BLU	Left Front Wheel Signal Input
C11		GRN	Right Front Wheel Signal Input
C12		GRN/BLK	Right Front Wheel Signal Input
C13		YEL	Right Rear Wheel Signal Input
C14		YEL/BLK	Right Rear Wheel Signal Input
C16		PNK/BLK	Rear Motor Low
D1		BRN/BLK	Right Front Motor Low
D4		BLU/YEL	ABS ACTIVE Indicator Control
D5		BLU	ABS Indicator Control
D6		BLK/BLU	ABS Enable Relay Control
D7		RED/BLK	BRAKE Indicator Control
D8		WHT/GRN	Battery Power
D9		YEL/GRN	Switched Ignition
D10		BLU/BLK	Left Front Wheel Signal Input
D11		ORN	Left Rear Wheel Signal Input
D12		ORN/BLK	Left Rear Wheel Signal Input
D13		RED/WHT	Right Front ABS Solenoid
D14		BLU/WHT	Left Front ABS Solenoid
D16		PNK	Rear Motor High
Connector C2
1		WHT	Switched Battery Power
2		BLK	Ground
(1) Terminals not listed are not used.

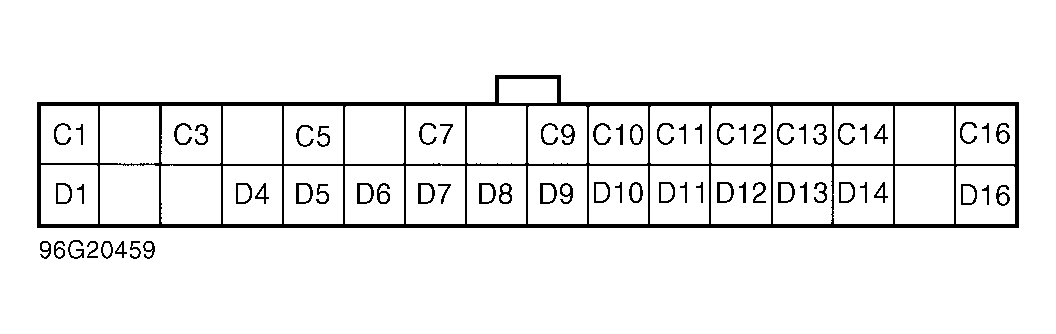

Fig 1: Identifying EBCM 32-Pin Connector Terminals

Courtesy of GENERAL MOTORS CORP.

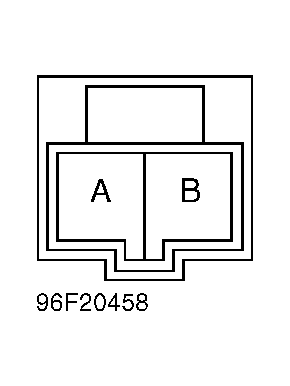

Fig 2: Identifying EBCM 2-Pin Connector Terminals

Courtesy of GENERAL MOTORS CORP.
