Throttle Cable

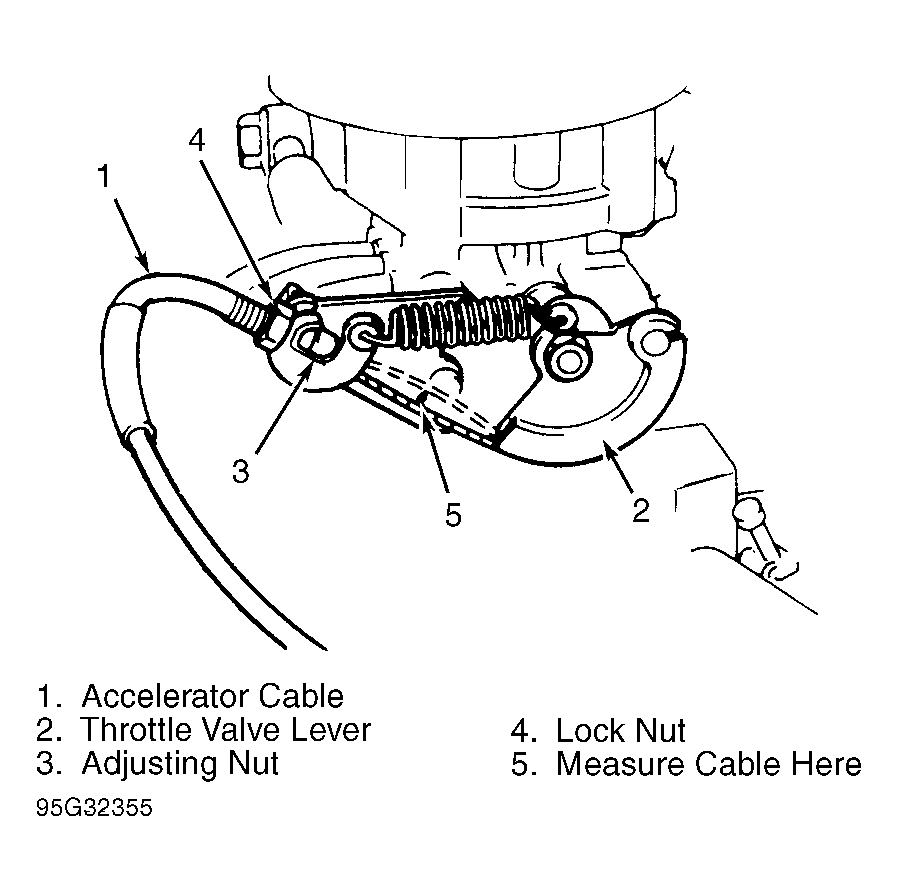

Ensure cable has .12-.20" (3.0-5.0 mm) free play. Hold exposed portion of cable at center and move cable up and down to measure free play. Use lock nut and adjusting nut on cable bracket to adjust free play. See Fig 1 .
Ensure cable has .12-.20" (3.0-5.0 mm) free play. Hold exposed portion of cable at center and move cable up and down to measure free play. Use lock nut and adjusting nut on cable bracket to adjust free play. See Fig 1 .
