Hazard Switch

Remove hazard switch and disconnect hazard switch harness connector. Continuity should exist between specified terminals with switch in specified position. See HAZARD SWITCH CONTINUITY  . SeeFig 1 . If switch does not test as specified, replace hazard switch.

HAZARD SWITCH CONTINUITY

Switch Position Terminals No.
Off 1 & 3; 2 & 6
On 3 & 8; 4, 5 & 7; 2 & 6

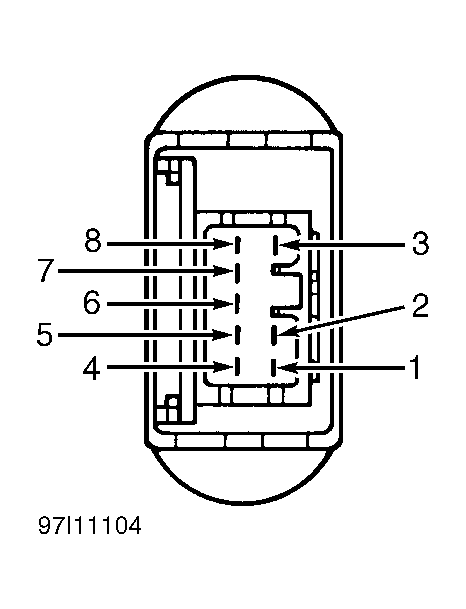

Fig 1: Identifying Hazard Switch Terminals
G97I11104Courtesy of SUZUKI OF AMERICA CORP.
