Warning Controller
Courtesy of SUZUKI OF AMERICA CORP.

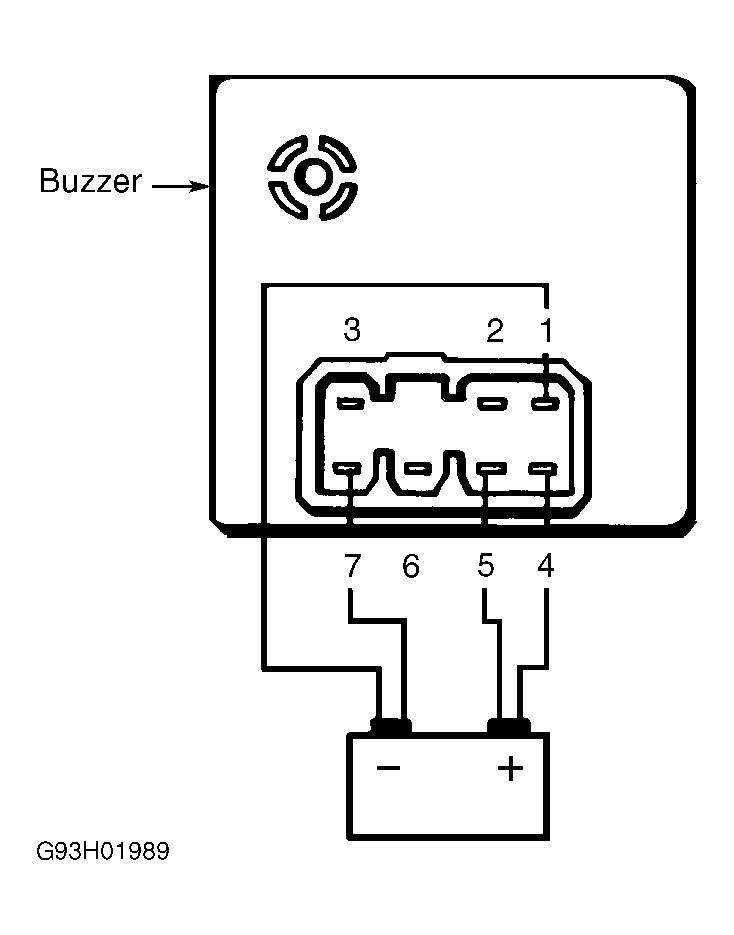

- Disconnect warning controller harness connector. Connect negative battery voltage to terminals No. 1 and 7 of warning controller. Connect positive battery voltage to terminals No. 4 and 5 of warning controller. SeeFig 1
. If buzzer sounds for 4-8 seconds, go to next step. If buzzer does not sound for 4-8 seconds, replace warning controller.
- Connect positive battery voltage to terminal No. 4 of warning controller. Connect negative battery voltage to terminals No. 6 and 7. If buzzer sound constantly, go to next step. If buzzer does not sound constantly, replace warning controller.
- Connect positive battery voltage to terminals No. 2 and 5 of warning controller. Connect negative battery voltage to terminal No. 7 then remove connection from terminal No. 5. If buzzer sounds constantly, controller is operating properly at this time. If buzzer does not sound constantly, replace warning controller.
