Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

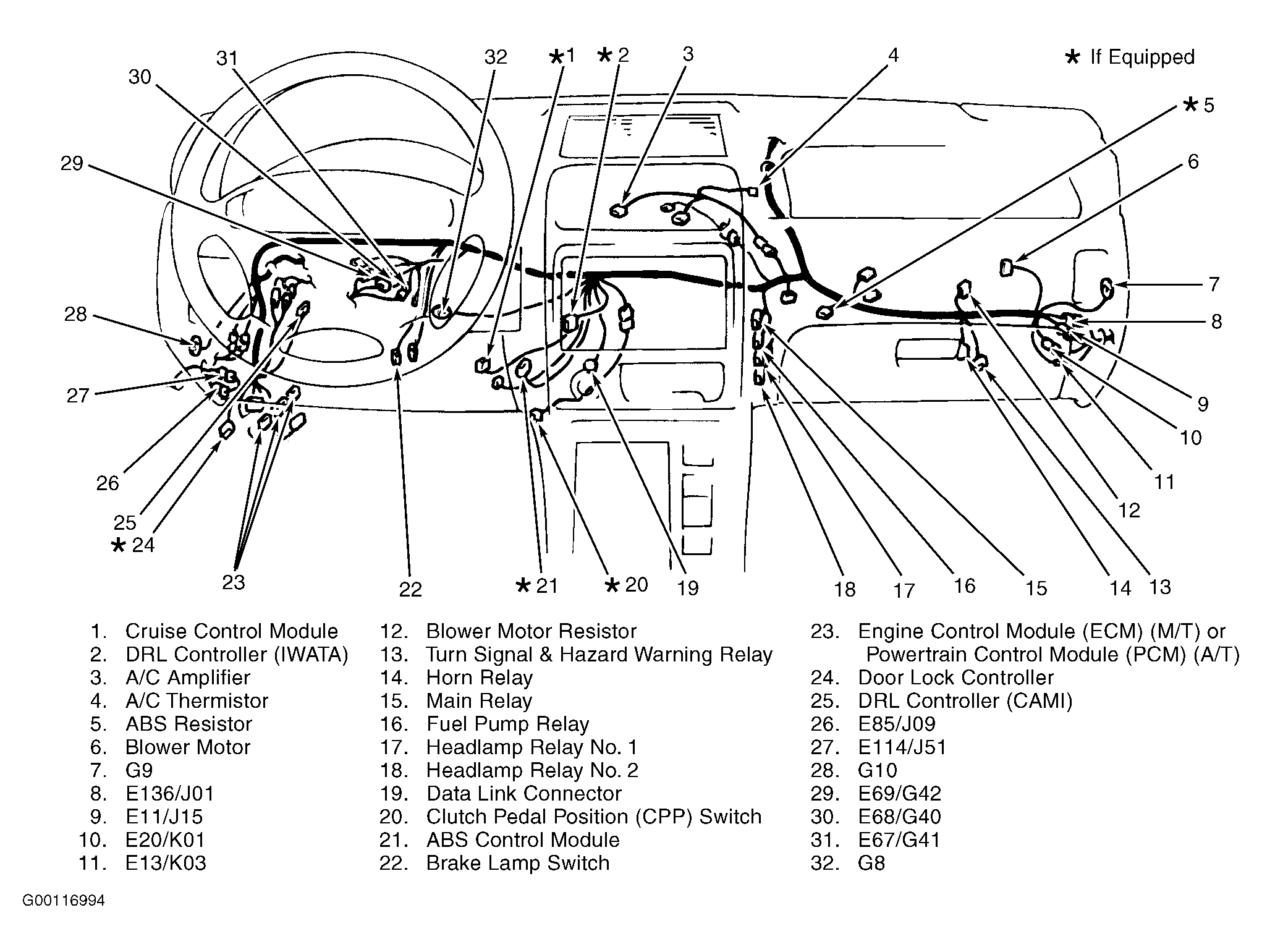

| A/C Amplifier | Behind right side of dash, on evaporator housing. See Figure . |
| ABS Control Module | Behind left center of dash. See Figure . |

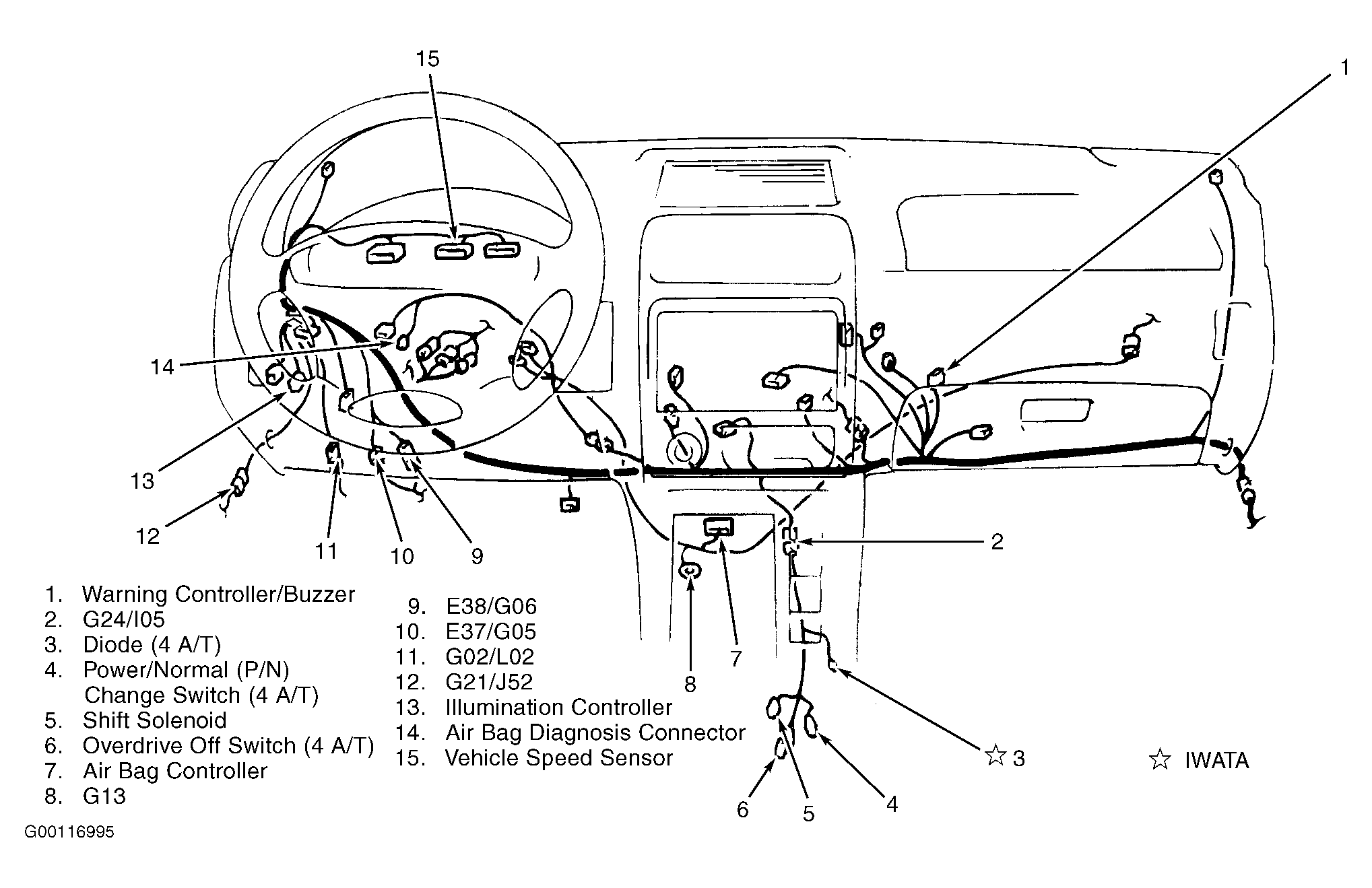

| Air Bag Controller | Below center of dash. See Figure . |
| Cruise Control Module | Behind dash, right of steering column. See Figure . |
| Door Lock Controller | Behind dash, left of steering column. See Figure . |
| DRL Controller (CAMI) | Behind dash, left of steering column. See Figure . |
| DRL Controller (IWATA) | Behind center of dash. See Figure . |
| Engine Control Module (ECM) (M/T) | Behind dash, on steering column. See Figure . |
| Illumination Controller | Behind left side of dash. See Figure . |
| Powertrain Control Module (PCM) A/T) | Behind dash, on steering column. See Figure . |
