Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

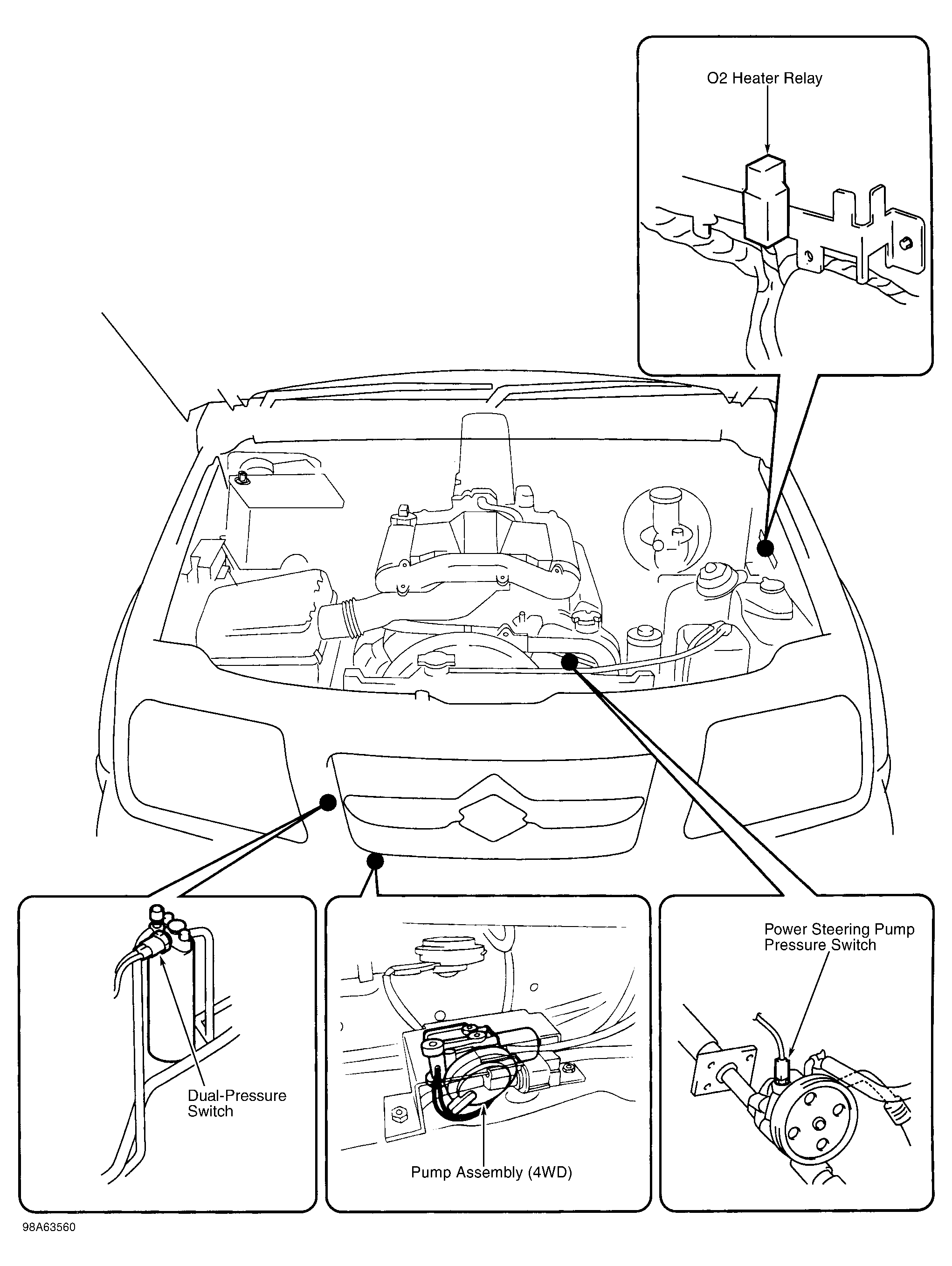

Fig 1: Engine Compartment

G98A63560

Fig 2: Engine Compartment

G98B63561

Fig 3: Dash

G98C63562
