Home >> Suzuki >> 2000 >> Swift GL, Automatic >> Repair and Diagnosis >> Engine Performance >> Specifications >> Engine Controls - Service & Adjustment Specifications >> Ignition System >> Firing Order

Firing Order

CYLINDER FIRING ORDERS

Engine	Firing Order
4-Cylinder Engine	1-3-4-2
Grand Vitara	1-6-5-4-3-2

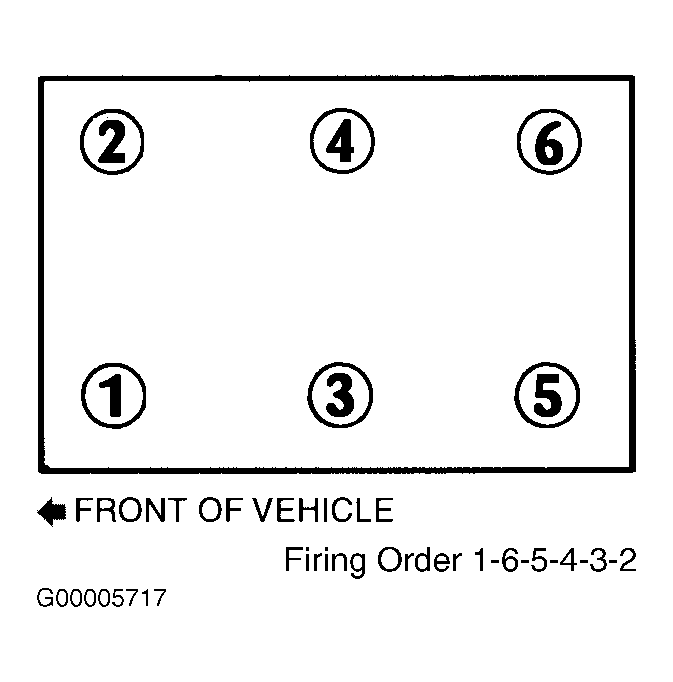

Fig 1: Firing Order (2.5L)

G00005717

Courtesy of GENERAL MOTORS CORP.
