Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

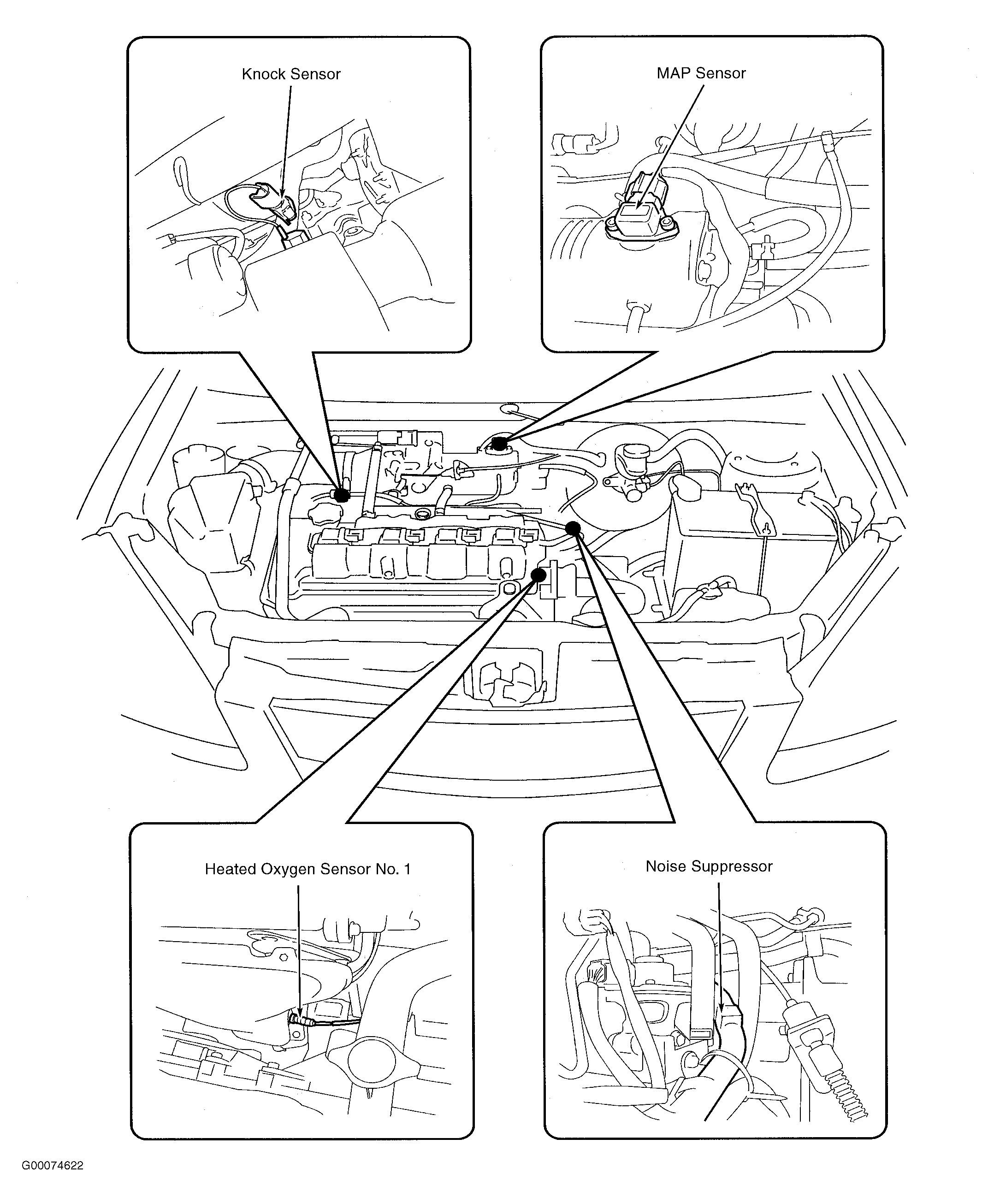

Fig 1: Engine Compartment

Courtesy of SUZUKI OF AMERICA CORP.

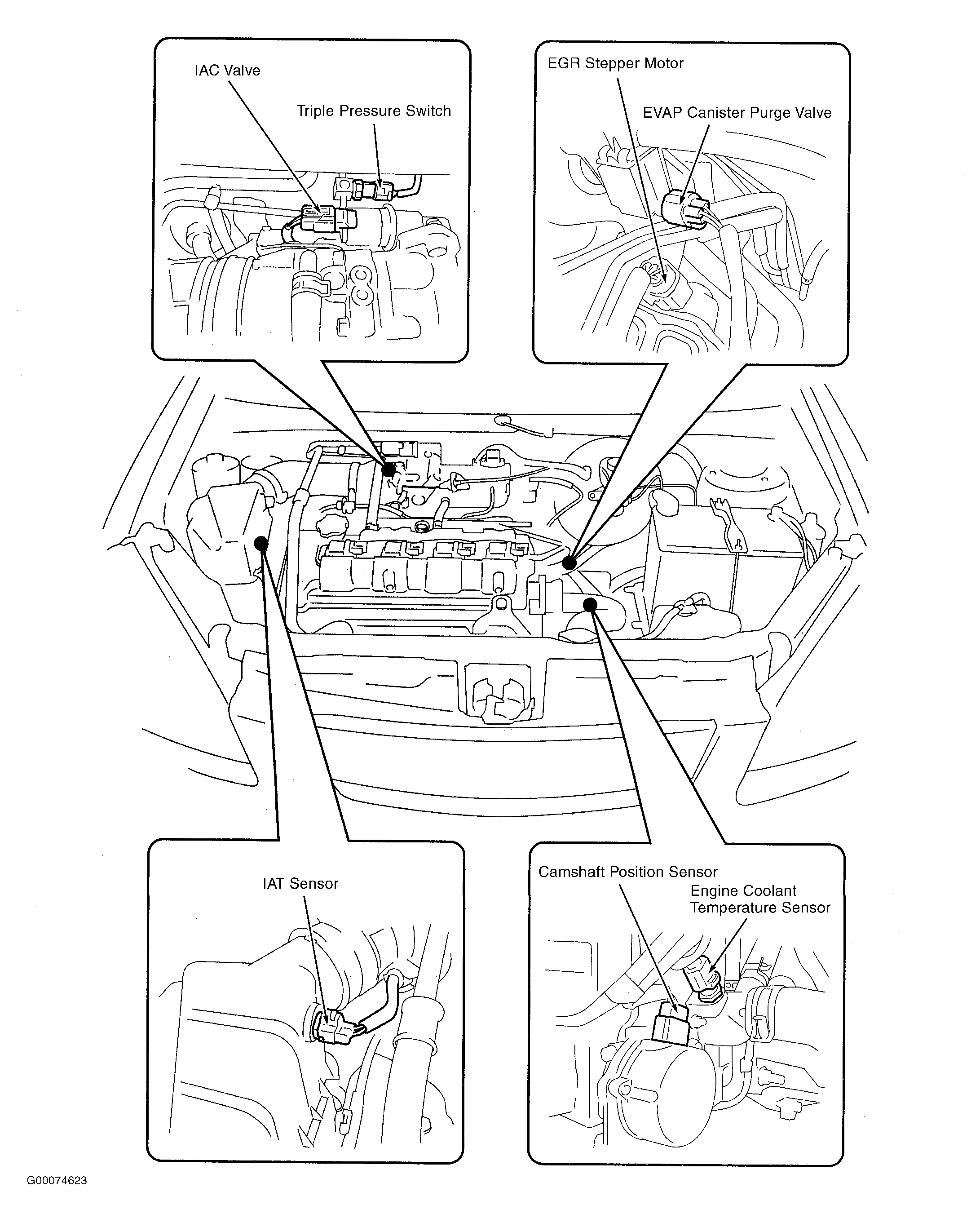

Fig 2: Engine Compartment

Courtesy of SUZUKI OF AMERICA CORP.

Fig 3: Engine Compartment

Courtesy of SUZUKI OF AMERICA CORP.

Fig 4: Dash

Courtesy of SUZUKI OF AMERICA CORP.

Fig 5: Vehicle Overview

Courtesy of SUZUKI OF AMERICA CORP.
