Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|

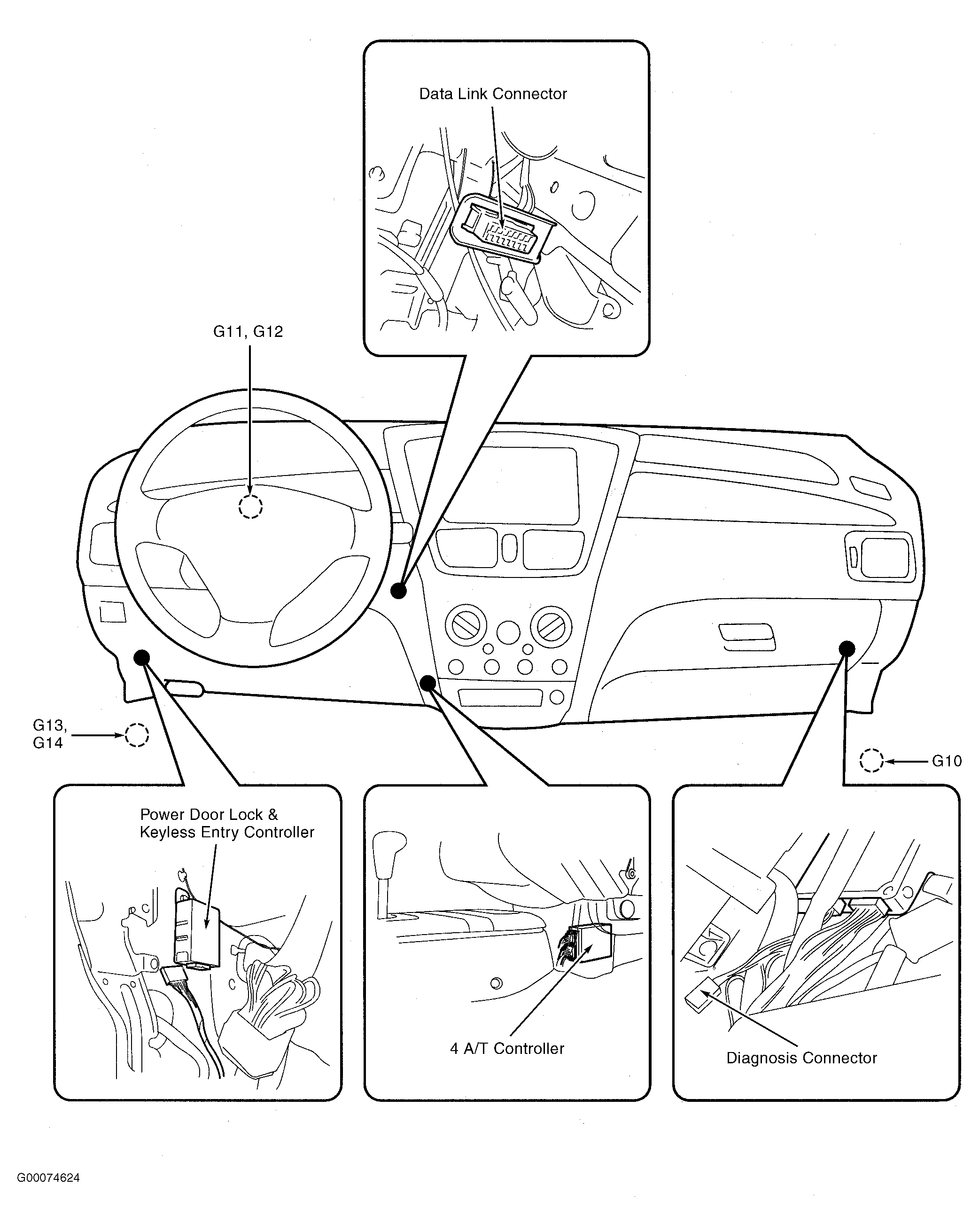

| 4 A/T Controller | Behind left side of dash, left of radio. See Figure . |

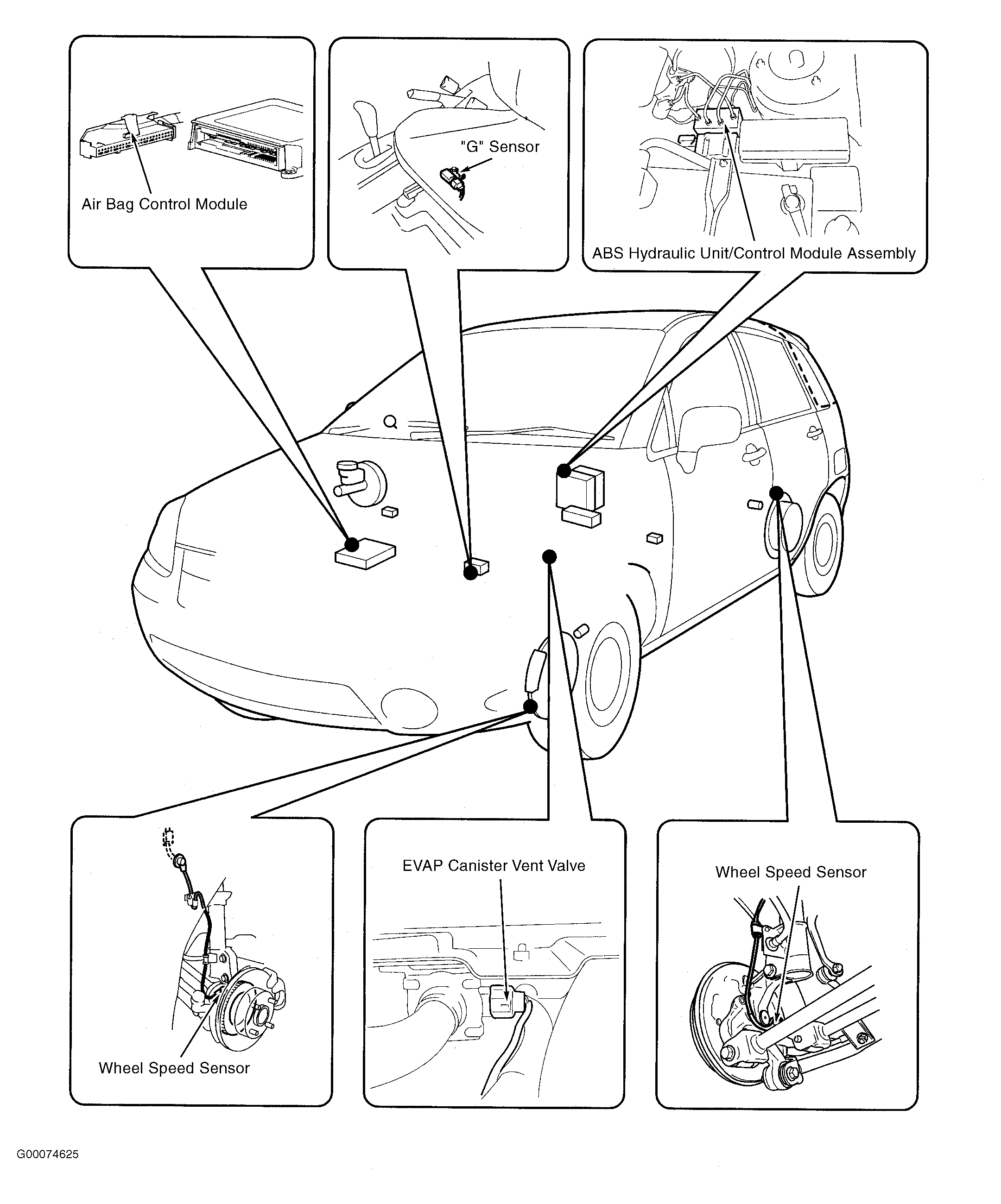

| ABS Hydraulic Unit/Control Module Assembly | On left rear of engine compartment. See Figure . |
| Air Bag Control Module | Below front console, forward of shift lever. See Figure . |

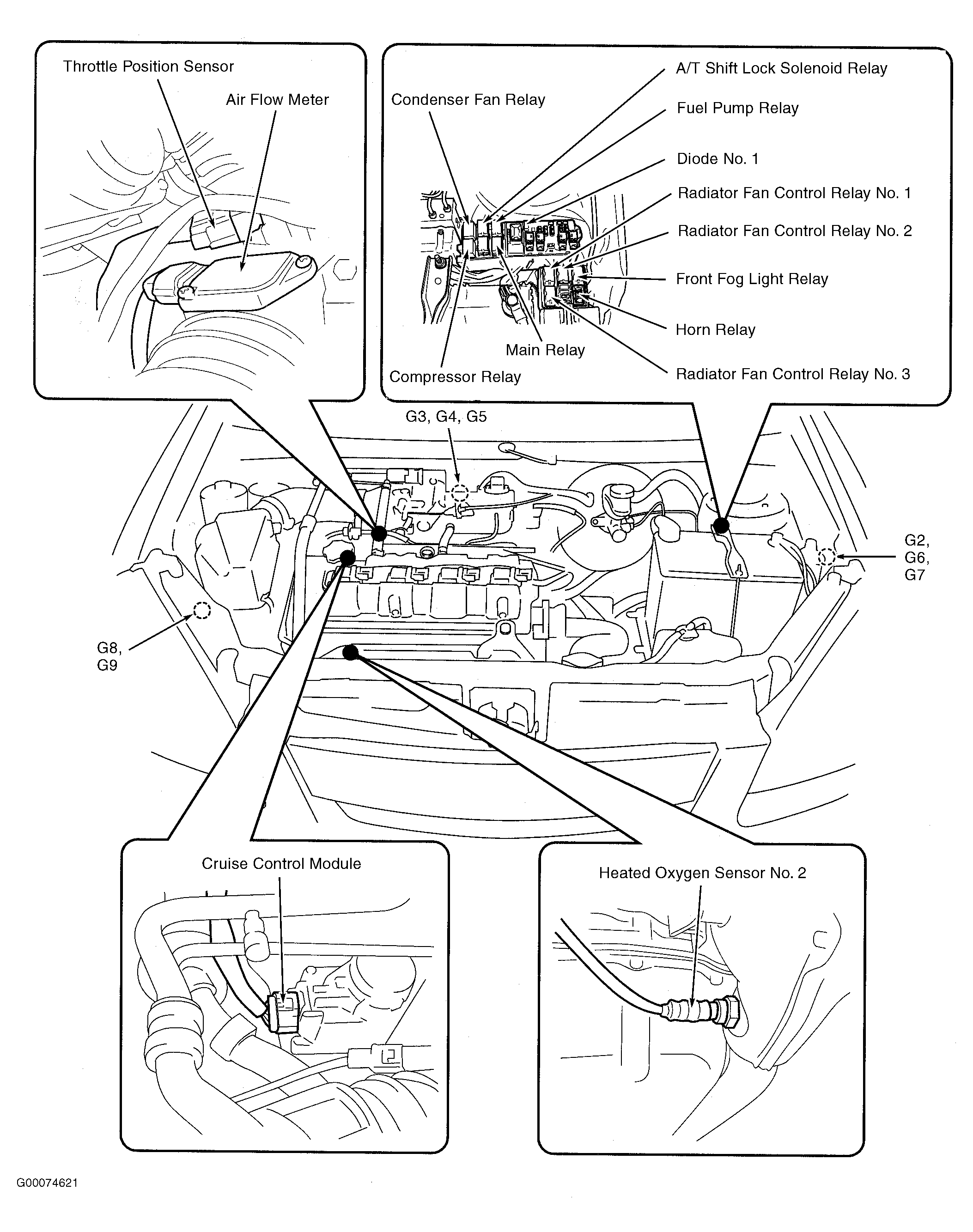

| Cruise Control Module | On engine, near throttle valve. See Figure . |
| Door Lock Controller | Behind lower left side of dash. |
| DRL Controller | Behind dash, above left side of glove box. |
| Engine Control Module | Behind glove box. |
| Power Door Lock & Keyless Entry Controller | Behind dash, left of steering column. See Figure . |
| Transmission Control Module | Behind dash, left of steering column. |
