Bench Testing: Condenser: 60A/70A

Using capacitor tester, check capacity of condenser, located on rectifier. See Fig 1 . Replace rectifier if condenser capacity is not .5 uF.

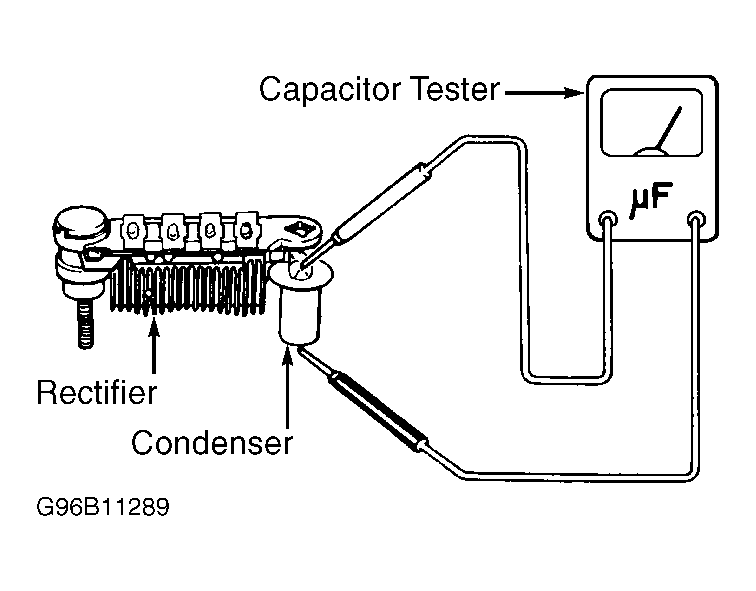

Fig 1: Testing Condenser Capacity (60A/70A)

Courtesy of SUZUKI OF AMERICA CORP.
