Home >> Suzuki >> 2002 >> XL-7 Plus >> Repair and Diagnosis >> Engine Performance >> Mode 6 - 2001-2007 >> 2005

Mode 6 - 2001-2007: 2005

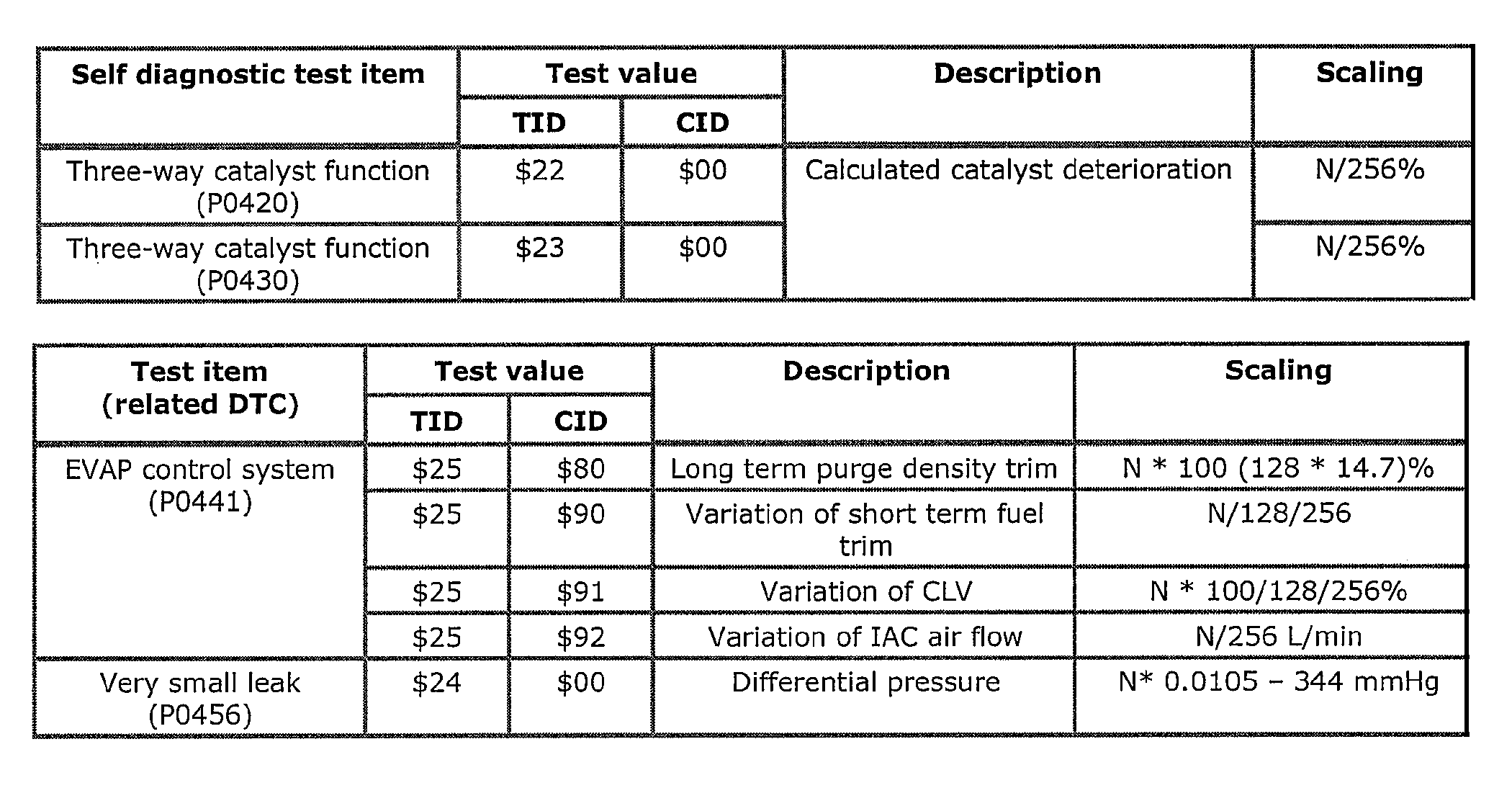

Fig 1: Mode $06 Data For '05 XL-7 (1 Of 3)
G00453078Courtesy of SUZUKI OF AMERICA CORP.

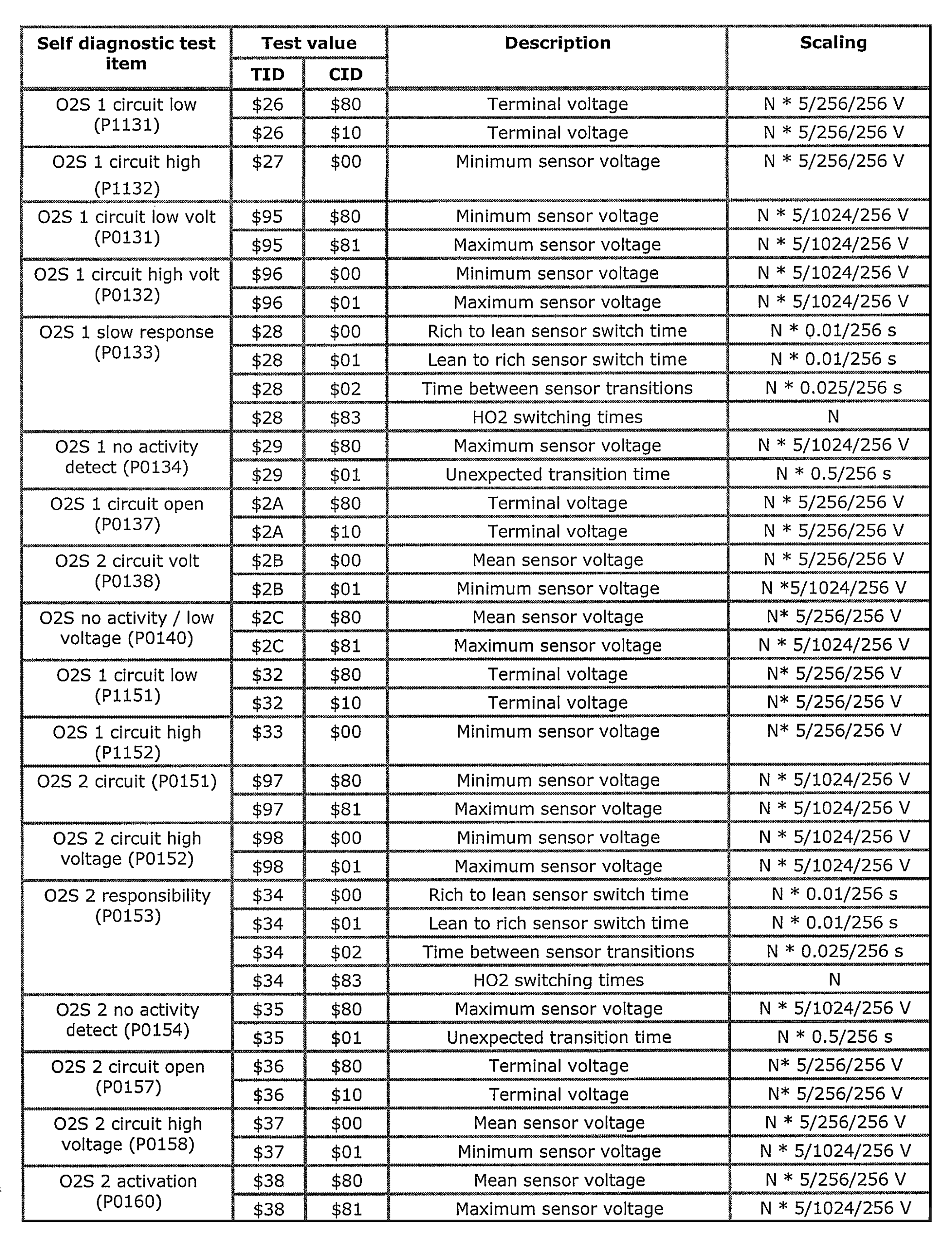

Fig 2: Mode $06 Data For '05 XL-7 (2 Of 3)
G00453079Courtesy of SUZUKI OF AMERICA CORP.

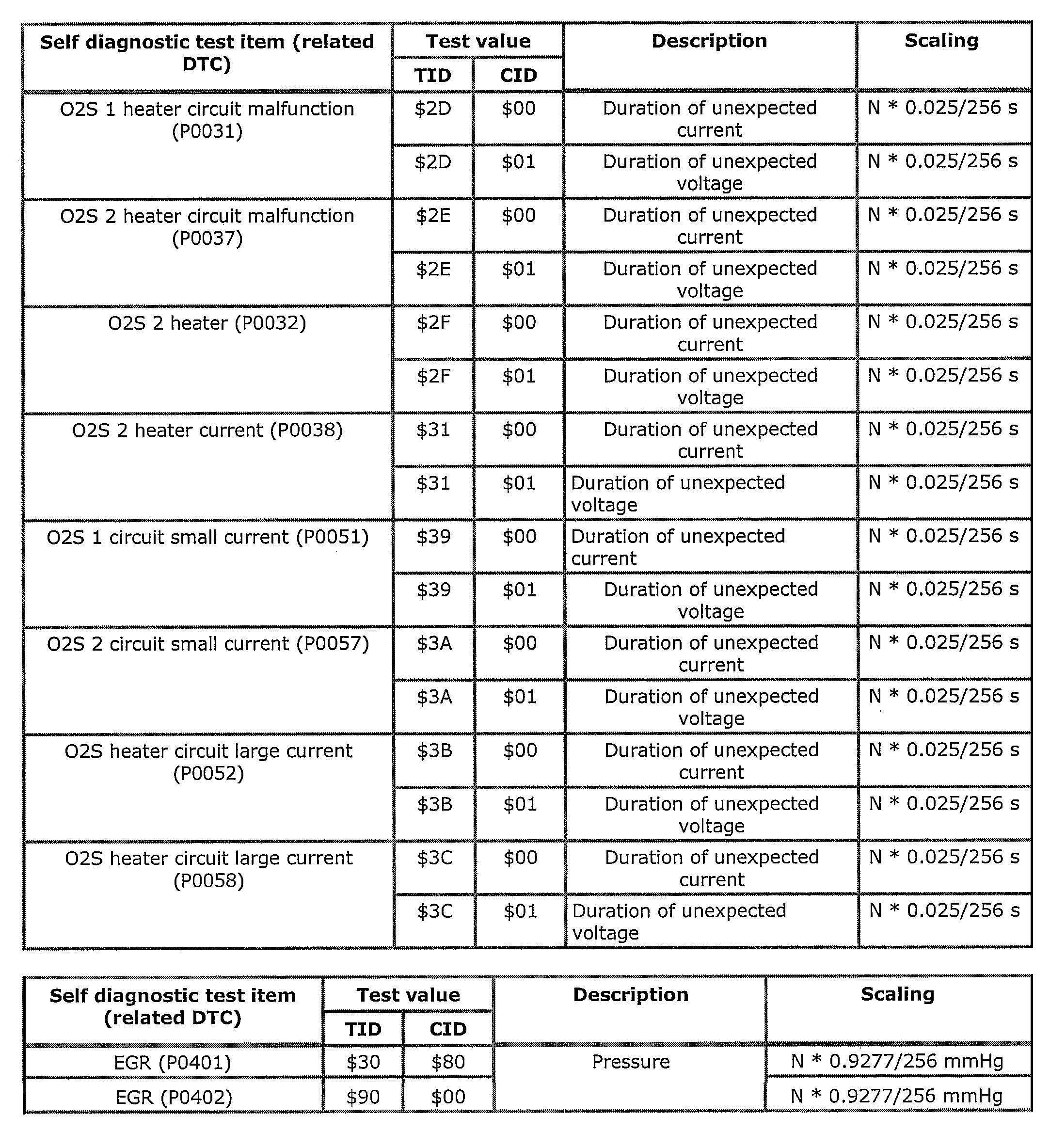

Fig 3: Mode $06 Data For '05 XL-7 (3 Of 3)
G00453080Courtesy of SUZUKI OF AMERICA CORP.
