Home >> Suzuki >> 2002 >> XL-7 Plus >> Repair and Diagnosis >> Engine Performance >> Mode 6 - 2001-2007 >> 2007

Mode 6 - 2001-2007: 2007

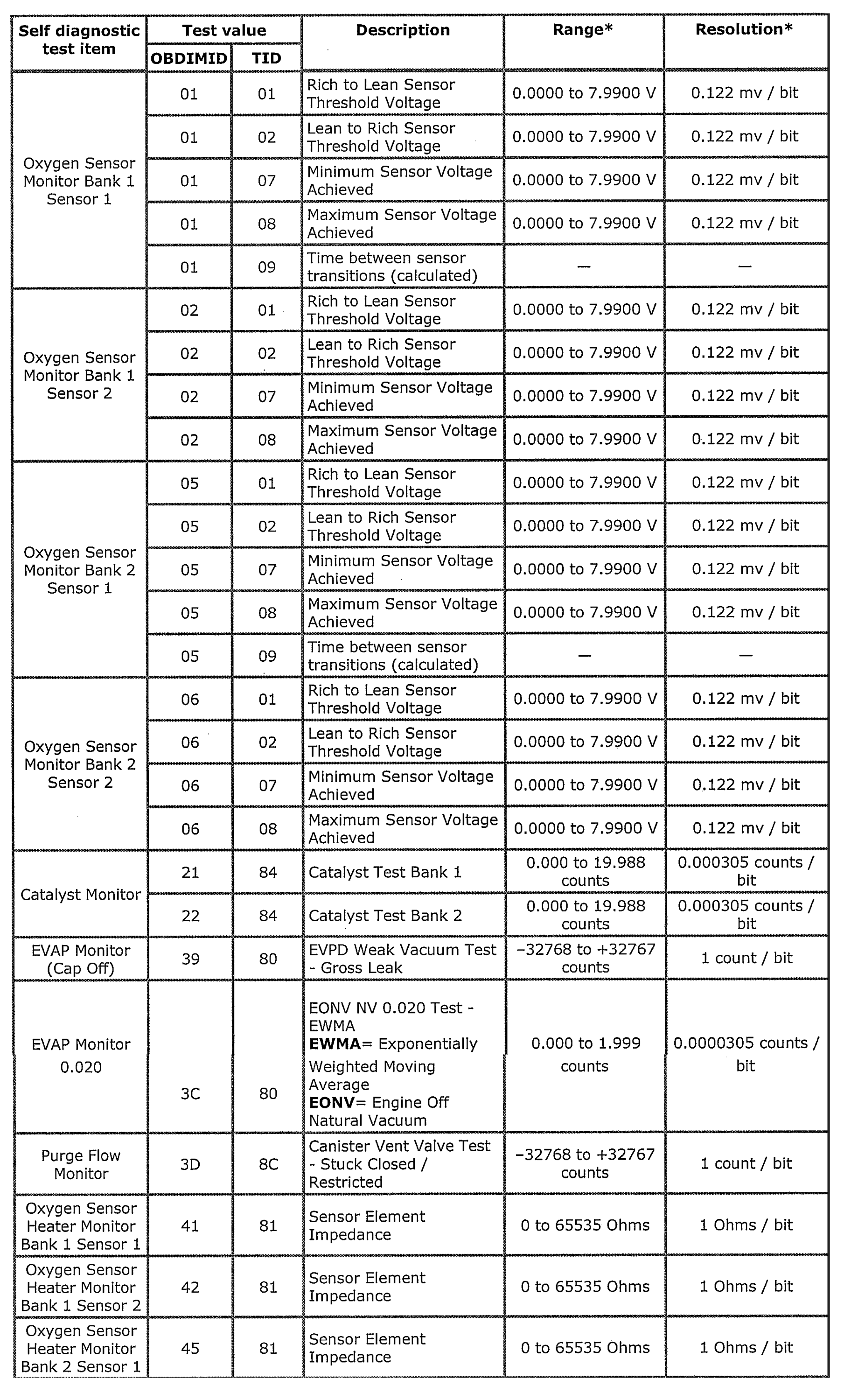

Fig 1: Mode $06 Data For '07 XL-7 (1 Of 2)
G00453081Courtesy of SUZUKI OF AMERICA CORP.

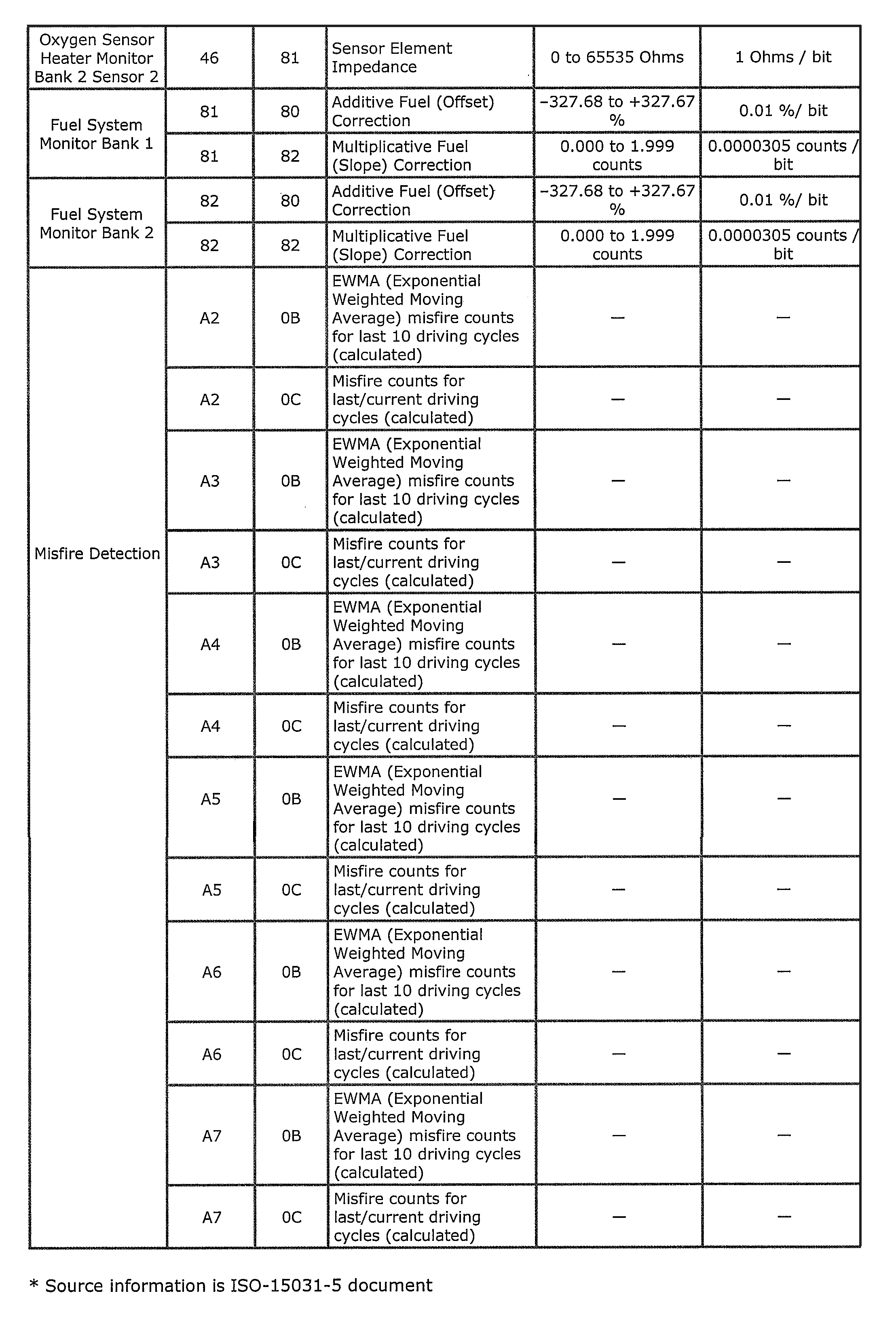

Fig 2: Mode $06 Data For '07 XL-7 (2 Of 2)
G00453082Courtesy of SUZUKI OF AMERICA CORP.
