Key Interlock Cable Removal and Installation: Installation: Notes

Lay interlock cable to its original cabling route.
Turn ignition switch to "ACC" position.

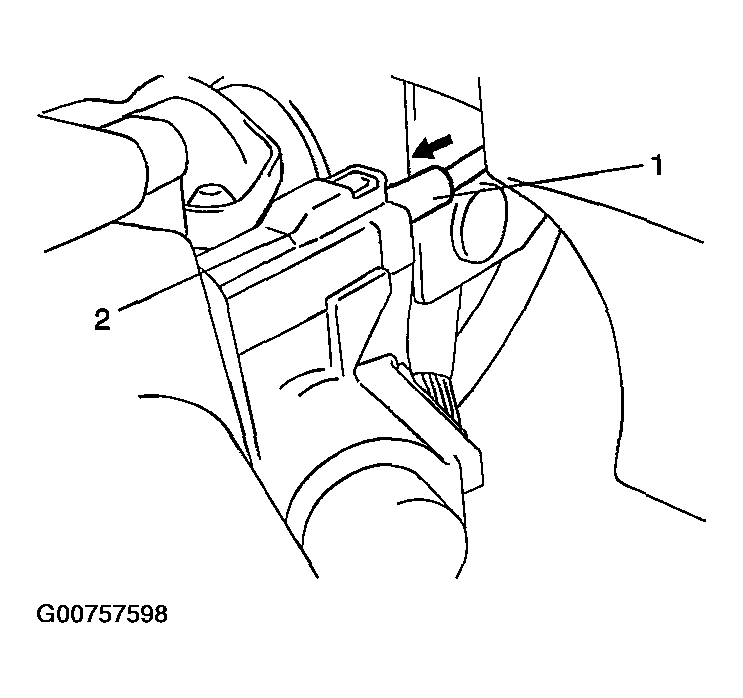

Insert cable casing cap (1) into key cylinder cover (2) securely.

Fig 1: Inserting Cable Casing Cap Into Key Cylinder Cover
Courtesy of SUZUKI OF AMERICA CORP.

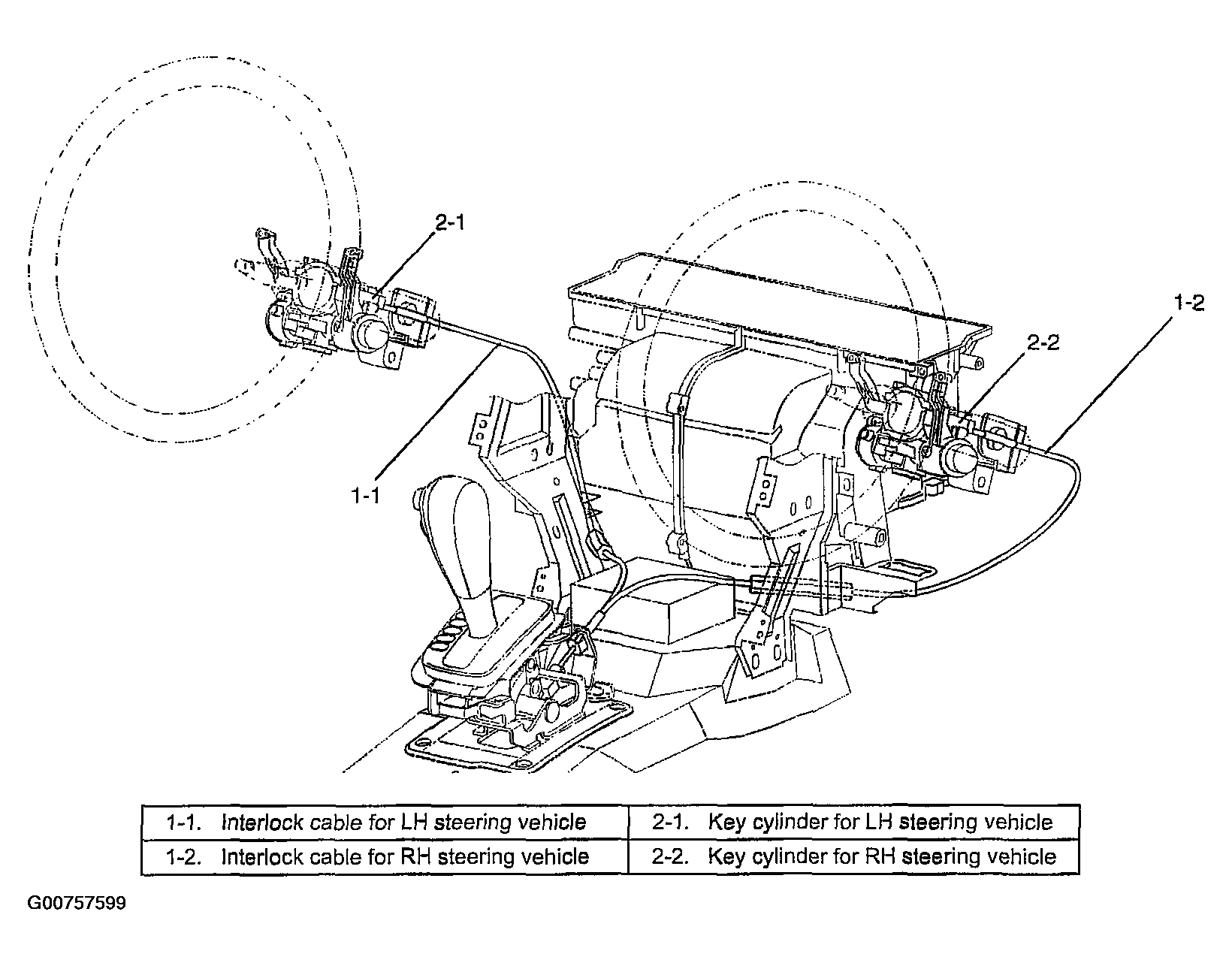

Pass and connect interlock cable as shown in the figure.

Fig 2: Passing & Connecting Interlock Cable
Courtesy of SUZUKI OF AMERICA CORP.

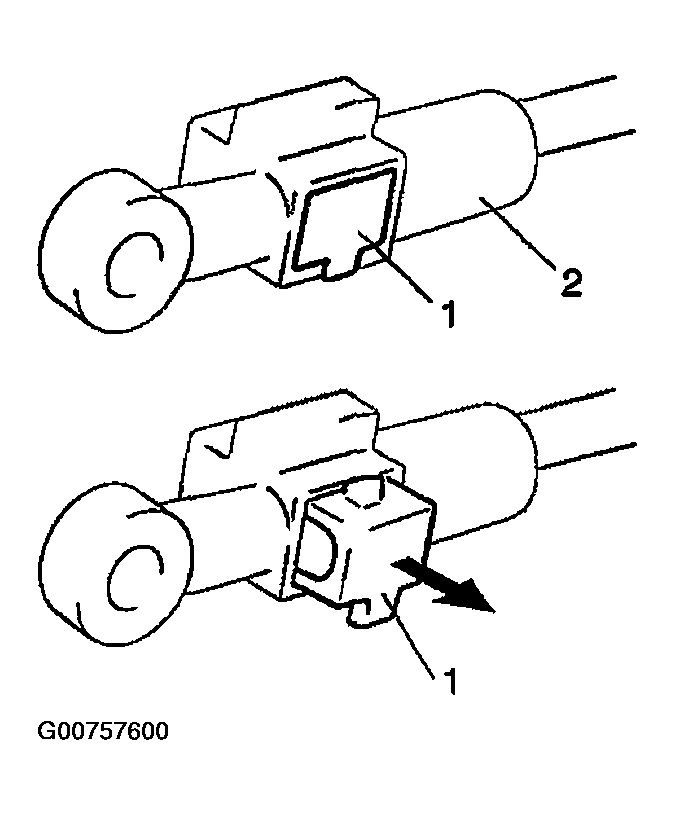

Pull out lock button (1) of selector side cable end (2).

Fig 3: Pulling Out Lock Button
Courtesy of SUZUKI OF AMERICA CORP.
Shift selector lever to "N" position.
NOTE: If selector lever is in "P" position, shift selector lever referring to Manual Selector Assembly Inspection .

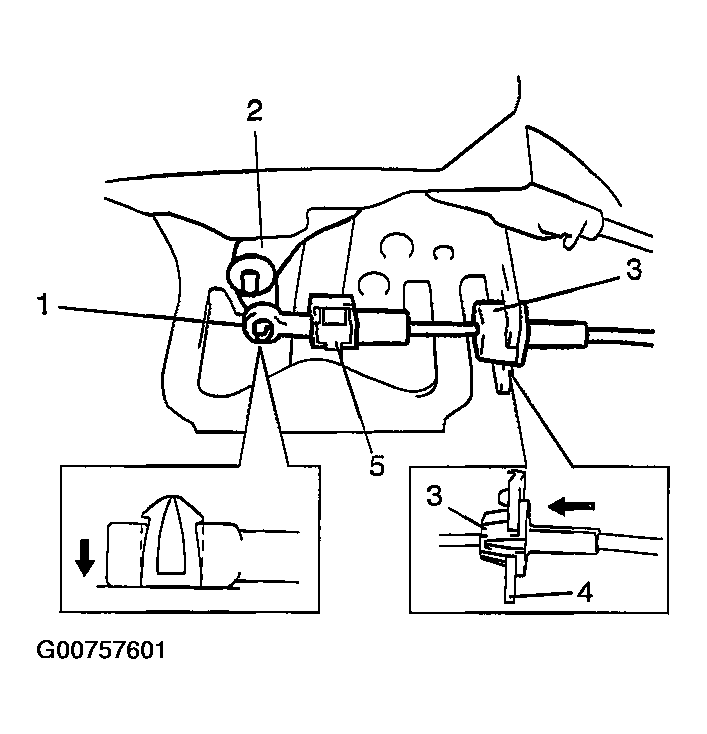

Install cable casing cap (3) to selector bracket (4).
Connect cable end (1) to interlock cam (2) with ignition switch turned to "ACC" position.
Drive lock button (5) in cable end until it locks cable expansion and contraction.

Fig 4: Driving Lock Button
Courtesy of SUZUKI OF AMERICA CORP.
With selector lever set at "P" position, turn ignition key to ACC position and then check for the following conditions.
- With knob button released, ignition key can be turned from ACC position to LOCK position.
- With knob button pressed, ignition key cannot be turned from ACC position to LOCK position.
Install steering column cover.
If the vehicle is equipped with air bag system, connect negative cable at battery and enable air bag system, referring to DISABLING & ACTIVATING AIR BAG SYSTEM .
