Enable Conditions

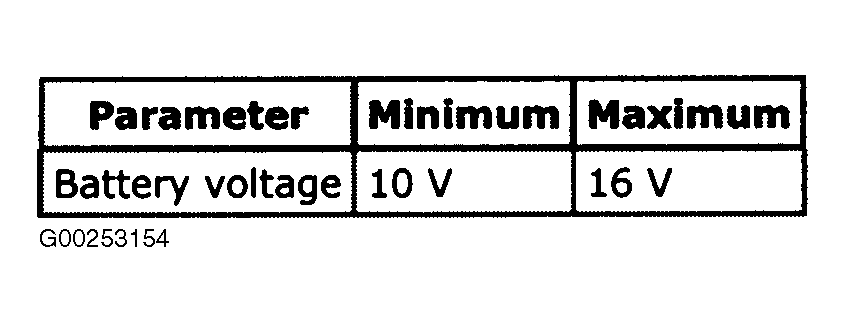

Fig 1: EVAP Purge Valve Circuit Monitor Enable Conditions

Courtesy of SUZUKI OF AMERICA CORP.

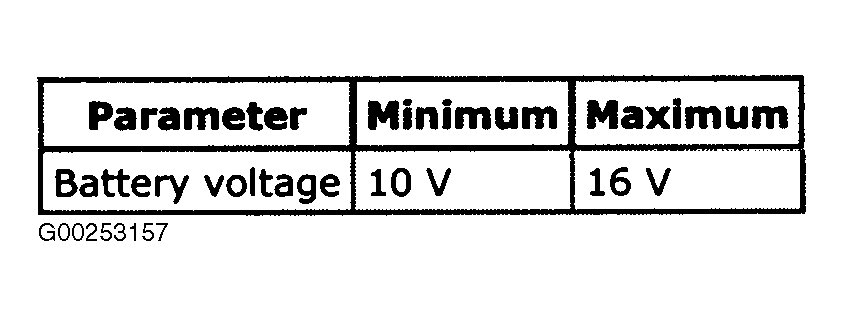

Fig 2: EVAP Vent Valve Circuit Monitor Enable Conditions

Courtesy of SUZUKI OF AMERICA CORP.

Fig 3: EVAP Vent Valve Rationality Monitor Enable Conditions

Courtesy of SUZUKI OF AMERICA CORP.

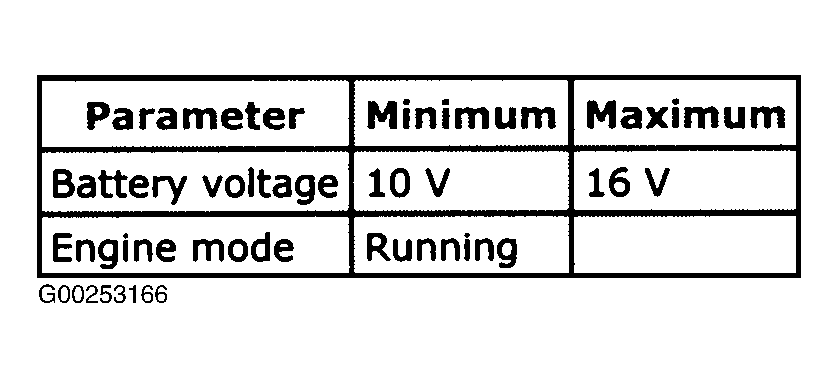

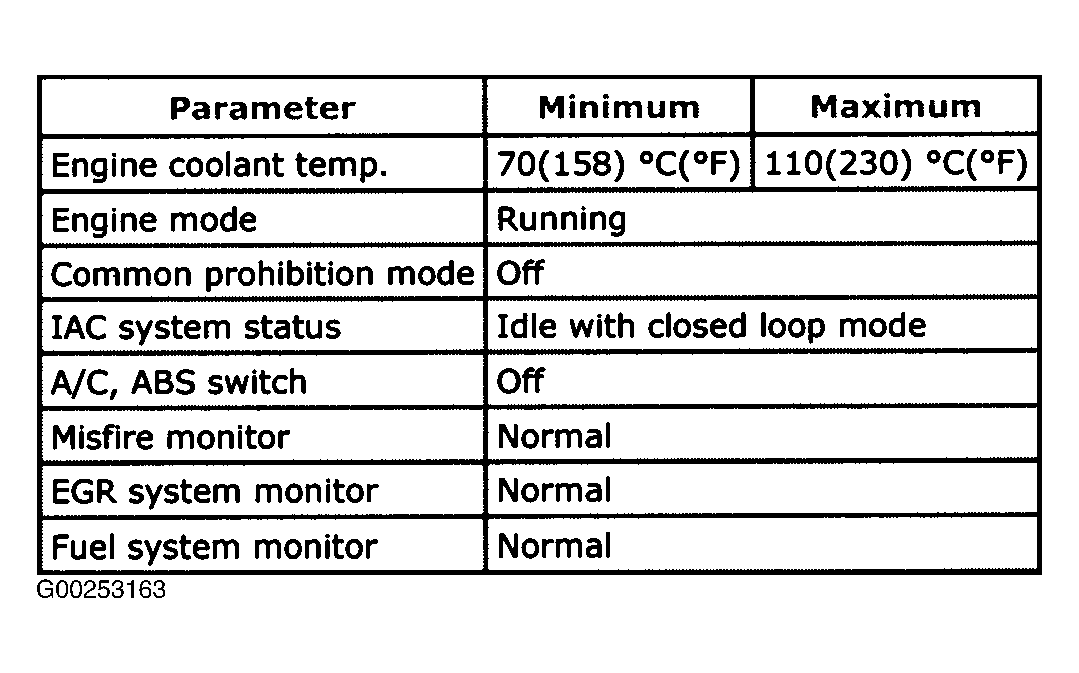

Fig 4: IAC System Monitor Enable Conditions

Courtesy of SUZUKI OF AMERICA CORP.

Fig 5: Back-Up Power Supply Monitor Enable Conditions

Courtesy of SUZUKI OF AMERICA CORP.
