Home >> Suzuki >> 2003 >> XL-7 Base, RWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Self-Diagnostics >> Monitors >> EVAP Control System Monitor >> Enable Conditions

Enable Conditions

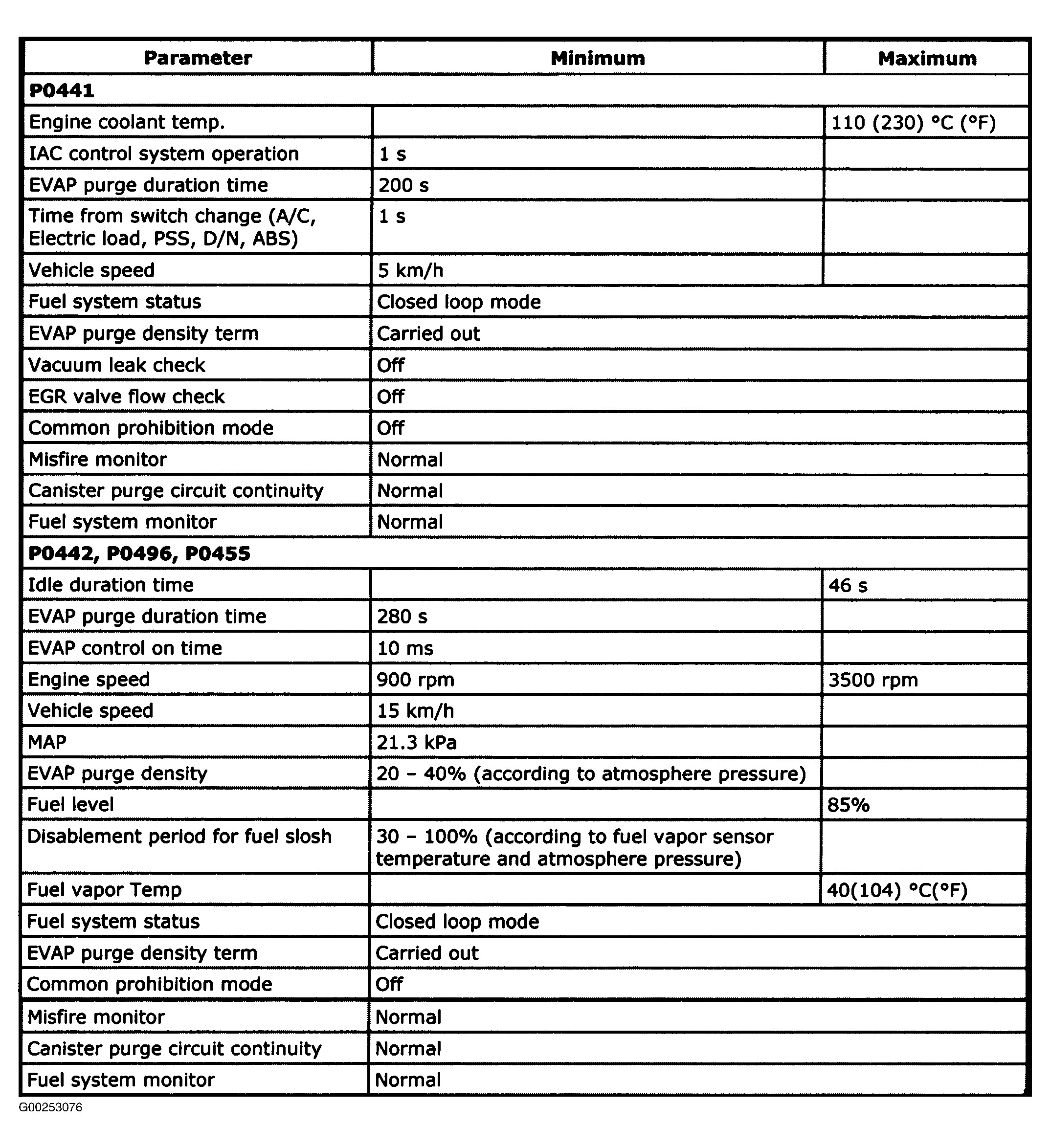

Fig 1: EVAP Control Monitor Enable Conditions (1 Of 2)

G00253076

Courtesy of SUZUKI OF AMERICA CORP.

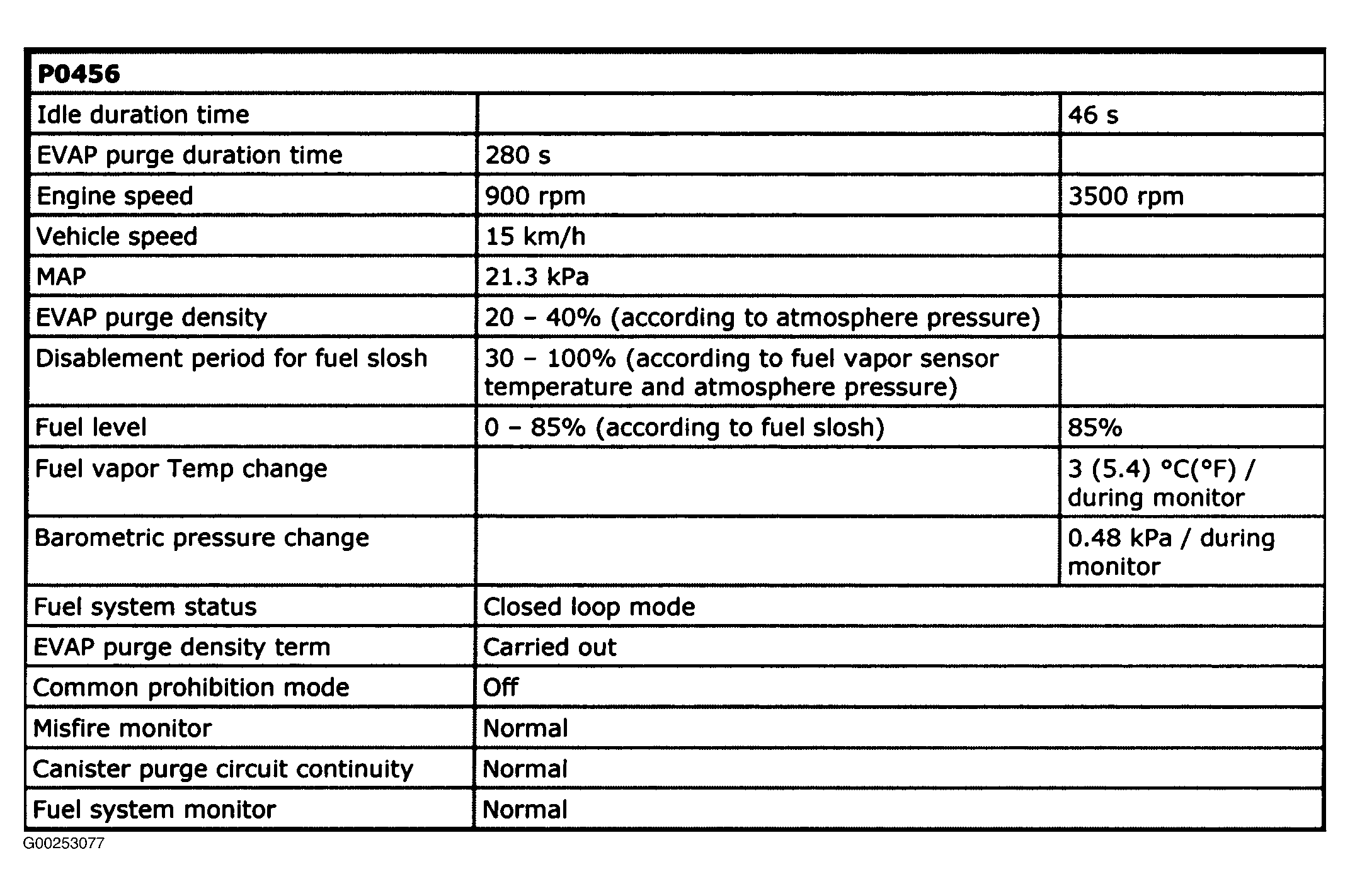

Fig 2: EVAP Control Monitor Enable Conditions (2 Of 2)

G00253077

Courtesy of SUZUKI OF AMERICA CORP.
