Enable Conditions

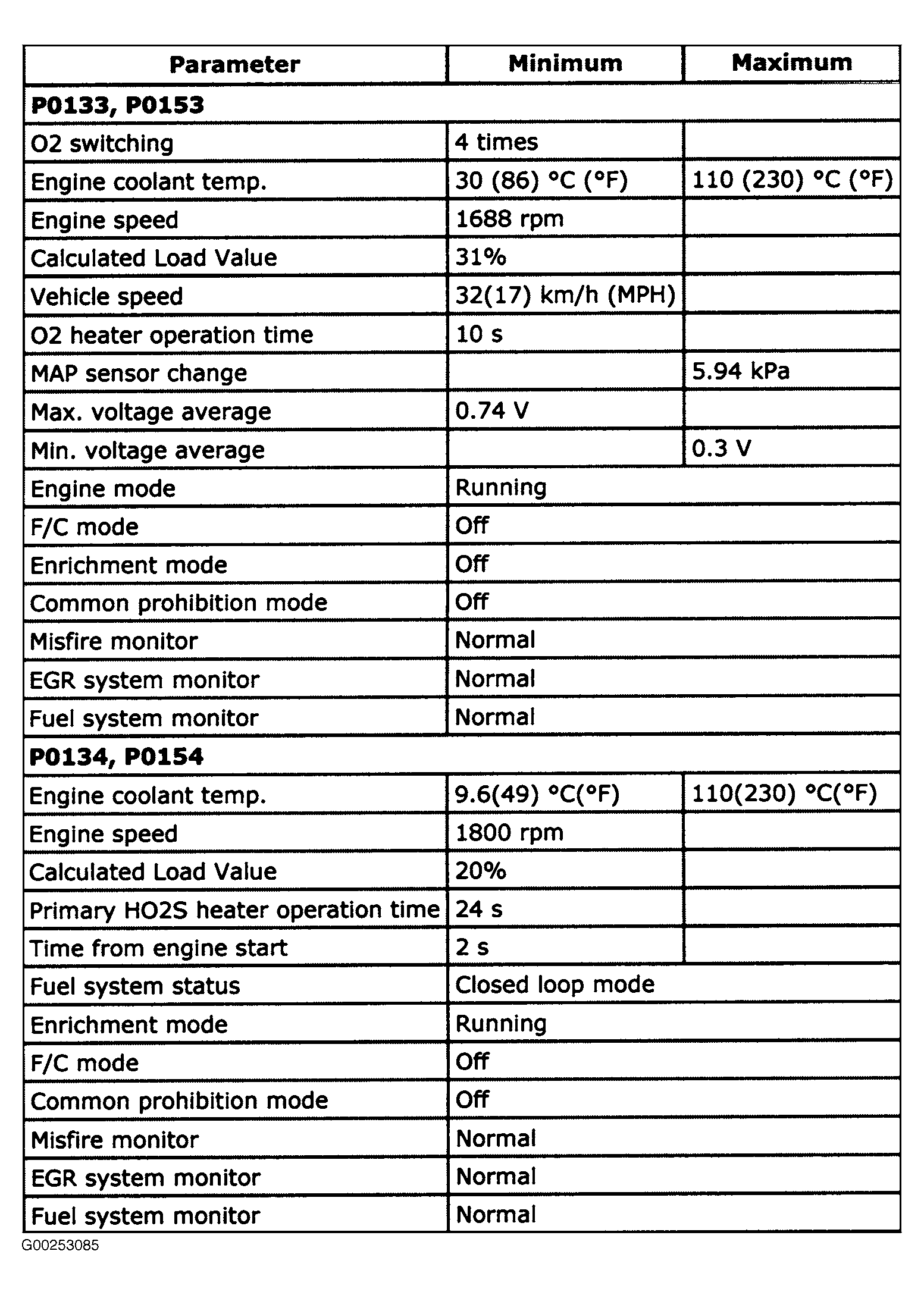

Fig 1: Primary HO2S Monitor Enable Conditions
G00253085Courtesy of SUZUKI OF AMERICA CORP.

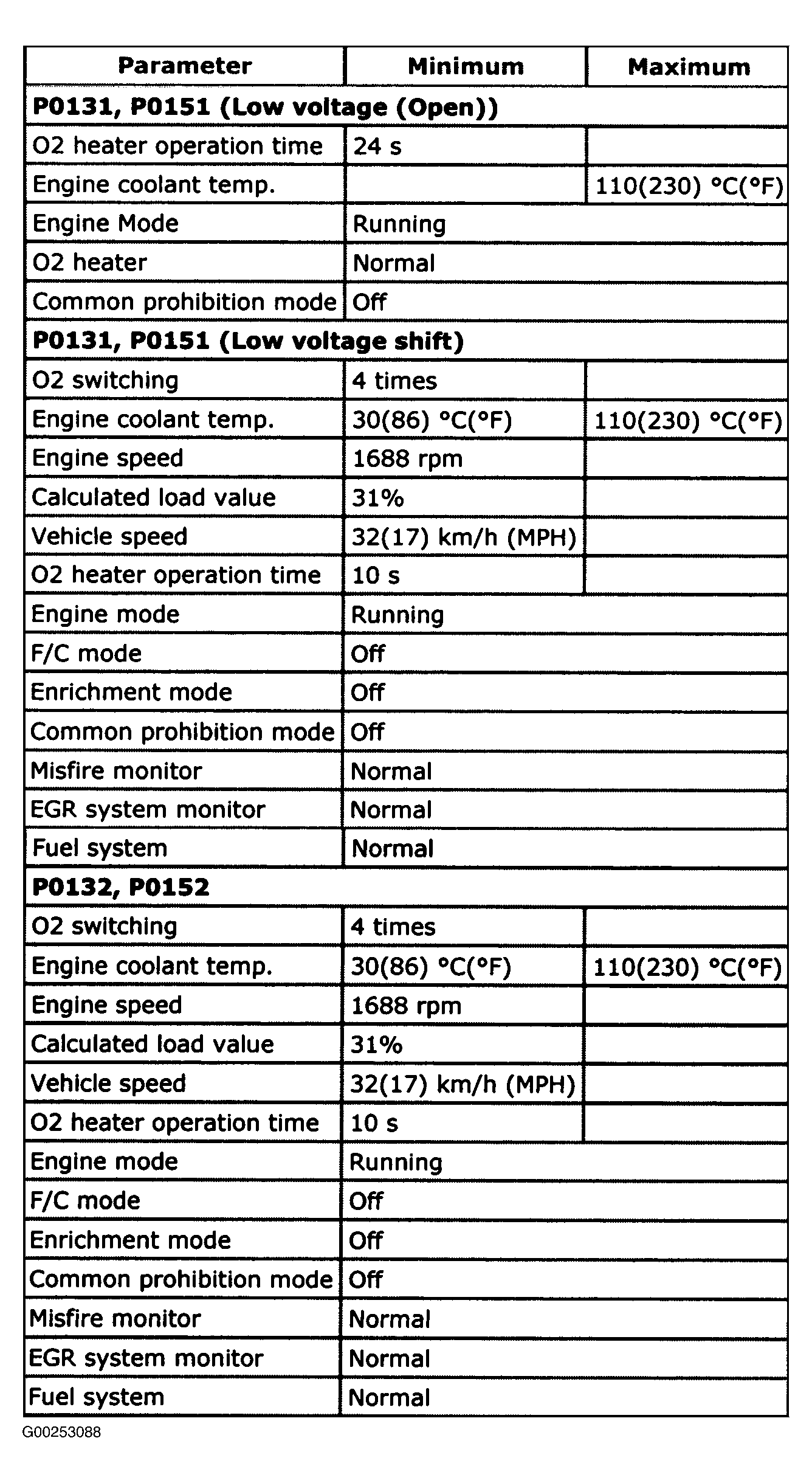

Fig 2: Primary HO2S Circuit Monitor Enable Conditions
G00253088Courtesy of SUZUKI OF AMERICA CORP.

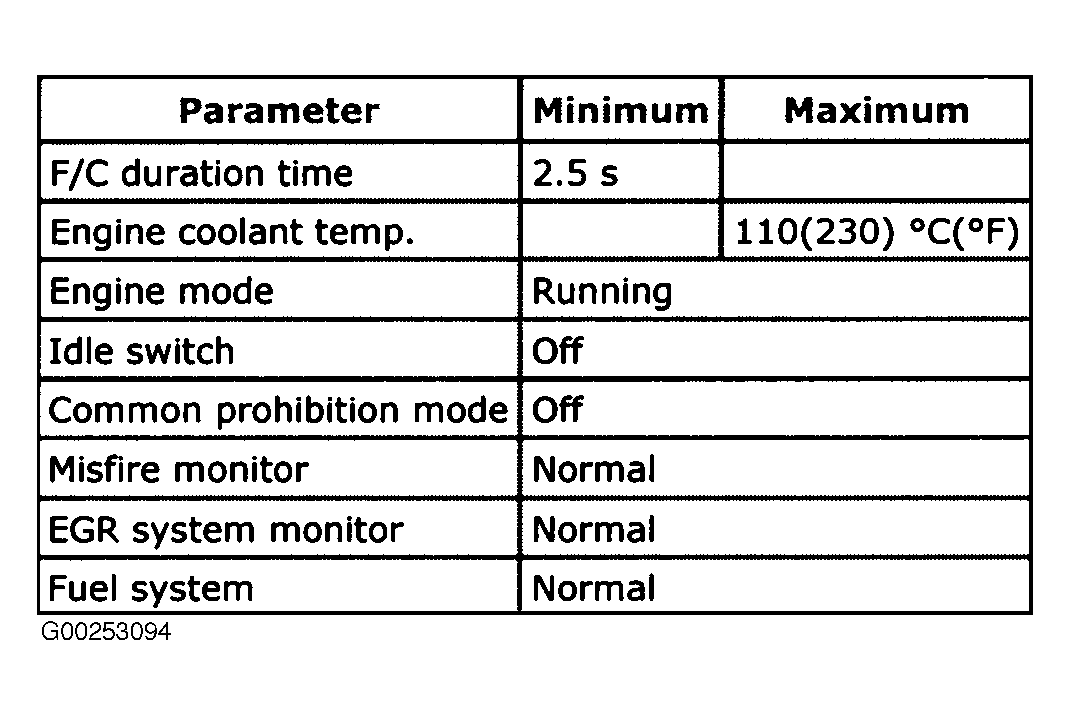

Fig 3: Secondary HO2S Monitor Enable Conditions
G00253094Courtesy of SUZUKI OF AMERICA CORP.

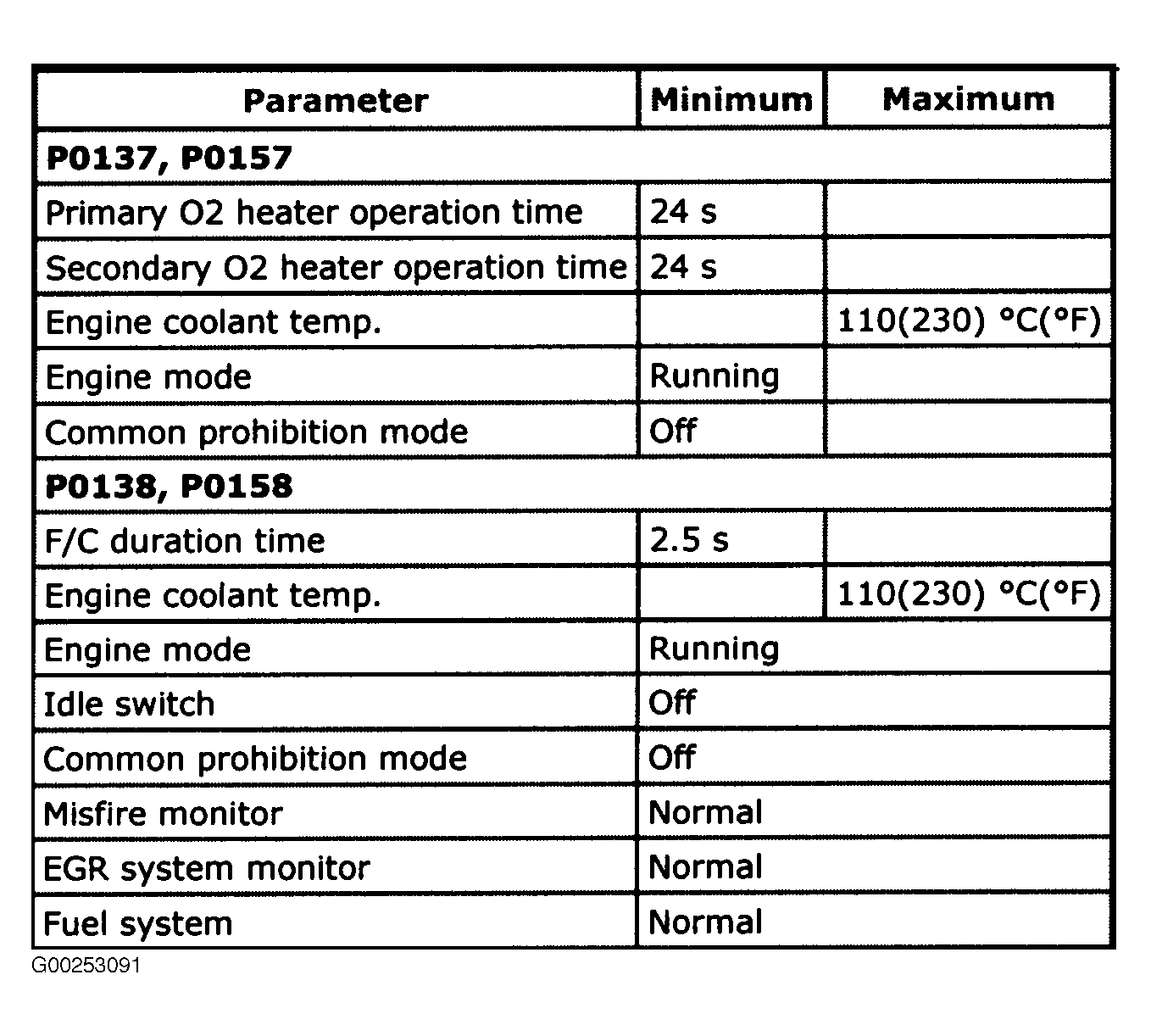

Fig 4: Secondary HO2S Circuit Monitor Enable Conditions
G00253091Courtesy of SUZUKI OF AMERICA CORP.
