Oxygen Sensor Monitor: Operation

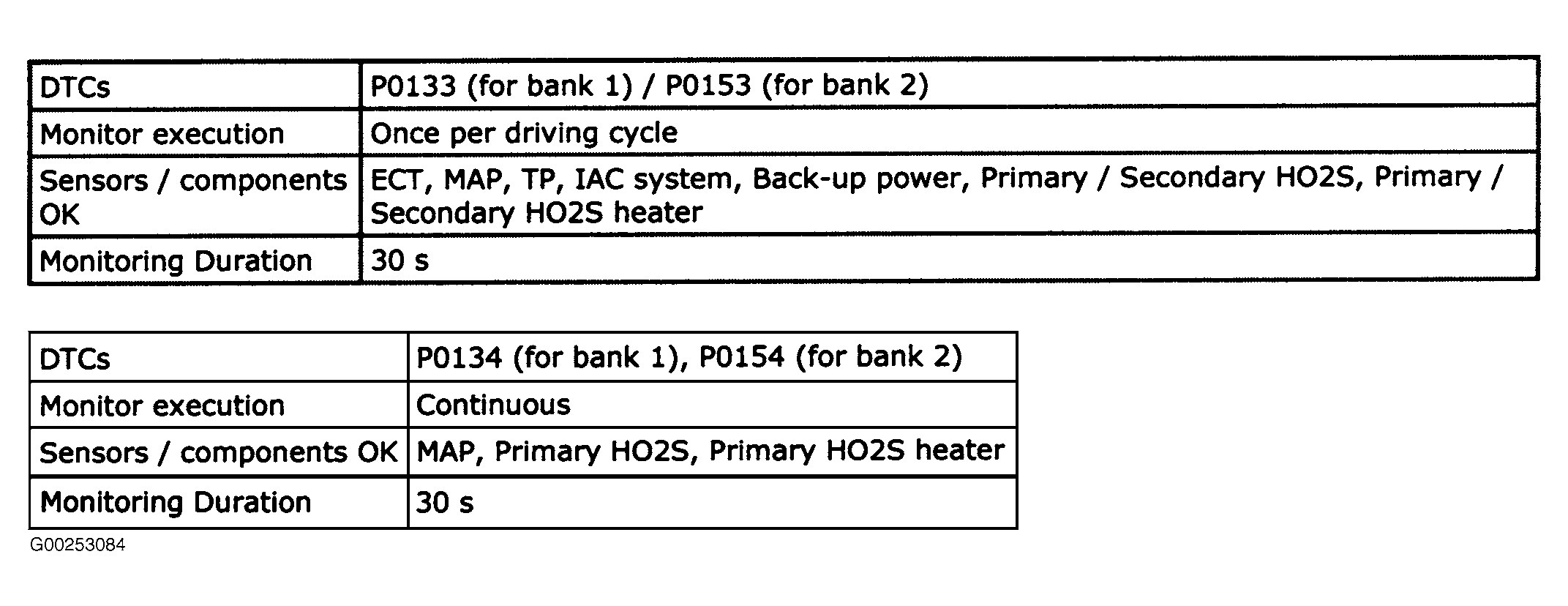

Fig 1: Primary HO2S Monitor Operation
G00253084Courtesy of SUZUKI OF AMERICA CORP.

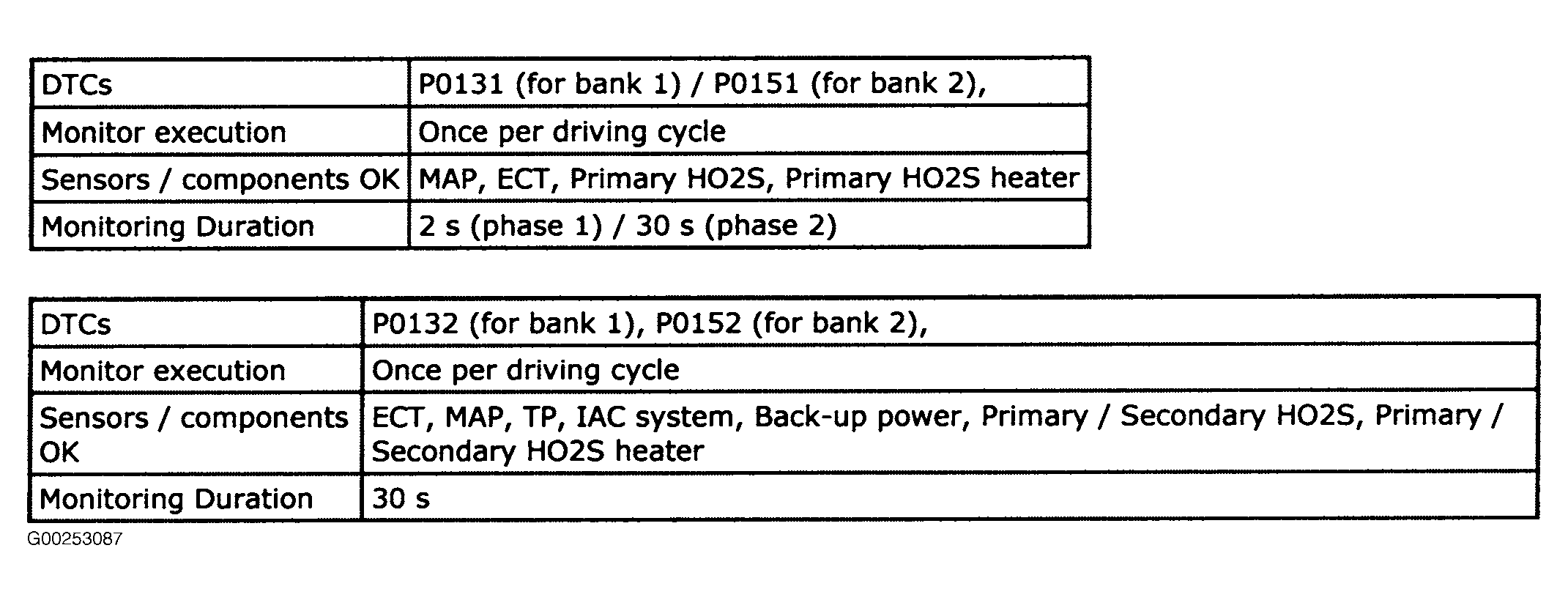

Fig 2: Primary HO2S Circuit Monitor Operation
G00253087Courtesy of SUZUKI OF AMERICA CORP.

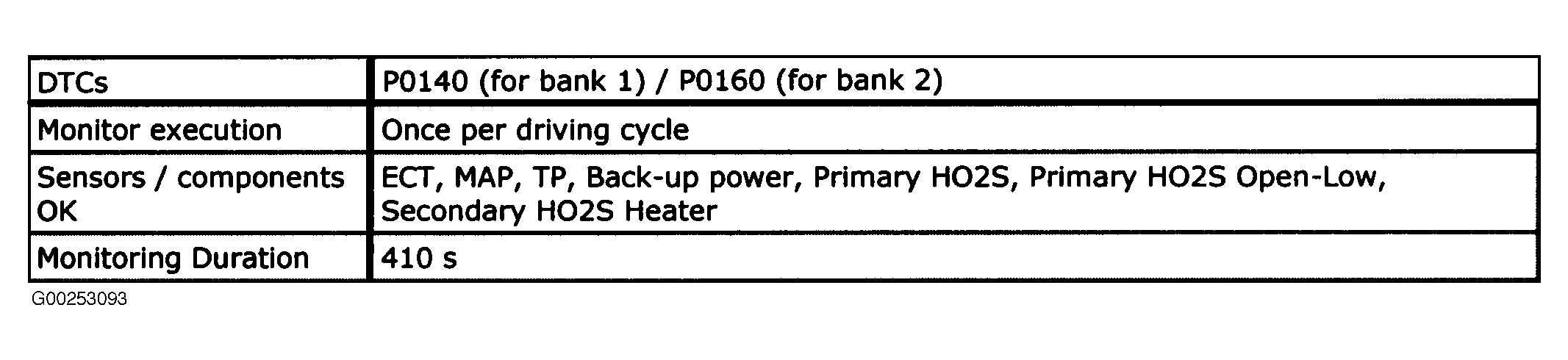

Fig 3: Secondary HO2S Monitor Operation
G00253093Courtesy of SUZUKI OF AMERICA CORP.

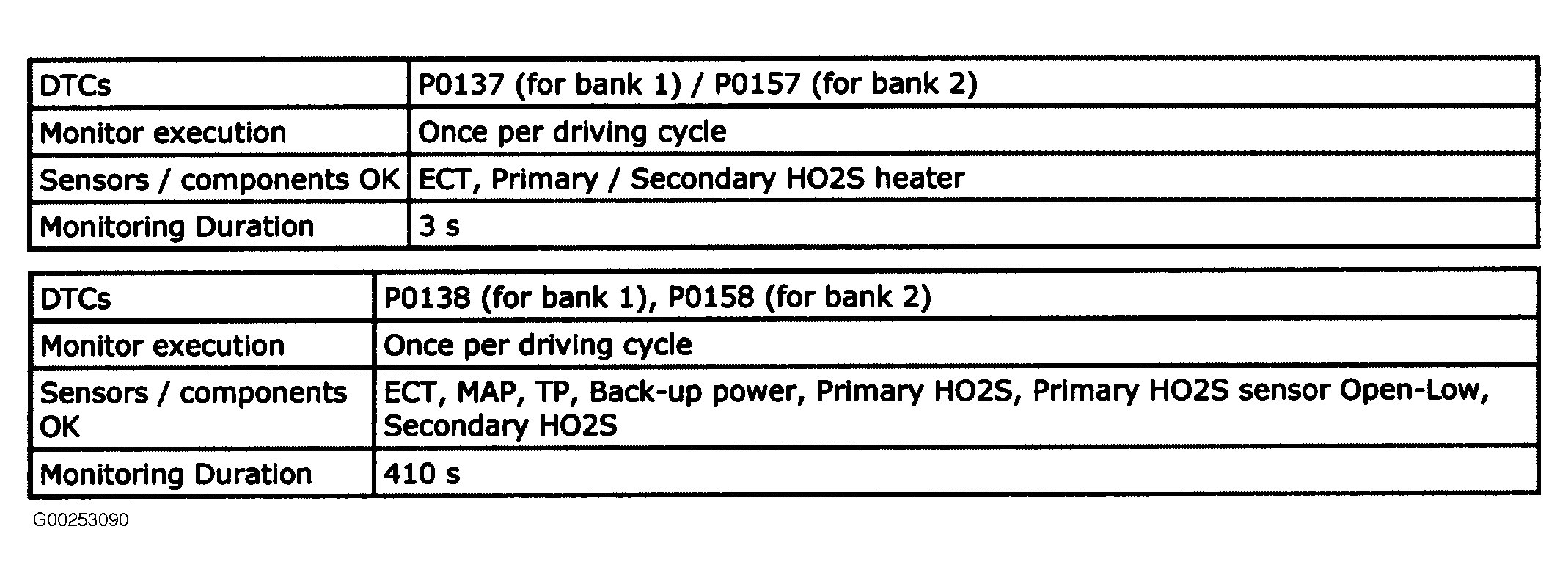

Fig 4: Secondary HO2S Circuit Monitor Operation
G00253090Courtesy of SUZUKI OF AMERICA CORP.
