Transfer Components
Transfer Components

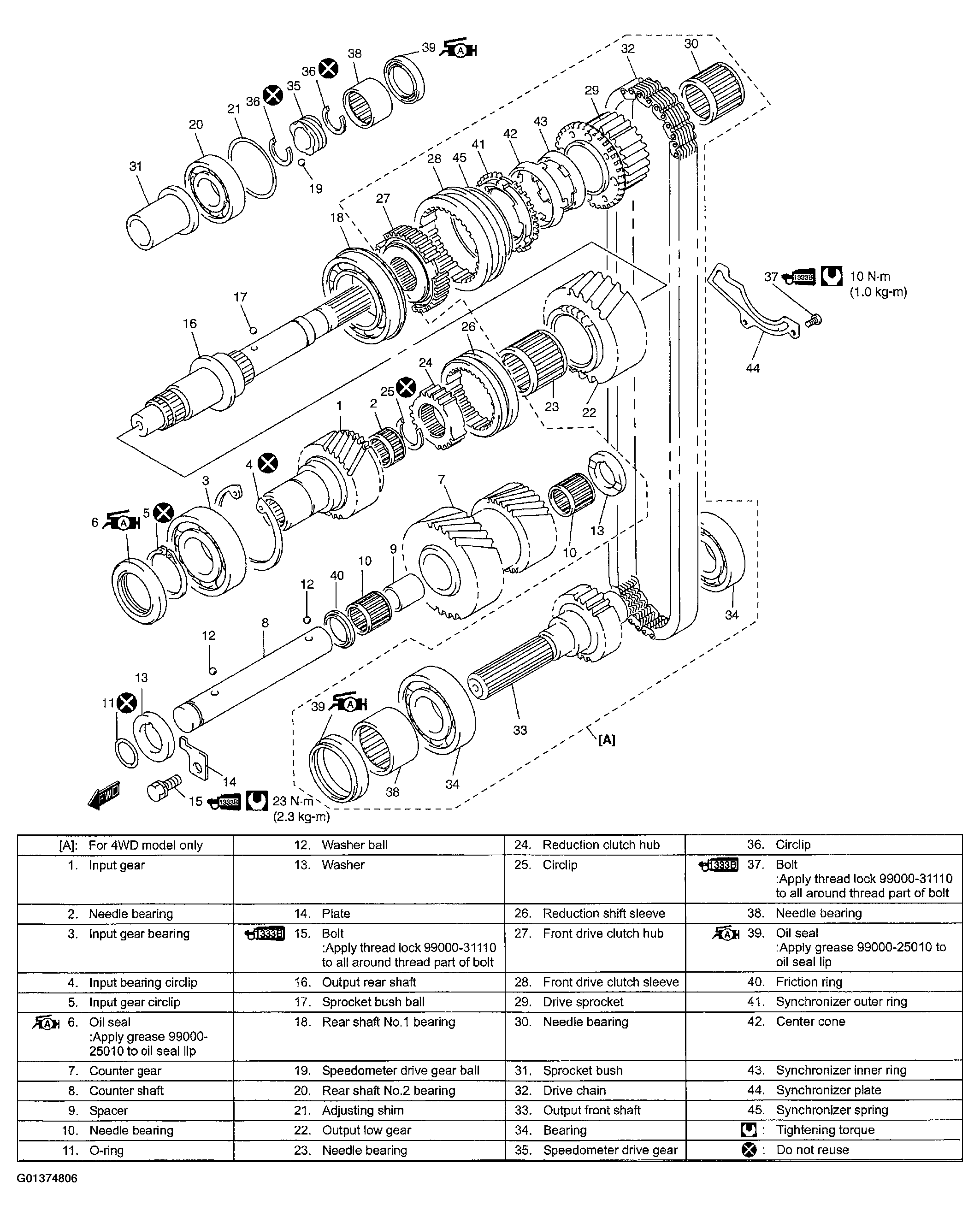

Fig 1: Exploded View Of Transfer Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
