Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references

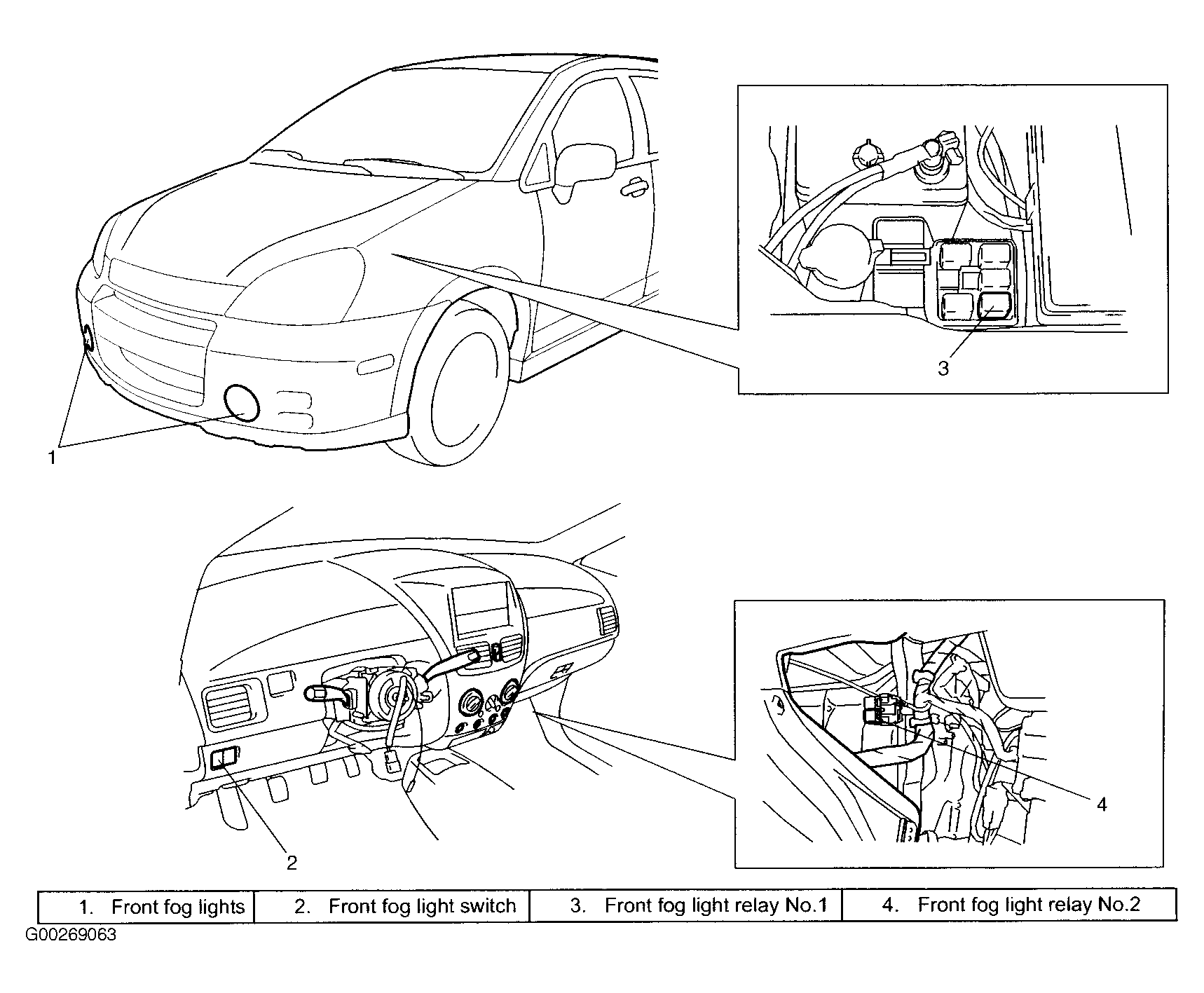

Fig 1: Vehicle Overview

Courtesy of SUZUKI OF AMERICA CORP.

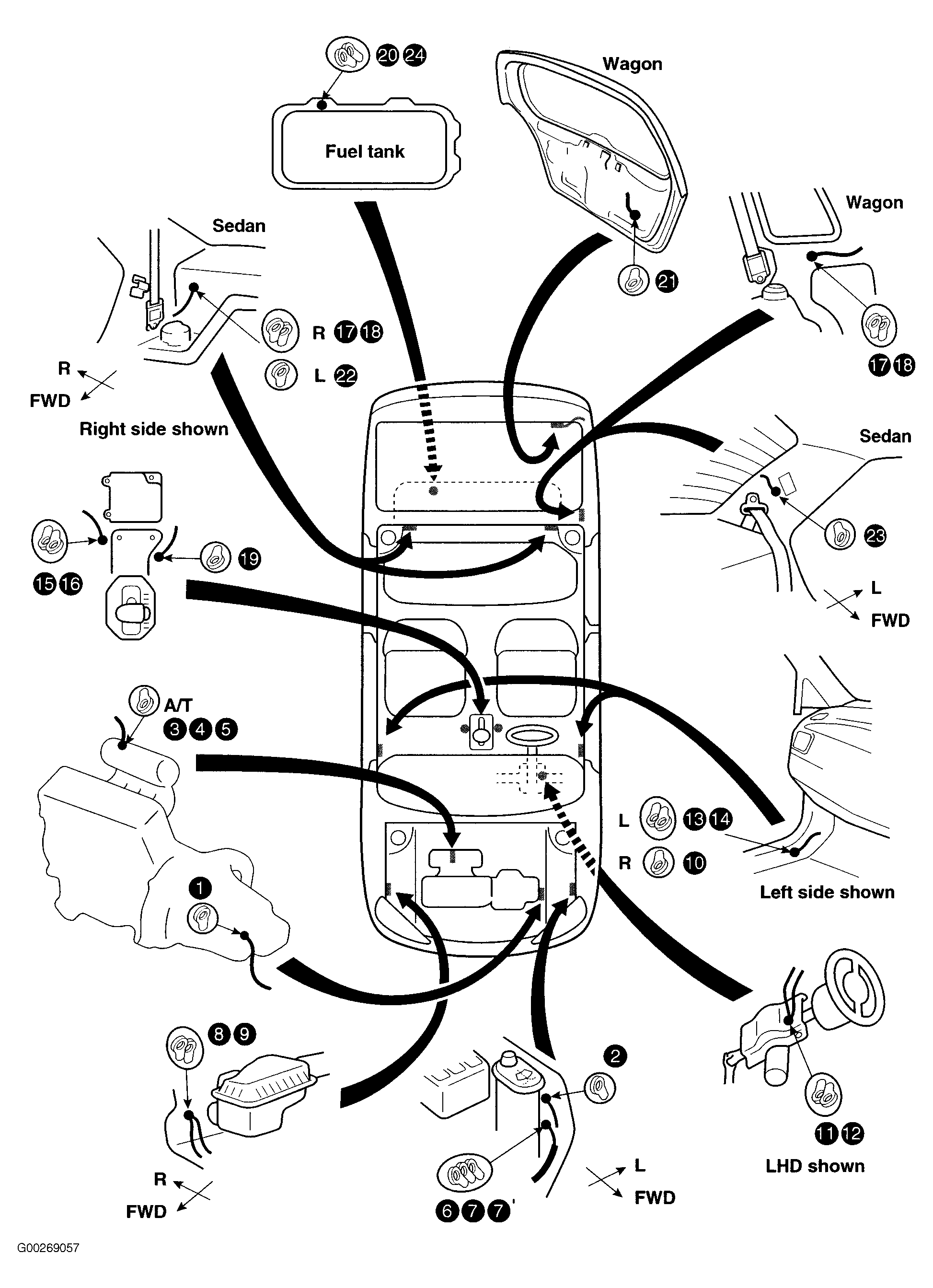

Fig 2: Vehicle Overview

Courtesy of SUZUKI OF AMERICA CORP.

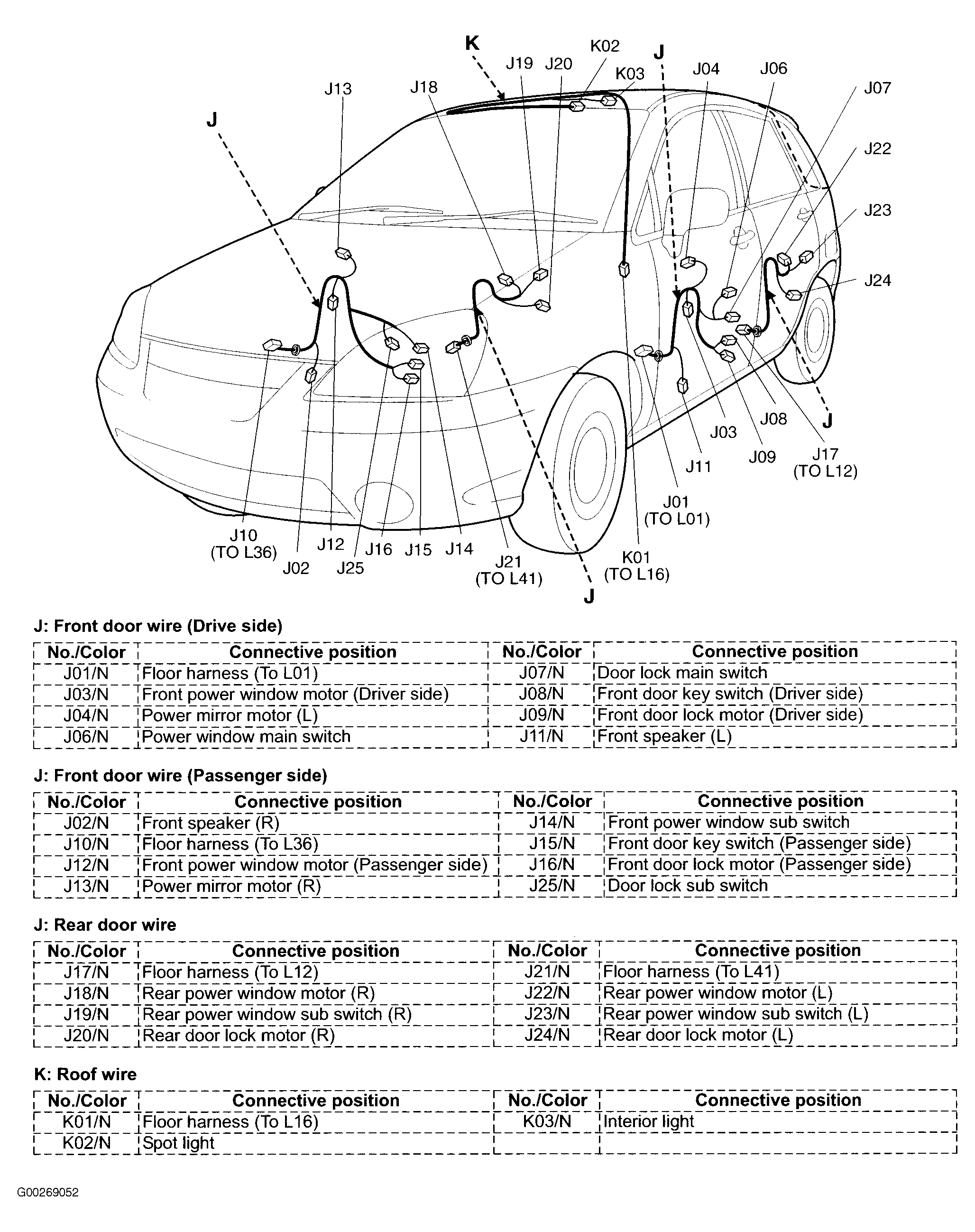

Fig 3: Vehicle Overview

Courtesy of SUZUKI OF AMERICA CORP.

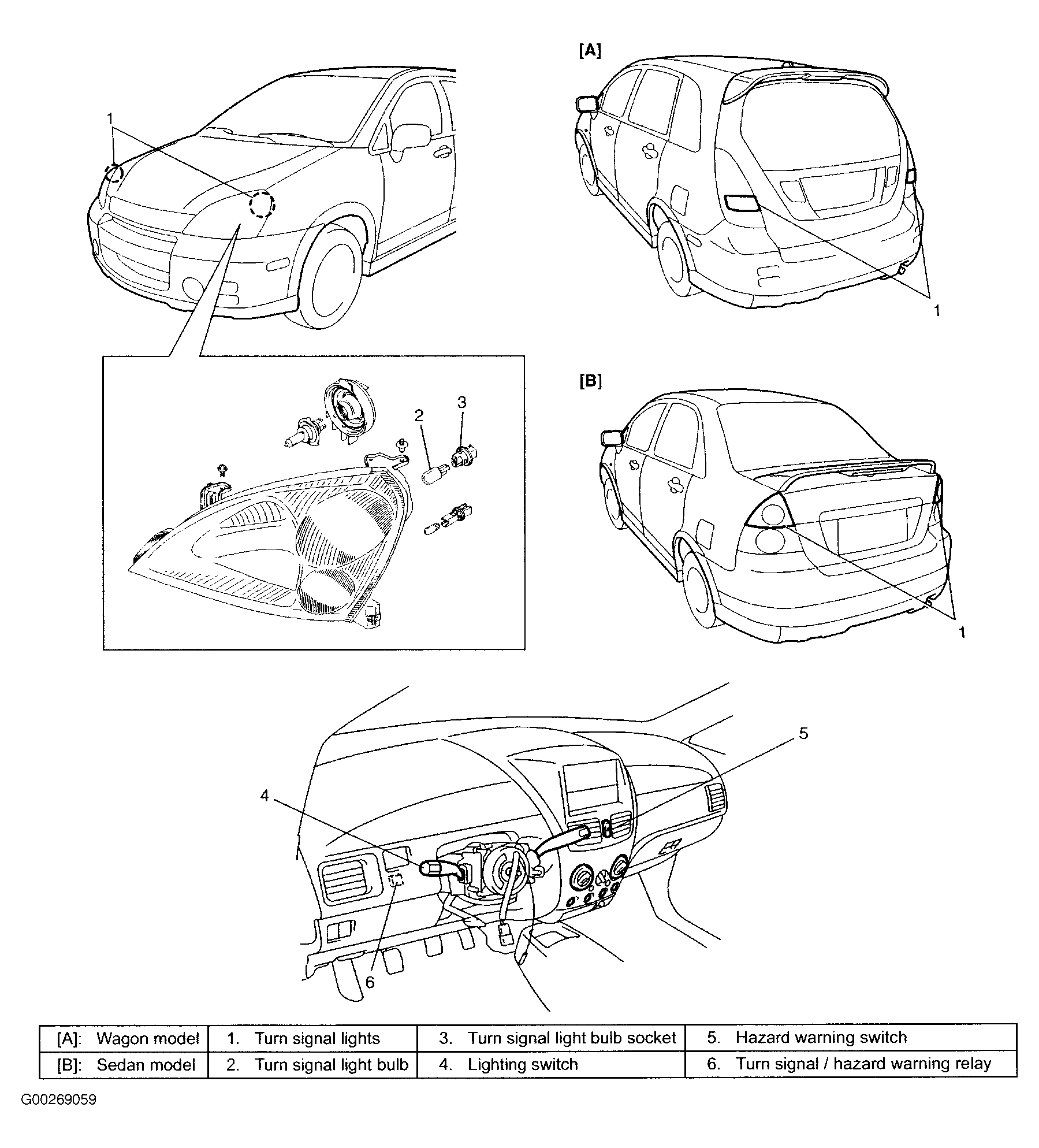

Fig 4: Vehicle Overview

Courtesy of SUZUKI OF AMERICA CORP.

Fig 5: Right Side Of Vehicle (Wagon)

Courtesy of SUZUKI OF AMERICA CORP.

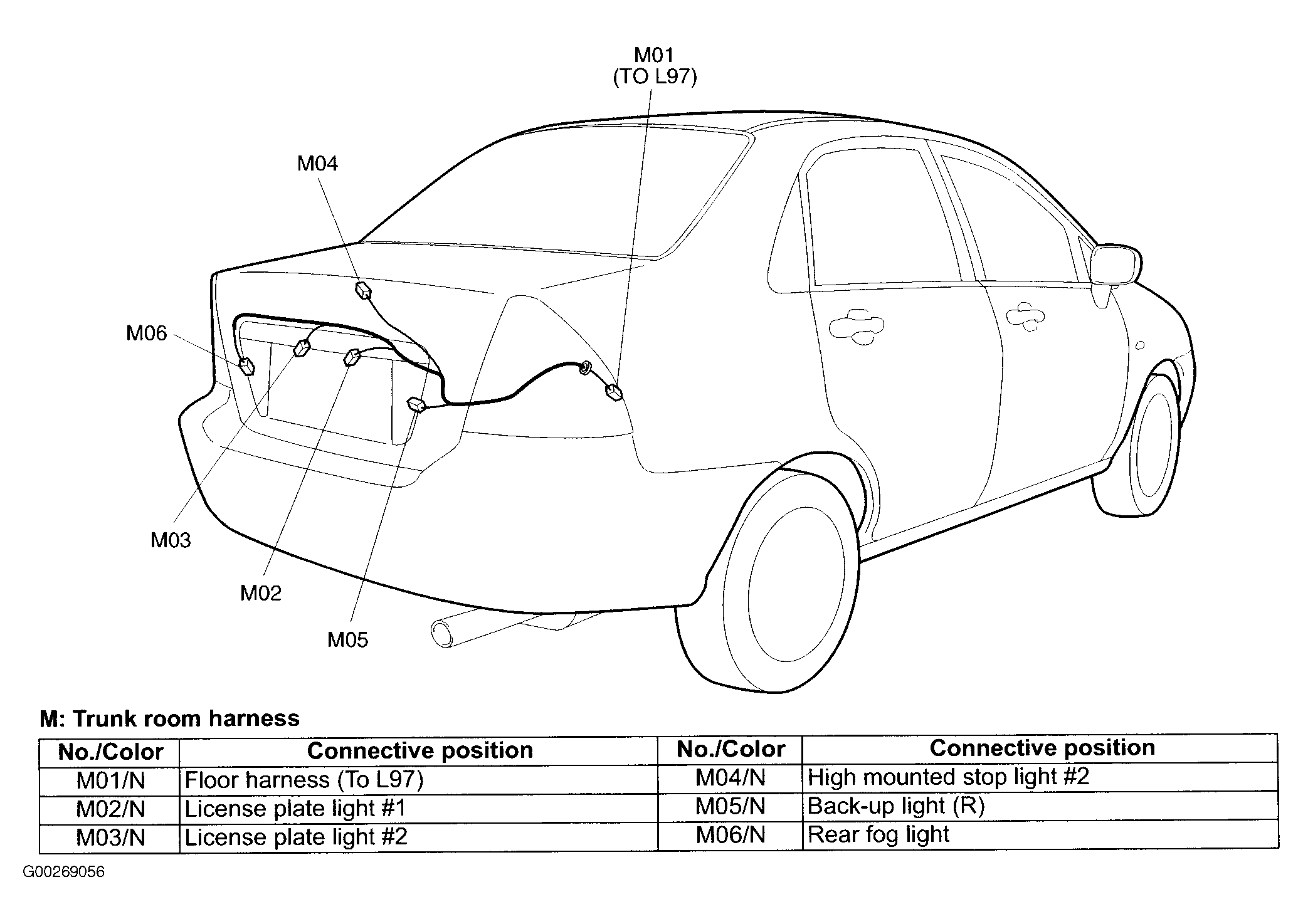

Fig 6: Vehicle Overview (Sedan)

Courtesy of SUZUKI OF AMERICA CORP.

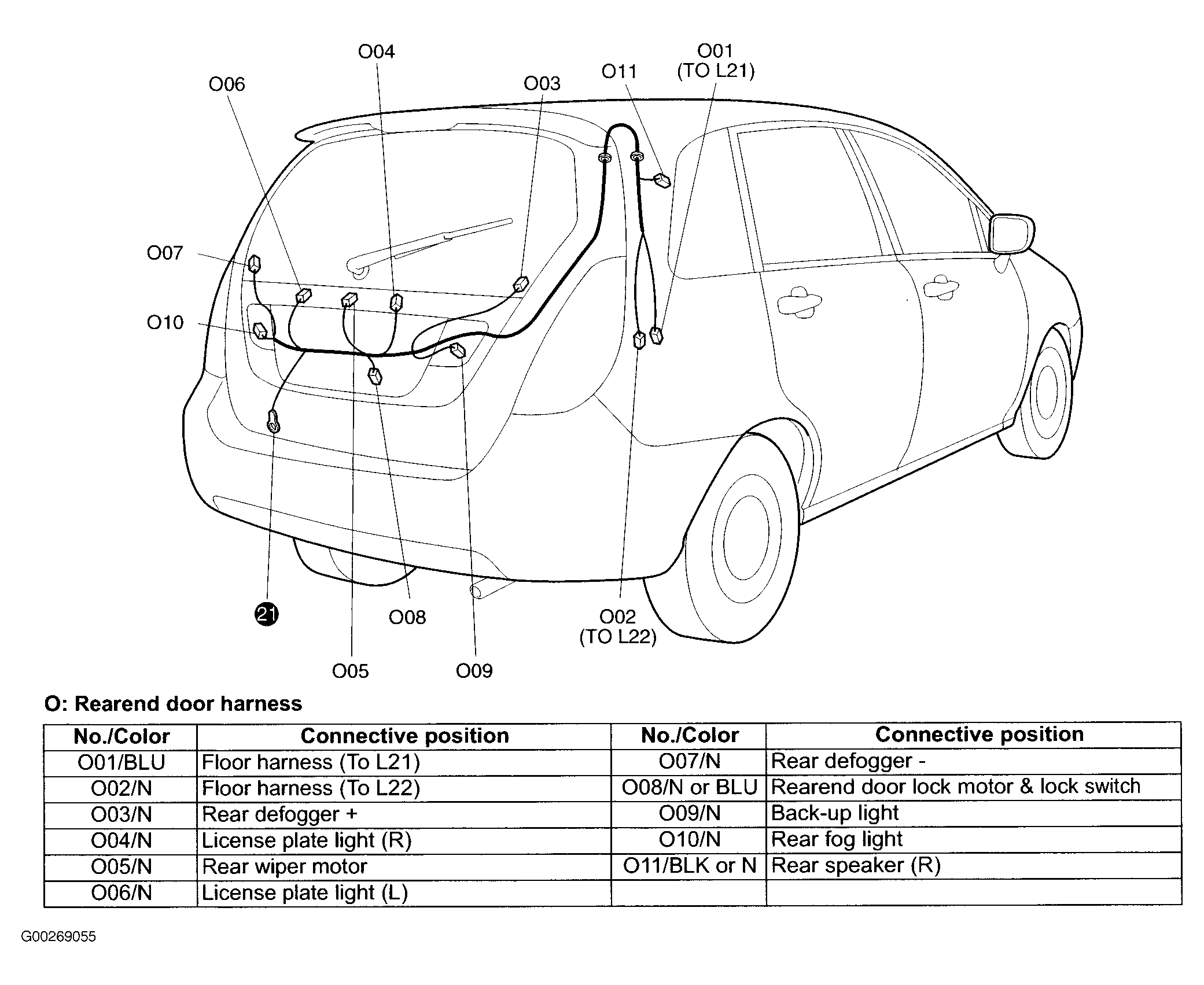

Fig 7: Vehicle Overview (Wagon)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 8: Dash

Courtesy of SUZUKI OF AMERICA CORP.

Fig 9: Dash

Courtesy of SUZUKI OF AMERICA CORP.

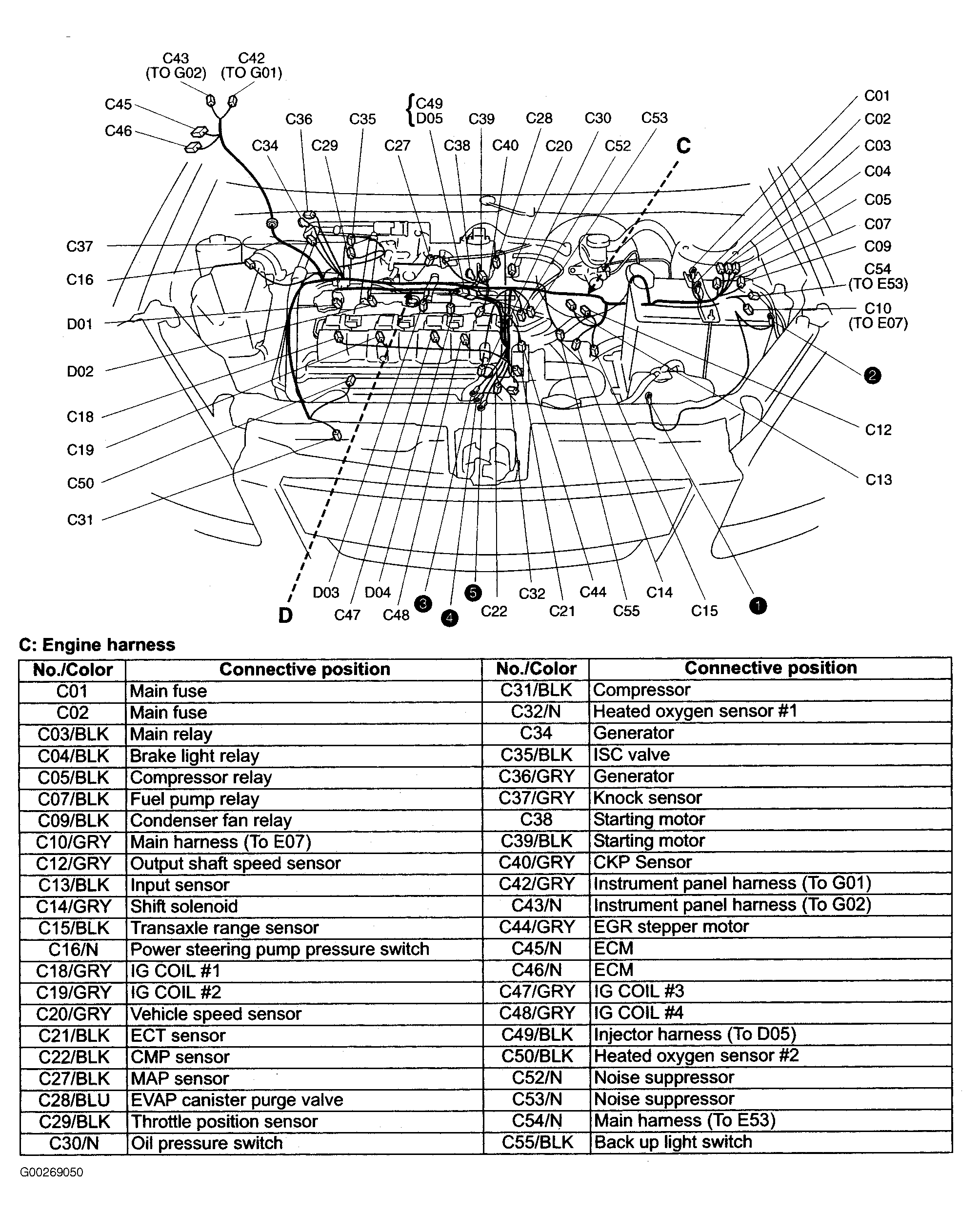

Fig 10: Engine Compartment

Courtesy of SUZUKI OF AMERICA CORP.

Fig 11: Engine Compartment

Courtesy of SUZUKI OF AMERICA CORP.

Fig 12: Main Fuse Box

Courtesy of SUZUKI OF AMERICA CORP.

Fig 13: Supplementary Fuse Box (No. 1)

Courtesy of SUZUKI OF AMERICA CORP.

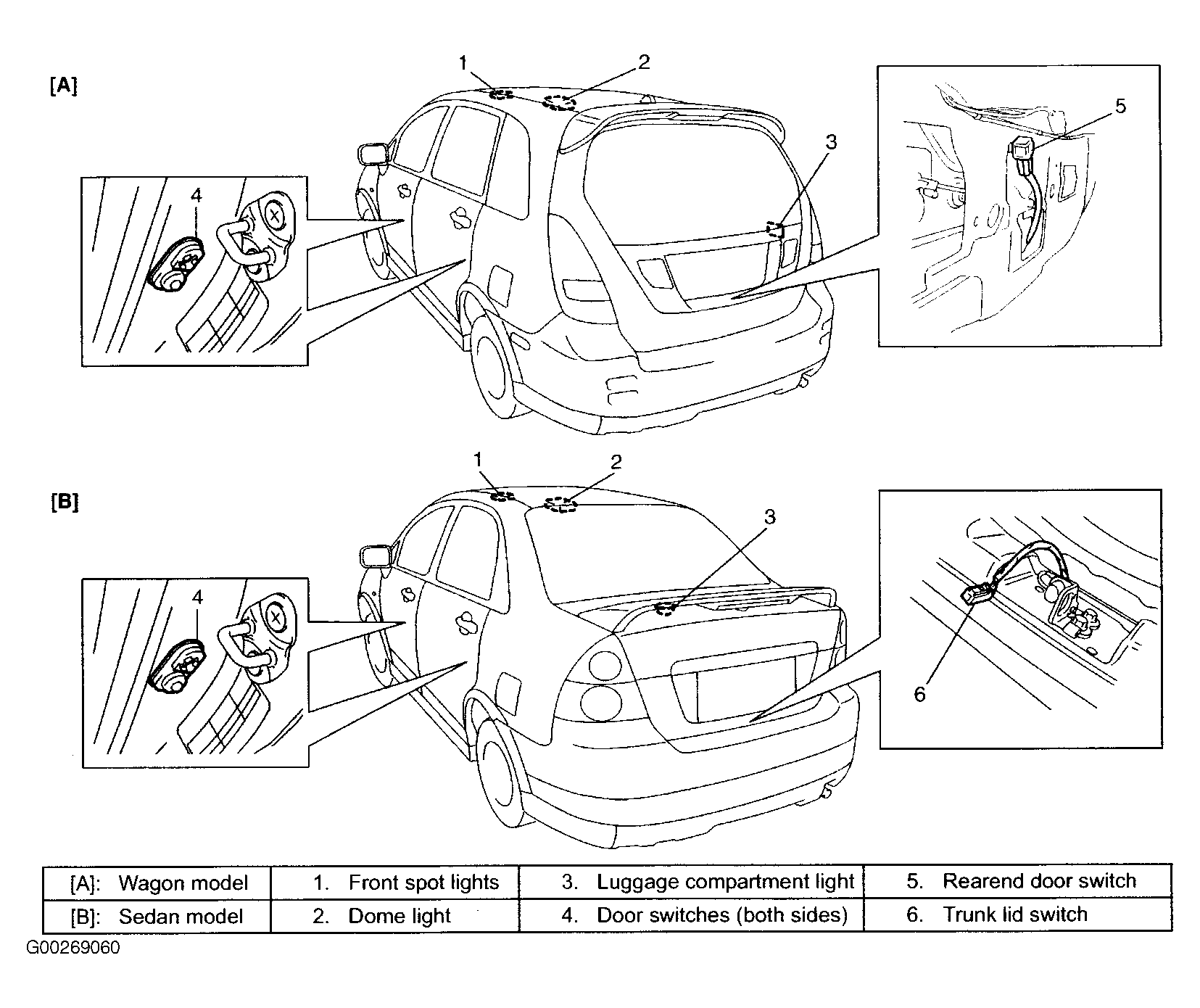

Fig 14: Vehicle Overview

Courtesy of SUZUKI OF AMERICA CORP.

Fig 15: Vehicle Overview

Courtesy of SUZUKI OF AMERICA CORP.
