Home >> Suzuki >> 2004 >> Aerio S, Automatic >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel System >> Specifications >> Tightening Torque Specifications

Tightening Torque Specifications

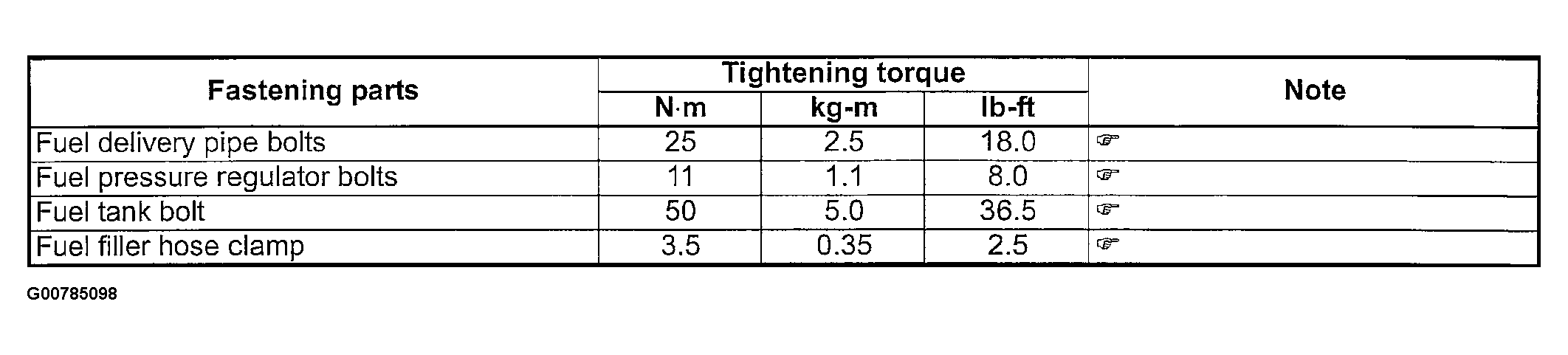

Fig 1: Tightening Torque Specifications (1 of 2)
G00785098Courtesy of SUZUKI OF AMERICA CORP.

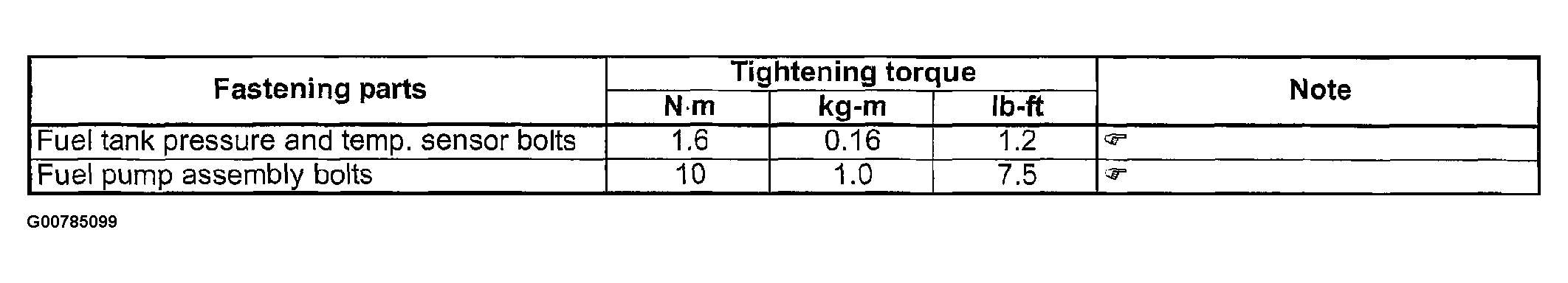

Fig 2: Tightening Torque Specifications (2 of 2)
G00785099Courtesy of SUZUKI OF AMERICA CORP.
NOTE:
  1. The specified tightening torque is described in the following.
