Generators & Regulators: Overhaul: Generator: Assembly

  1. Install the new ring in the slip ring end frame.

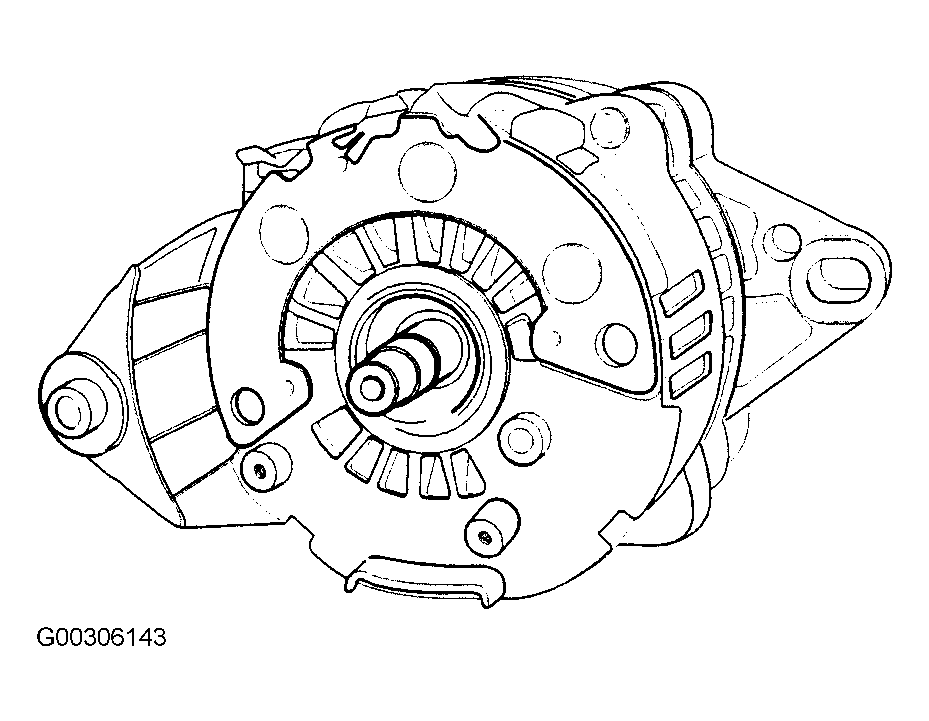

  2. Install the stator. See Figure .
  3. Position the rotor assembly shaft with the drive end frame in the slip ring end assembly until the gap between the outer lace and the end frame casting is .075" (1.9 mm).
  4. Install the generator through bolts.
  5. Position the fan, the collars, and the pulley on the rotor shaft and secure with the nut.
  6. Weld the brush holder terminal to the regulator terminal, if removed.
  7. Fix the brush holder with the retainer pin, and weld the regulator/brush holder assembled terminal to the rectifier terminal.
  8. Apply silicone grease between the bridge and the end frame for radiation purposes.
  9. Fasten the screws holding the rectifier regulator/brush holder assembly to the end frame.

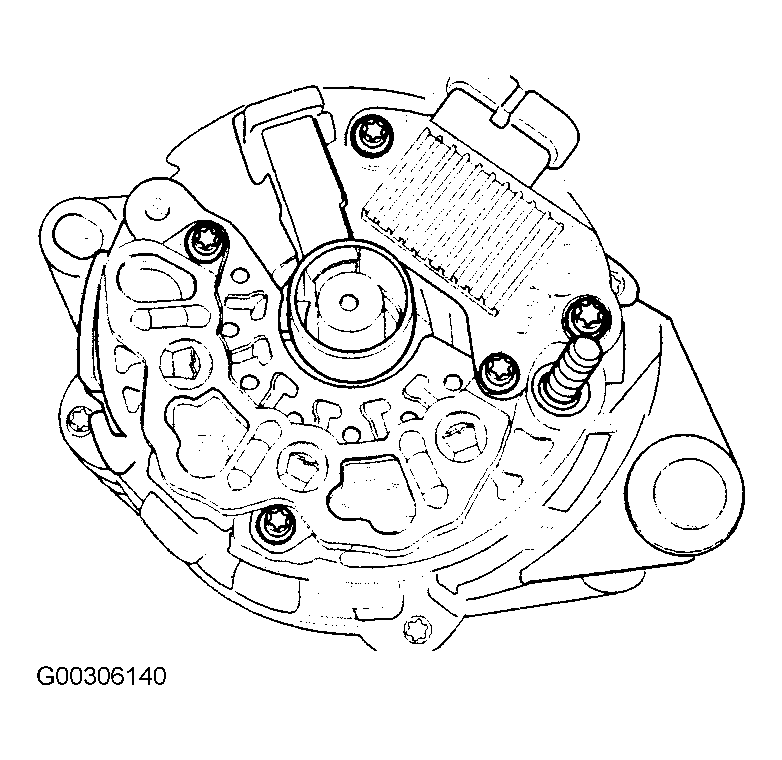

  10. Punch the new baffle with the pin into the brush. See Figure .
  11. Weld the connectors of the rectifier bridge.
