Toe-In Adjustment: Procedure: Rear

  1. Loosen the nuts on the parallel link-to-crossmember bolts. Rotate the parallel link adjustment bolts until the preferred rear toe-in specification is obtained. See Fig 1 and WHEEL ALIGNMENT SPECIFICATIONS  .
  2. Hold the parallel link adjustment bolts and tighten the parallel link-to-crossmember nuts to specification. See TORQUE SPECIFICATIONS  .

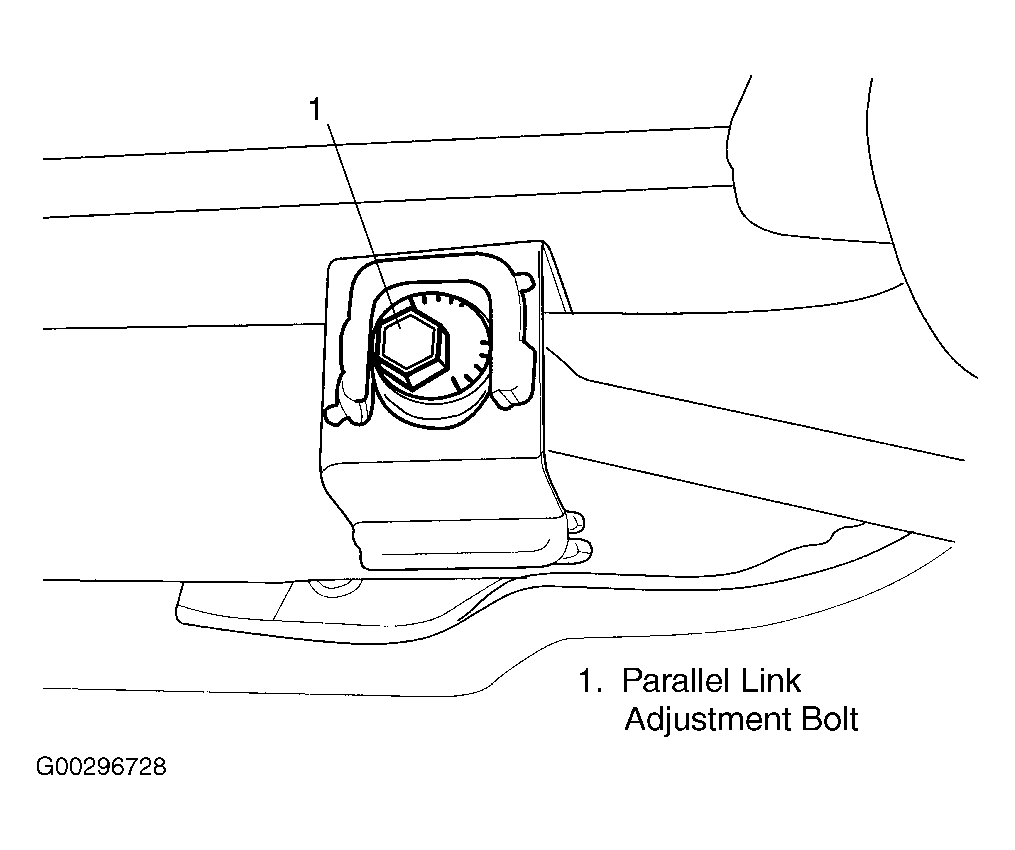

Fig 1: Adjusting Rear Toe-In
G00296728Courtesy of SUZUKI OF AMERICA CORP.
