Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Antilock Brake System
>>
Component Locator
>>
ABS Component Views
ABS Component Views

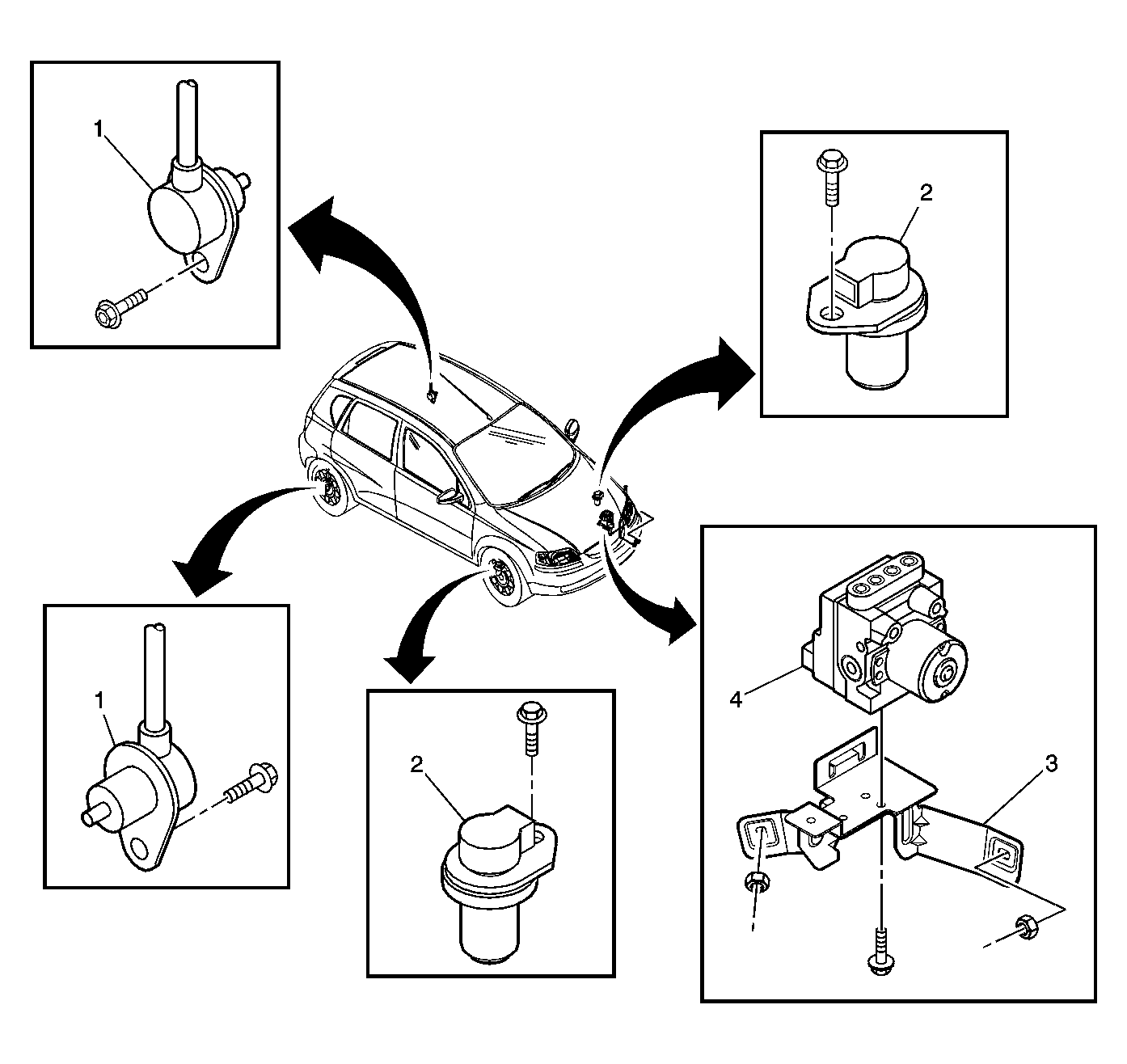

Fig 1: ABS Component Views
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Rear Wheel Speed Sensor - Right and Left
2
Front Wheel Speed Sensor - Right and Left
3
Mounting Bracket
4
Electronic Brake Control Module (EBCM) and Brake Pressure Modulator Valve
