Removal Procedure

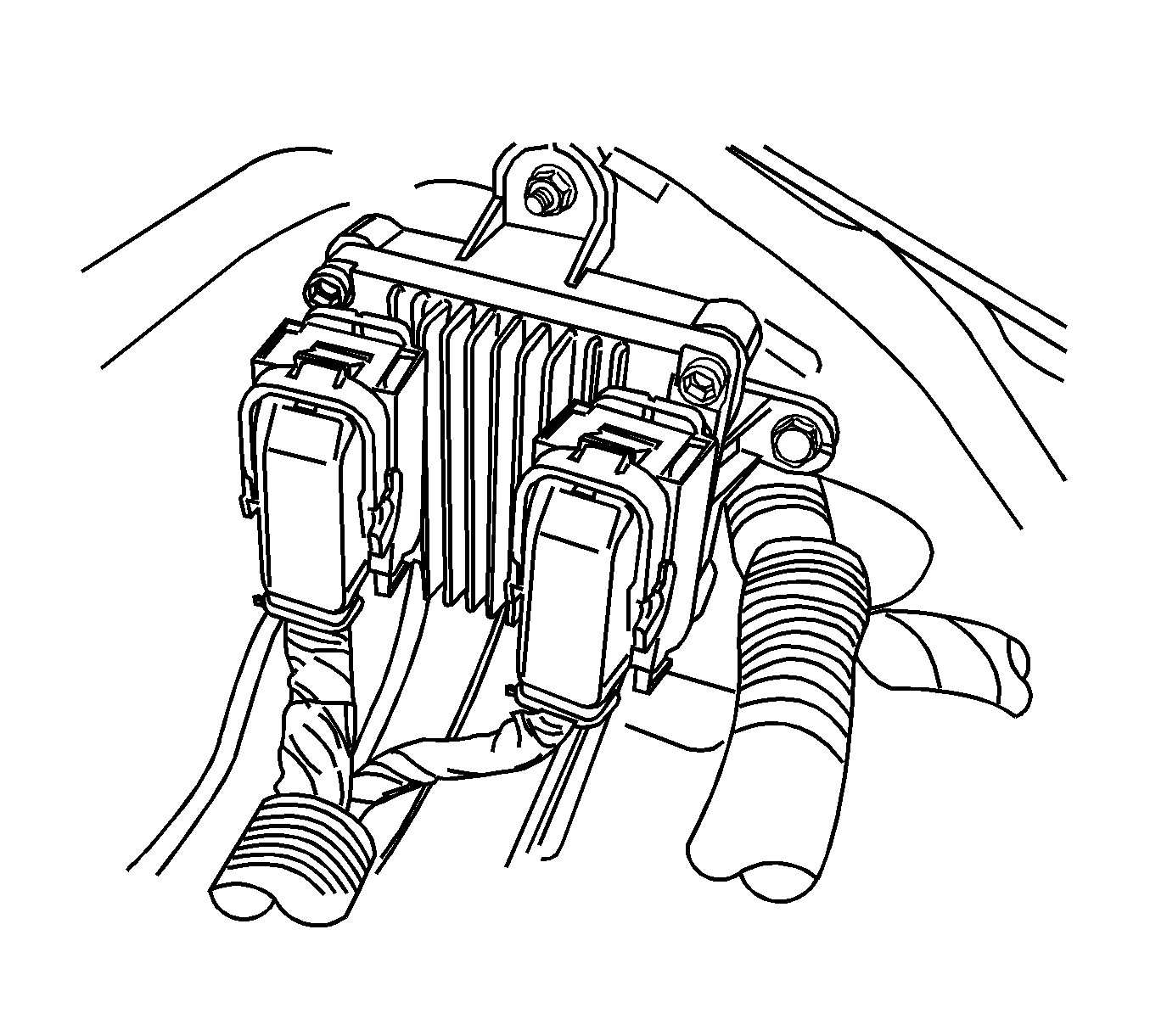

    Fig 1: View of Engine Control Module Connectors
    GM1241940Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect the negative battery cable.
  2. Disconnect the engine control module (ECM) connectors.
  3. Remove the ECM retaining bolts.
  4. Remove the ECM from the ECM mount.
