Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

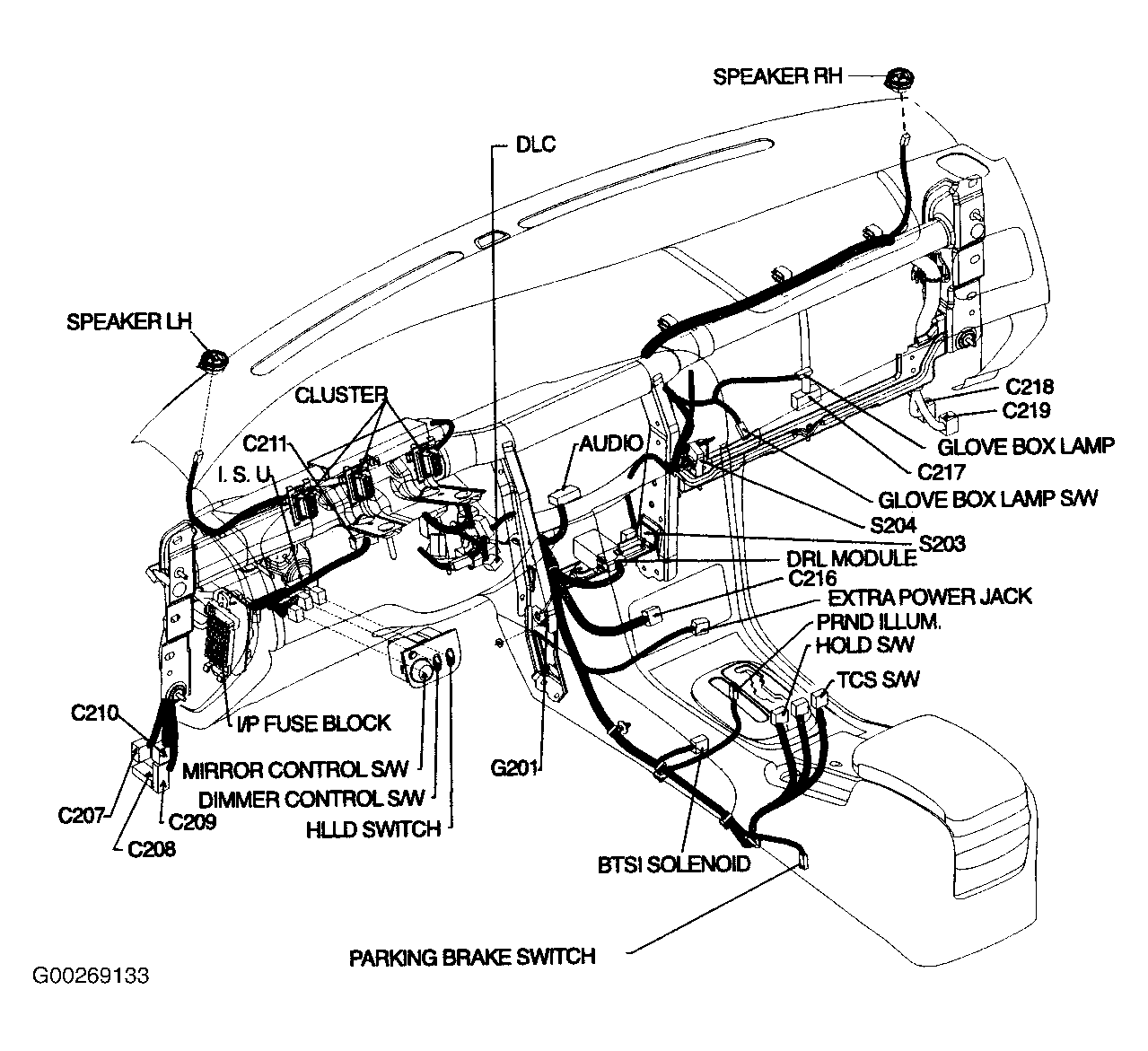

| DRL Module | Behind lower center of dash. See Figure . |
| EBCM (ABS Module) | Left rear corner of engine compartment. See Figure . |
| Engine Control Module (ECM) | Left front of engine compartment. See Figure . |
| ISU (Intelligent Switching Unit) | Lower left side of dash. See Figure . |
| SDM (Sensing & Diagnostic Module) | Under center console. See Figure . |
| Sun Roof Unit | Front center of headliner. See Figure . |
| TCM (Transmission Control Module) | Behind left side of dash. See Figure . |
